product name

Troy-Bilt 2001 PTO GENERATOR PTO Generator

Model: 2001 PTO GENERATOR

Save
 Part Not Listed?Part Not Listed?
product name

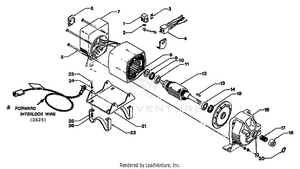

GENERATOR PARTS

...
...
xx
WIRE-BYPASS W/TAG MTD-2625
...
1
HOLDER MTD-G269367
...
2
D SPRING-BRUSH NLA @ DEPL MTD-G238150
...
3
SHIM-BRUSH HOLDER MTD-G238248
...
4
RELAY MTD-GA-239197
...
5
BOLT MTD-G238213
...
6
REGULATOR MTD-G287978
...
7
BRKT MTD-G238904
...
8
STATOR MTD-G238290
...
9
OBS-WASHER 1.875X1.00 MTD-GX-25-106
...
10
RING-TOLERANCE MTD-G239198
...
11
BEARING-BALL MTD-GX-758-5
...
12
D ROTOR MTD-GA-239365
...
13
Key, 3/16 sq. x 1 MTD-GW-9301
...
14
BEARING-BALL MTD-GX-758-1
...
15
RING-TOLERANCE MTD-G238211
...
16
ADAPTER MTD-G239368
...
17
Spring-dog clutch MTD-GW-2127
...
18
KIT-CLUTCH DOGS TILLER MTD-2120-1
...
19
SLEEVE MTD-2125
...
20
Retaining Ring-external MTD-716-0101
...
21
BRKT-MOUNTING GENERATOR MTD-G239200
...
22
BRKT-LEG MOUNTING MTD-2280
...
23
SCR-HHC 5/16-18X.75 GR 5 ZP MTD-9703
...
24
WASHER-FLAT 5/16 SAE MTD-9902
...
25
WASHER-LK .312 ZP MTD-9912
...
26
NUT-HEX 5/16-18 ZP MTD-9801
...
xx
DECAL-OPER INST MTD-2282
...
xx
DECAL-T/B GENERATOR MTD-2281

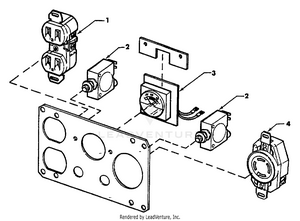

RECEPTACLE PANEL PARTS

...
...
1
RECEPTACLE-120 VOLTS MTD-G238581
...
2
BREAKER-CIRCUIT MTD-G238579
...
3
METER MTD-G239199
...
4
RECEPTACLE MTD-G238785
...
...
...
