Troy-Bilt 1X70NT 196cc Engine Troy-Bilt OHV Engine

Model: 1X70NT 196cc Engine

Save Part Not Listed?
product name

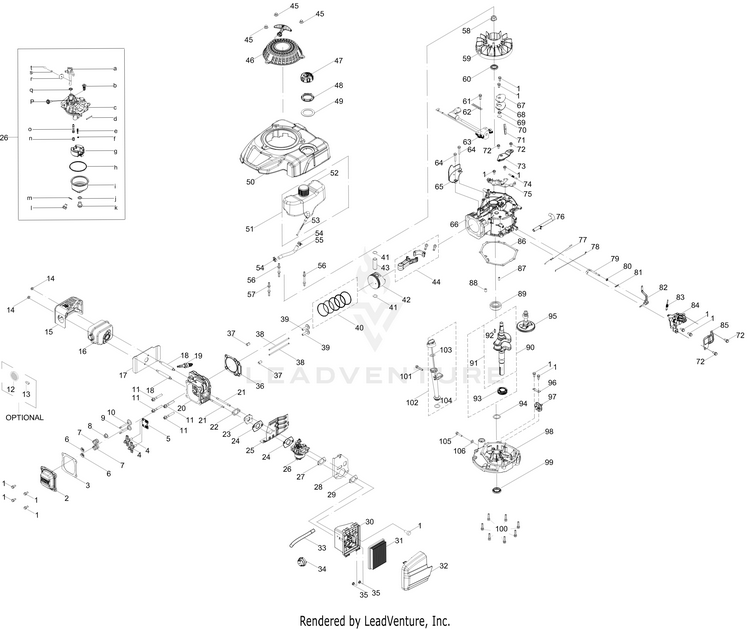

1X70NT General Assembly

...
...
1
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
2
VALVE COVER MTD-951-14609A
...
3
VALVE COVER GASKET MTD-751P18586A
...
4
ROCKER ARM MTD-951-11606A
...
5
PUSH ROD GUIDE MTD-951-16027
...
6
INTAKE VALVE SPRING RETAINER MTD-751P12000A
...
7
VALVE SPRING MTD-951-12116
...
8
INTAKE VALVE SEAL MTD-921-04237A
...
9
EXHAUST VALVE MTD-951-15669A
...
10
INTAKE VALVE MTD-751P14099A
...
11
SCREW M8 x 54 GR10 MTD-710-06200
...
12
SPARK ARRESTOR MTD-951-10351A
...
13
SCREW M3.5 x 9.5 MTD-710-04983
...
14
HEX NUT MTD-712-05015
...
15
MUFFLER SHIELD MTD-951-15566
...
16
MUFFLER MTD-951-10403
...
17
MUFFLER GASKET MTD-751P19610
...
18
STUD M6-1 x 95 MTD-710-05094
...
19
SPARK PLUG MTD-951-14437
...
19
GENUINE FACTORY PARTS® Walk Spark Plug 951-14437 Retail Packaged Part MTD-490-250-F014
...
20
CYLINDER HEAD MTD-951-16028
...
21
CARBURETOR STUD-M6 x 87 MTD-951-14826
...
22
MUFFLER GASKET MTD-751P18910A
...
23
CARBURETOR INSULATOR MTD-951-15671A
...
24
CARBURETOR GASKET MTD-721P05941A
...
25
HEAT SHIELD MTD-751P18913A
...
26
CARBURETOR MTD-651P07415
...
27
AIR FILTER BRACKET GASKET MTD-721P05942A
...
28
AIR FILTER BRACKET MTD-908-05251
...
29
AIR FILTER BASE GASKET MTD-951-14419A
...
30
AIR FILTER BASE MTD-731P20531
...
31
AIR FILTER MTD-951-15245
...
31
GENUINE FACTORY PARTS® Air Filter (Square Paper Panel) 159cc& 196cc 951-15245 Retail Packaged Part MTD-490-200-F065
...
32
AIR FILTER COVER MTD-931-13119A
...
33
PRIMER HOSE MTD-735P05218
...
34
PRIMER ASSEMBLY MTD-951-05177A
...
35
HEX NUT MTD-712-05015
...
36
CYLINDER HEAD GASKET MTD-921-04257
...
37
DOWEL PIN MTD-715-04108
...
38
PUSH ROD MTD-951-16026
...
39
TAPPET MTD-951-14432A
...
40
PISTON RING SET MTD-951-14317A
...
41
PISTON PIN SNAP RING MTD-951-11632
...
42
PISTON MTD-751P19648
...
43
PISTON PIN MTD-751P11633A
...
44
CONNECTING ROD ASSEMBLY MTD-951-05539
...
45
ACORN NUT M6-1 MTD-712-04276A
...
46
RECOIL STARTER ASSEMBLY MTD-951-05360A
...
47
FUEL CAP ASSEMBLY MTD-651P05182
...
48
FUEL TANK NUT MTD-931-10290A
...
49
FUEL TANK GROMMET MTD-951-14406A
...
50
ENGINE SHROUD MTD-631P06879
...
51
Fuel Tank Assembly (Components Only) MTD-NA
...
52
FUEL TANK MTD-731P20471
...
53
FUEL FILTER MTD-951-12296A
...
54
CARBURETOR HOSE CLAMP MTD-951-11700A
...
55
FUEL HOSE MTD-735-05053A
...
56
STARTER/SHROUD REAR STUD MTD-951-14397
...
57
STARTER/SHROUD FRONT STUD MTD-951-14398
...
58
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
59
FLYWHEEL MTD-951-14401A
...
60
UPPER CRANKSHAFT SEAL MTD-951-11596A
...
61
BOLT M6-1 x 20 GR8.8 MTD-710-04918
...
62
FLEXIBLE CLAMP MTD-951-11622A
...
63
IGNITION COIL ASSEMBLY MTD-925-07165
...
64
BOLT M6-1 x 25 GR8.8 MTD-710-04919
...
65
ENGINE BRAKE COVER PLATE MTD-951-14597A
...
66
CRANKCASE MTD-751P19649
...
67
BREATHER COVER PLATE MTD-951-14404
...
68
BREATHER GASKET MTD-951-14405
...
69
BREATHER VALVE SPRING MTD-732-04718
...
70
BREATHER VALVE MTD-951-11614
...
71
BREATHER SCREEN MTD-951-11730
...
72
BOLT M6-1 x 12 GR8.8 MTD-710-04915
...
73
AIR VANE COVER MTD-751P19613
...
74
ENGINE BRAKE SPRING MTD-932-05566A
...
75
ENGINE BRAKE ASSEMBLY MTD-951-05530
...
76
BREATHER HOSE ASSEMBLY MTD-951-15678
...
77
THROTTLE LINKAGE SPRING MTD-732P05188A
...
78
THROTTLE LINKAGE MTD-951-15677
...
79
GOVERNOR ARM SHAFT MTD-951-11621
...
80
OIL SEAL MTD-951-11902A
...
81
COTTER PIN MTD-714-04078A
...
82
GOVERNOR ARM ASSEMBLY MTD-951-05160A
...
83
GOVERNOR SPRING MTD-751P19650
...
84
VARIABLE SPEED CONTROL ASSEMBLY MTD-751P15898
...
85
VARIABLE SPEED CONTROL COVER MTD-708P05343
...
86
CRANKCASE COVER GASKET MTD-751P18908A
...
87
DOWEL PIN 7 X 14 MTD-715-04092A
...
88
DOWEL PIN 9 X 14 MTD-715-04096A
...
89
BEARING MTD-751P11369A
...
90
CRANKSHAFT MTD-651P08296
...
91
CRANKSHAFT MTD-751P21648
...
92
WOODRUFF KEY MTD-751P10307A
...
93
DRIVE TIMING GEAR MTD-951-15130
...
94
THRUST WASHER MTD-736-04491
...
95
CAMSHAFT ASSEMBLY MTD-951-15795
...
96
GOVERNOR GEAR MOUNTING PLATE MTD-951-11609
...
97
GEAR GOVERNOR MTD-951-05336A
...
98
CRANKCASE COVER MTD-951-15685
...
99
LOWER CRANKSHAFT OIL SEAL MTD-951-15686A
...
100
BOLT-M6-1 x 28 GR8.8 MTD-710-04943
...
101
BOLT M6-1 x 35 GR8.8 MTD-710-04980
...
102
OIL DIPSTICK MTD-951-05540A
...
103
O-RING MTD-921-04795A
...
104
O-RING MTD-921-04697A
...
105
OIL DRAIN PLUG MTD-710-04906
...
106
FLAT WASHER MTD-736-04440A
...
a
Throttle Shaft MTD-NA
...
b
Idle Jet Assembly MTD-NA
...
c
Carburetor Body MTD-NA
...
d
FLOAT PIN MTD-711-06043A
...
e
NEEDLE VALVE MTD-793P00165A
...
f
NEEDLE VALVE SPRING MTD-732P05251A
...
g
FLOAT MTD-731P09132A
...
h
FLOAT BOWL O-RING MTD-721-04710A
...
i
FLOAT BOWL MTD-908-05001
...
j
FLOAT BOWL GASKET MTD-721-04709
...
k
FUEL BOWL BOLT MTD-710-06226
...
l
FUEL DRAIN PLUG MTD-710-06227
...
m
FUEL DRAIN PLUG GASKET MTD-721P04711A
...
n
Main Jet MTD-NA
...
o
Emulsion Tube MTD-NA
...
p
Idle Speed Adjusting Screw MTD-NA
...
q
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
r
Throttle Plate MTD-NA
...
s
LOCK WASHER 3MM MTD-736P05209A
...
t
SCREW-3Mx6 MTD-710-06230
...
xx
COMPLETE ENGINE 196cc MTD-952Z1X70NT
