Troy-Bilt 1X65VU 159cc Engine Troy-Bilt OHV Engine

Model: 1X65VU 159cc Engine

Save Part Not Listed?
product name

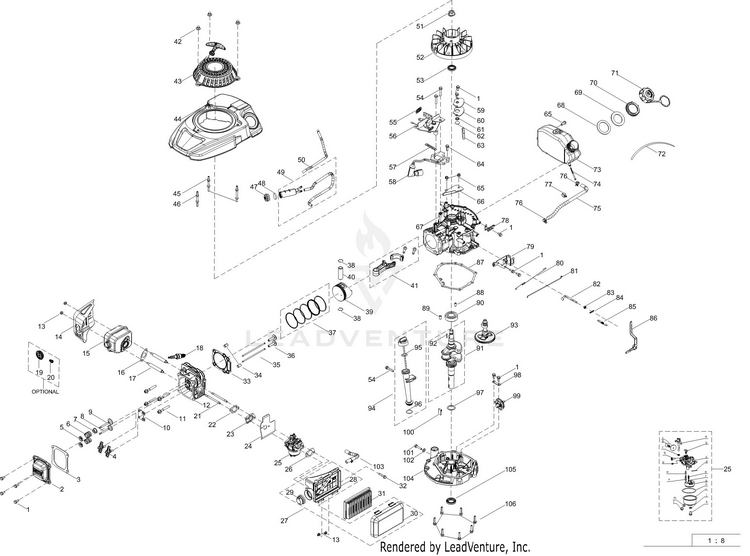

1X65VU General Assembly

...
...
1
Bolt M6x14 MTD-710-04916
...
2
VALVE COVER MTD-951-14609A
...
3
VALVE COVER GASKET MTD-951-11551
...
4
ROCKER ARM MTD-951-11606A
...
5
Valve Spring Retainer MTD-951-11977
...
6
VALVE SPRING MTD-751P12004A
...
7
INTAKE VALVE SEAL MTD-921-04237A
...
8
Exhaust Valve MTD-951-14641
...
9
INTAKE VALVE MTD-951-14640A
...
10
PUSH ROD GUIDE MTD-951-11687A
...
11
Bolt M8x54 Cylinder Head MTD-910-06185
...
12
CYLINDER HEAD MTD-951-14639A
...
13
Nut M6X10 MTD-712-05015
...
14
Muffler Shield MTD-951-15072
...
15
Muffler Assembly MTD-951-10403
...
16
MUFFLER GASKET MTD-951-14427A
...
17
Muffler Stud M6x95 MTD-710-05094
...
18
Spark Plug/F5RTC MTD-951-14437
...
18
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
18
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
19
SPARK ARRESTOR MTD-951-10351A
...
20
Spark Arrestor Screw MTD-710-04983
...
21
Carb Stud M6x87 MTD-951-14826
...
22
Carburetor Gasket MTD-951-14827
...
23
CARBURETOR INSULATOR MTD-951-11738A
...
24
Carburetor Gasket MTD-951-14424
...
25
Carburetor Assembly MTD-951-05496
...
26
AIR FILTER BASE GASKET MTD-951-14419A
...
27
Air Filter Assembly Components MTD-(NOT SERVICED)
...
28
AIR FILTER BASE MTD-931-13304
...
29
Primer Bulb, Non-Vented MTD-951-05180
...
30
Air Filter Cover MTD-931-10202
...
31
AIR FILTER MTD-951-14632A
...
31
Troy-Bilt AIR & FUEL FILTER KIT (14632/12296) Retail Packaged Part MTD-490-950-Y049
...
32
Bolt M6x30 MTD-710-04969
...
33
Cylinder Head Gasket MTD-951-14431
...
34
Cylinder Head Dowel Pin 10x16 MTD-715-04108
...
35
PUSH ROD MTD-747P04862A
...
36
TAPPET MTD-951-14432A
...
37
PISTON RING SET MTD-951-14433A
...
38
Piston Pin Snap Ring MTD-951-11603
...
39
PISTION MTD-951-14434A
...
40
Piston Pin MTD-951-14435
...
41
CONNECTING ROD MTD-951-14436A
...
42
ACORN NUT M6-1 MTD-712-04276A
...
43
RECOIL STARTER ASSEMBLY MTD-951-05360A
...
44
ENGINE SHROUD ASSEMBLY MTD-931-05112
...
45
Shroud Stud M6x78.5 MTD-951-14397
...
46
Shroud Stud M6x74 MTD-951-14398
...
47
Carbon Canister Filter Cap MTD-951-14127
...
48
Carbon Canister Filter MTD-951-14400
...
49
CARBON CANISTER MTD-951-14629
...
50
Carbon Canister Purge Hose MTD-935-05046
...
51
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
52
FLYWHEEL MTD-951-14401A
...
53
UPPER CRANKSHAFT SEAL MTD-951-11596A
...
54
Bolt M6x35 MTD-710-04980
...
55
ENGINE BRAKE SPRING MTD-932-04546
...
56
ENGINE BRAKE ASSEMBLY MTD-951-15543
...
57
FLEXIBLE CLAMP MTD-951-11622A
...
58
IGNITION COIL MTD-925-07281
...
59
Breather Cover Plate MTD-951-14404
...
60
Breather Gasket MTD-951-14405
...
61
Breather Valve Spring MTD-732-04718
...
62
Breather Valve MTD-951-11614
...
63
Breather Screen MTD-951-11730
...
64
Bolt M6x20 MTD-710-04918
...
65
Bolt M6x12 MTD-710-04915
...
66
Air Vane Cover Plate MTD-951-14605
...
67
Crankcase MTD-951-14635
...
68
Fuel Tank Lower Grommet MTD-731-08133
...
69
FUEL TANK GROMMET MTD-951-14406A
...
70
Fuel Tank Nut MTD-731-08104
...
71
Fuel Cap Assembly MTD-951-14407
...
72
Plastic Tie 150Mm MTD-725-06031
...
73
Fuel Tank MTD-931-04629
...
74
FUEL FILTER MTD-951-12296A
...
74
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
75
Fuel Hose MTD-935-05047
...
76
CARBURETOR HOSE CLAMP MTD-951-11700A
...
77
FUEL LINE SUPPORT CLAMP MTD-723-04071A
...
78
Flexible Clamp MTD-951-11680
...
79
COMPONENT BRACKET MTD-951-15800
...
80
Throttle Linkage Spring MTD-951-14409
...
81
Throttle Linkage MTD-951-14410
...
82
GOVERNOR ARM SHAFT MTD-951-11621
...
83
OIL SEAL MTD-951-11902A
...
84
Governor Arm Shaft Cotter Pin MTD-714-04078
...
85
Governor Spring MTD-951-14411
...
86
GOVERNOR ARM ASSEMBLY MTD-951-05485
...
87
Crankcase Cover Gasket MTD-951-14415
...
88
DOWEL PIN 9 X 14 MTD-715-04096A
...
89
DOWEL PIN 9 X 14 MTD-715-04096A
...
90
Main Bearing MTD-951-11369
...
91
Crankshaft Assembly MTD-951-14417
...
92
WOODRUFF KEY MTD-751P10307A
...
93
Camshaft Assembly MTD-951-11741
...
94
Dipstick Assembly MTD-951-05438
...
95
O-RING MTD-921-04795A
...
96
O-RING MTD-921-04697A
...
97
Crankshaft Thrust Washer MTD-736-04491
...
98
Governor Gear Mounting Plate MTD-951-11609
...
99
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
100
Oil Return Seal MTD-951-11733
...
101
Oil Drain Plug MTD-710-04906
...
102
FLAT WASHER MTD-736-04440A
...
103
Breather Hose Assembly MTD-951-11520
...
104
CRANKCASE COVER MTD-951-14418A
...
105
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
106
Bolt M6x28 MTD-710-04943
...
25
Carburetor Assembly MTD-951-05496
...
a
Throttle Shaft MTD-NA
...
b
Idle Jet Assembly MTD-NA
...
c
Carburetor Body MTD-NA
...
d
Float Pin MTD-NA
...
e
Needle Valve MTD-NA
...
f
Needle Valve Spring MTD-NA
...
g
Float MTD-NA
...
h
Fuel Bowl O-Ring MTD-NA
...
i
FLOAT BOWL MTD-908-05001
...
j
Fuel Bowl Mounting Bolt Gasket MTD-NA
...
k
Fuel Bowl Mounting Bolt MTD-NA
...
l
Fuel Drain Plug MTD-NA
...
m
Fuel Drain Plug Gasket MTD-NA
...
n
Main Jet MTD-NA
...
o
Emulsion Tube MTD-NA
...
p
Idle Mixture Screw MTD-NA
...
q
Idle Speed Adjusting Screw MTD-NA
...
r
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
s
Screw M3x6 Throttle Plate MTD-NA
...
t
Throttle Plate MTD-NA
...
xx
COMPLETE ENGINE 159CC MTD-952Z1X65VUA
