product name

Troy-Bilt 1X65CUC Engine Chipper-Shredder & Vac

Model: 1X65CUC Engine

Save Part Not Listed?
product name

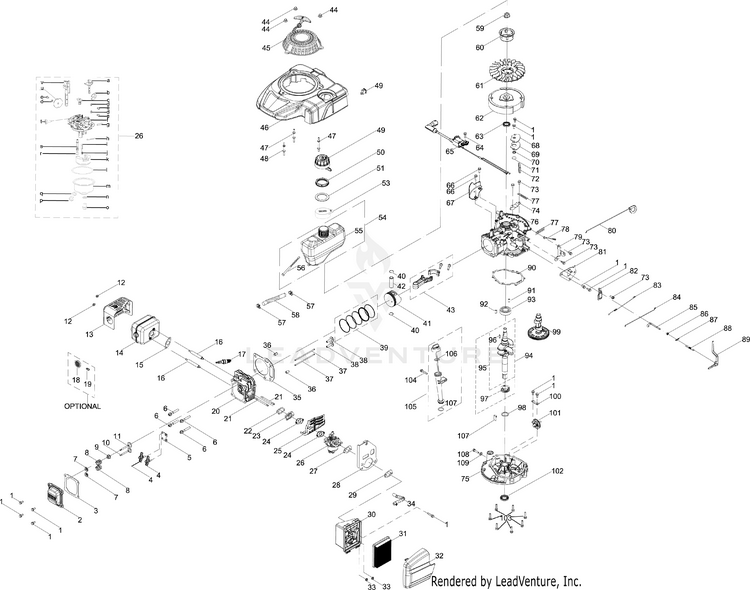

1X65CUC General Assembly

...
...
1
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
2
VALVE COVER MTD-951-14609A
...
3
VALVE COVER GASKET MTD-751P18586A
...
4
ROCKER ARM MTD-951-11606A
...
5
PUSH ROD GUIDE MTD-951-11687A
...
6
BOLT-M8 x 54 MTD-910-06185
...
7
VALVE RETURN SPRING MTD-908-04094A
...
8
VALVE SPRING MTD-751P12004A
...
9
INTAKE VALVE SEAL MTD-921-04237A
...
10
EXHAUST VALVE MTD-951-14641A
...
11
INTAKE VALVE MTD-951-14640A
...
12
HEX NUT MTD-712-05015
...
13
MUFFLER SHIELD MTD-951-15566
...
14
MUFFLER MTD-951-10403
...
15
MUFFLER GASKET MTD-951-14427A
...
16
STUD M6-1 x 95 MTD-710-05094
...
17
SPARK PLUG (F5RTC/RN11YC4/BPR5ES) MTD-951-14437A
...
17
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
17
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
18
SPARK ARRESTOR MTD-951-10351A
...
19
SCREW M3.5 x 9.5 MTD-710-04983
...
20
CYLINDER HEAD MTD-951-14639A
...
21
STUD M6 x 90 MTD-951-15580
...
22
CARBURETOR INSULATOR GASKET MTD-751P18606A
...
23
CARBURETOR INSULATOR MTD-951-11738A
...
24
CARBURETOR GASKET MTD-721P05941A
...
25
CARB HEAT SHEILD MTD-751P18991A
...
26
CARBURETOR ASSEMBLY HY-1X65LA MTD-951-05544
...
27
AIR FILTER BASE GASKET MTD-951-14419A
...
28
AIR FILTER BRACKET MTD-908-05251
...
29
AIR FILTER BRACKET GASKET MTD-721P05942A
...
30
AIR FILTER BASE MTD-931-12769
...
31
AIR FILTER MTD-951-15245
...
32
AIR FILTER COVER MTD-931-12768A
...
33
HEX NUT MTD-712-05015
...
34
BREATHER HOSE ASSEMBLY MTD-951-15567
...
35
HEAD GASKET MTD-751P18607A
...
36
PIN (10MMx16MM) MTD-715P04090A
...
37
PUSH ROD MTD-747P04862A
...
38
TAPPET MTD-951-14432A
...
39
PISTON RING SET MTD-951-14433A
...
40
WRIST PIN CLIP MTD-951-11603A
...
41
PISTION MTD-951-14434A
...
42
PISTON PIN MTD-951-14435A
...
43
CONNECTING ROD MTD-951-14436A
...
44
ACORN NUT M6-1 MTD-712-04276A
...
45
RECOIL STARTER ASSEMBLY MTD-951-05360A
...
46
ENGINE SHROUD ASSEMBLY MTD-931-05437
...
47
STARTER/SHROUD REAR STUD MTD-951-14397
...
48
STARTER/SHROUD FRONT STUD MTD-951-14398
...
49
IGNITION SWITCH MTD-925-06174
...
49
FUEL CAP W/TETHER MTD-951-15255A
...
50
FUEL TANK NUT MTD-931-10290A
...
51
FUEL TANK GROMMET MTD-951-14406A
...
53
FUEL TANK DUST CAP MTD-735P05052
...
55
FUEL TANK MTD-931-12771A
...
56
FUEL FILTER MTD-951-12296A
...
57
CARBURETOR HOSE CLAMP MTD-951-11700A
...
58
FUEL HOSE MTD-935-05215A
...
59
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
60
STARTER CUP MTD-951-12161
...
61
COOLING FAN MTD-751P21930
...
62
FLYWHEEL MTD-951-14596
...
63
UPPER CRANKSHAFT SEAL MTD-951-11596A
...
64
BOLT M6-1 x 20 GR8.8 MTD-710-04918
...
65
IGNITION COIL MTD-925-07206
...
66
BOLT M6-1 x 25 GR8.8 MTD-710-04919
...
67
ENGINE BRAKE COVER PLATE MTD-951-14597A
...
68
BREATHER COVER PLATE MTD-951-14404
...
69
BREATHER GASKET MTD-951-14405A
...
70
BREATHER VALVE SPRING MTD-732-04718A
...
71
BREATHER VALVE MTD-951-11614A
...
72
BREATHER SCREEN MTD-951-11730A
...
73
BOLT M6-1 x 12 GR8.8 MTD-710-04915
...
74
AIR VANE COVER MTD-751P19613
...
75
CRANKCASE COVER MTD-951-14418A
...
76
CRANKCASE MTD-751P18989
...
77
FLEXIBLE CLAMP MTD-951-11622A
...
78
GROUND WIRE MTD-925-07036
...
79
CHOKE CONTROL BRACKET MTD-908-05253
...
80
CHOKE CONTROL MTD-951-15569
...
81
COMPONENT BRACKET MTD-908-05254
...
82
GOVERNOR SHIELD MTD-908-05255
...
83
THROTTLE LINKAGE SPRING MTD-951-14409
...
84
THROTTLE LINKAGE MTD-951-14721
...
85
GOVERNOR ARM SHAFT MTD-951-11621
...
86
OIL SEAL MTD-951-11902A
...
87
COTTER PIN MTD-714-04078A
...
88
GOVERNOR SPRING MTD-951-15570
...
89
GOVERNOR ARM ASSEMBLY MTD-951-05160A
...
90
CRANKCASE COVER GASKET MTD-751P18609A
...
91
DOWEL PIN 7 X 14 MTD-715-04092A
...
92
DOWEL PIN 9 X 14 MTD-715-04096A
...
93
BEARING MTD-751P11369A
...
95
CRANKSHAFT MTD-751P19828
...
96
WOODRUFF KEY MTD-751P10307A
...
97
GEAR MTD-931-10288A
...
98
THRUST WASHER MTD-736-04491A
...
99
CAMSHAFT MTD-751P18628A
...
100
GOVERNOR GEAR MOUNTING PLATE MTD-951-11609A
...
101
GEAR GOVERNOR MTD-951-05336A
...
102
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
103
BOLT-M6-1 x 28 GR8.8 MTD-710-04943
...
104
BOLT M6-1 x 35 GR8.8 MTD-710-04980
...
104
OIL DIPSTICK ASSEMBLY MTD-951-05438
...
105
O-RING MTD-921-04795A
...
106
O-RING MTD-921-04697A
...
107
OIL RETURN SEAL MTD-951-11733
...
108
OIL DRAIN PLUG MTD-710-04906
...
109
FLAT WASHER MTD-736-04440A
...
26
CARBURETOR ASSEMBLY HY-1X65LA MTD-951-05544
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Idle Jet Assembly MTD-NA
...
d
LOCK WASHER MTD-736-04638A
...
e
SCREW-3Mx6 MTD-710-06230
...
f
Carburetor Body MTD-NA
...
g
Fuel Inlet MTD-NA
...
h
FLOAT PIN MTD-711-06043A
...
i
NEEDLE VALVE MTD-793P00165A
...
j
NEEDLE VALVE SPRING MTD-732P05251A
...
k
FLOAT MTD-731P09132A
...
l
FUEL BOWL GASKET MTD-951-11348A
...
m
FLOAT BOWL MTD-908-05001
...
n
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
o
FUEL DRAIN PLUG MTD-710-04938
...
p
BOLT M8-1 x 10 MTD-710-04945
...
q
FUEL BOWL O-RING MTD-951-11589A
...
r
Main Jet MTD-NA
...
s
Emulsion Tube MTD-NA
...
t
SPEED IDLE SCREW MTD-710P06038A
...
u
Throttle Plate MTD-NA
...
v
Throttle Shaft MTD-NA
...
xx
COMPLETE ENGINE 159cc MTD-752Z1X65CUC
