Troy-Bilt 1T65RS 140cc Engine Troy-Bilt OHV Engine

Model: 1T65RS 140cc Engine

Save Part Not Listed?
product name

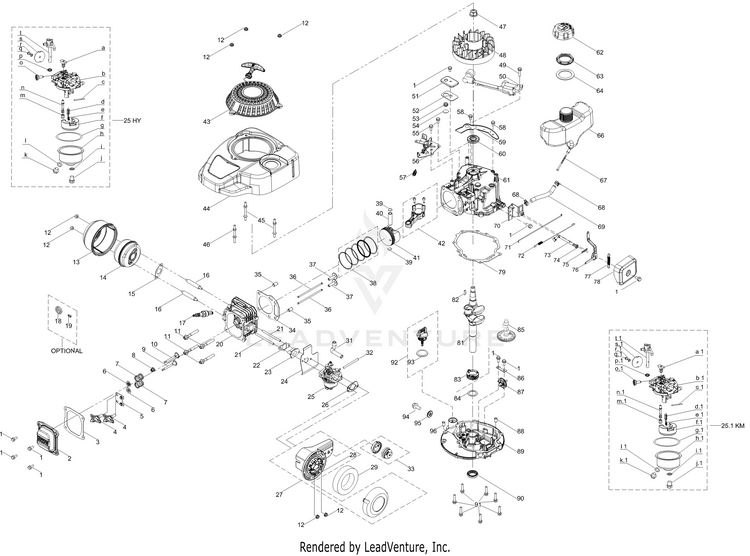

1T65RS General Assembly

...
...
1
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
2
VALVE COVER MTD-908-05094
...
3
VALVE COVER GASKET MTD-751P18586A
...
4
ROCKER ARM MTD-951-11606A
...
5
PUSH ROD GUIDE MTD-951-11687A
...
6
VALVE RETURN SPRING MTD-908-04094A
...
7
VALVE SPRING MTD-751P12004A
...
8
INTAKE VALVE SEAL MTD-921-04705
...
9
EXHAUST VALVE MTD-951-14641A
...
10
INTAKE VALVE MTD-951-14640A
...
11
SCREW M8 x 54 GR10 MTD-710-06200
...
12
HEX NUT MTD-712-05015
...
13
MUFFLER SHIELD MTD-951-14693A
...
14
MUFFLER ASSEMBLY MTD-951-14692A
...
15
MUFFLER GASKET MTD-951-14427A
...
16
STUD M6-1 x 76 MTD-710-06204
...
17
SPARK PLUG (F5RTC/RN11YC4/BPR5ES) MTD-951-14437A
...
18
SPARK ARRESTOR MTD-951-10351A
...
19
SCREW M3.5 X 9.5 MTD-710-09818
...
20
CYLINDER HEAD MTD-951-14689
...
21
STUD M6 x 98 MTD-710-06205
...
22
CARBURETOR INSULATOR GASKET MTD-751P18606A
...
23
CARBURETOR INSULATOR MTD-951-14698
...
24
CARBURETOR GASKET MTD-921-04706A
...
25
CARBURETOR Huyai (1T65BB) Keima(1T65B) MTD-651P06675H
...
26
AIR FILTER BASE GASKET MTD-951-14419A
...
27
AIR FILTER ASSEMBLY MTD-951-05226A
...
28
AIR FILTER BASE MTD-731P10637
...
29
FOAM AIR FILTER MTD-951-14627A
...
31
BREATHER HOSE MTD-735-05055
...
32
PRIMER HOSE MTD-735-05056
...
33
PRIMER ASSEMBLY MTD-951-05177A
...
34
HEAD GASKET MTD-751P18607A
...
35
PIN (10MMx16MM) MTD-715P04090A
...
36
PUSH ROD MTD-747P04862A
...
37
TAPPET MTD-951-11607A
...
38
PISTON RING SET MTD-951-14433A
...
39
WRIST PIN CLIP MTD-951-11603A
...
40
PISTON PIN MTD-951-14435A
...
41
PISTION MTD-951-14434A
...
42
CONNECTING ROD MTD-951-05163A
...
43
STARTER RECOIL ASSEMBLY MTD-951-05320A
...
44
ENGINE SHROUD MTD-931-05602A
...
45
STUD M6 x 75 MTD-710-06208
...
46
STUD M6 x 73 MTD-710-06209
...
47
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
48
ENGINE FLYWHEEL MTD-925-06190A
...
49
BOLT M6-1 x 25 GR8.8 MTD-710-04919
...
50
IGNITION COIL ASSEMBLY MTD-925-07231
...
51
BREATHER COVER PLATE MTD-908-05092
...
52
BREATHER COVER GASKET MTD-921-04703
...
53
BREATHER VALVE SPRING MTD-732-04718A
...
54
BREATHER VALVE MTD-951-11614A
...
55
BOLT M6-1 x 12 GR8.8 MTD-710-04915
...
56
ENGINE BRAKE ASSEMBLY MTD-951-05551
...
57
BRAKE SPRING MTD-932-05580
...
58
BOLT M6-1 x 10 GR8.8 MTD-710-04914
...
59
SHROUD COVER PLATE MTD-908-05269
...
60
UPPER SEAL MTD-921-04700A
...
61
CRANKCASE MTD-751P18608
...
62
FUEL CAP ASSEMBLY MTD-651P05182
...
63
FUEL TANK NUT MTD-931-10290A
...
64
FUEL TANK GROMMET MTD-951-14406A
...
66
FUEL TANK MTD-731P10383
...
67
FUEL FILTER MTD-951-12296A
...
68
CARBURETOR HOSE CLAMP MTD-951-11700A
...
69
FUEL HOSE MTD-735-05053A
...
70
COMPONENT BRACKET MTD-908-05135
...
71
THROTTLE LINKAGE MTD-951-14696
...
72
THROTTLE LINKAGE SPRING MTD-732P05188A
...
73
GOVERNOR ARM SHAFT MTD-951-11621
...
74
OIL SEAL MTD-951-11902A
...
75
COTTER PIN MTD-714-04078A
...
76
GOVERNOR ARM ASSEMBLY MTD-951-05160A
...
77
GOVERNOR SPRING MTD-751P22418
...
78
GOVERNOR SHIELD MTD-931-10287
...
79
CRANKCASE COVER GASKET MTD-751P18609A
...
81
CRANKSHAFT MTD-751P19708
...
82
WOODRUFF KEY MTD-751P10307A
...
83
GEAR MTD-931-10288A
...
84
THRUST WASHER MTD-736-04491A
...
85
CAMSHAFT MTD-751P18628A
...
86
GOVERNOR GEAR MOUNTING PLATE MTD-951-11609A
...
87
GEAR GOVERNOR MTD-951-05336A
...
88
DOWEL PIN 7 X 14 MTD-715-04092A
...
89
CRANKCASE COVER MTD-951-14688A
...
90
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
91
BOLT-M6-1 x 28 GR8.8 MTD-710-04943
...
92
DIPSTICK ASSEMBLY MTD-951-05161
...
93
DIPSTICK O-RING MTD-721P04704
...
94
OIL DRAIN PLUG MTD-710-04906
...
95
FLAT WASHER MTD-736-04440A
...
96
DOWEL PIN 9 X 14 MTD-715-04096A
...
25HY
CARBURETOR Huyai (1T65BB)  MTD-651P06675H
...
a
Idle Jet Assembly MTD-NA
...
b
Carburetor Body MTD-NA
...
c
FLOAT PIN MTD-711-06043A
...
d
NEEDLE VALVE MTD-793P00165A
...
e
NEEDLE VALVE SPRING MTD-732P05251A
...
f
FLOAT MTD-731P09132A
...
g
FUEL BOWL O-RING MTD-951-11589A
...
h
Fuel Bowl MTD-NA
...
i
FUEL BOWL GASKET MTD-951-11348A
...
j
Fuel Bowl Mounting Bolt MTD-NA
...
k
Fuel Drain Plug MTD-NA
...
l
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
m
Main Jet MTD-NA
...
n
Emulsion Tube MTD-NA
...
o
SPEED IDLE SCREW MTD-710P06038A
...
p
THROTTLE SHAFT GASKET MTD-721P04427A
...
q
Screw M3×6 Throttle Plate MTD-NA
...
r
LOCK WASHER 3MM MTD-736P05209A
...
s
Throttle Plate MTD-NA
...
t
Throttle Shaft MTD-NA
...
25.1
CARBURETOR Keima(1T65B) MTD-651P06675H
...
a.1
Idle Jet Assembly MTD-NA
...
b.1
Carburetor Body MTD-NA
...
c.1
FLOAT PIN MTD-711P06053A
...
d.1
NEEDLE VALVE MTD-793P00165A
...
e.1
NEEDLE VALVE SPRING MTD-732P05138A
...
f.1
FLOAT MTD-731P09861A
...
g.1
FUEL BOWL O-RING MTD-951-11589A
...
h.1
Fuel Bowl MTD-NA
...
i.1
FUEL BOWL GASKET MTD-951-11348A
...
j.1
Fuel Bowl Mounting Bolt MTD-NA
...
k.1
Fuel Drain Plug MTD-NA
...
l.1
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
m.1
Main Jet MTD-NA
...
n.1
Emulsion Tube MTD-NA
...
o.1
SPEED IDLE SCREW MTD-710P06038A
...
p.1
THROTTLE SHAFT GASKET MTD-721P04427A
...
q.1
Screw M3×6 Throttle Plate MTD-NA
...
r.1
LOCK WASHER 3MM MTD-736P05209A
...
s.1
Throttle Plate MTD-NA
...
t.1
Throttle Shaft MTD-NA
...
xx
COMPLETE ENGINE 140cc MTD-752Z1T65RS
