Troy-Bilt 1P70L0A Engine Troy-Bilt OHV Engine

Model: 1P70L0A Engine

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

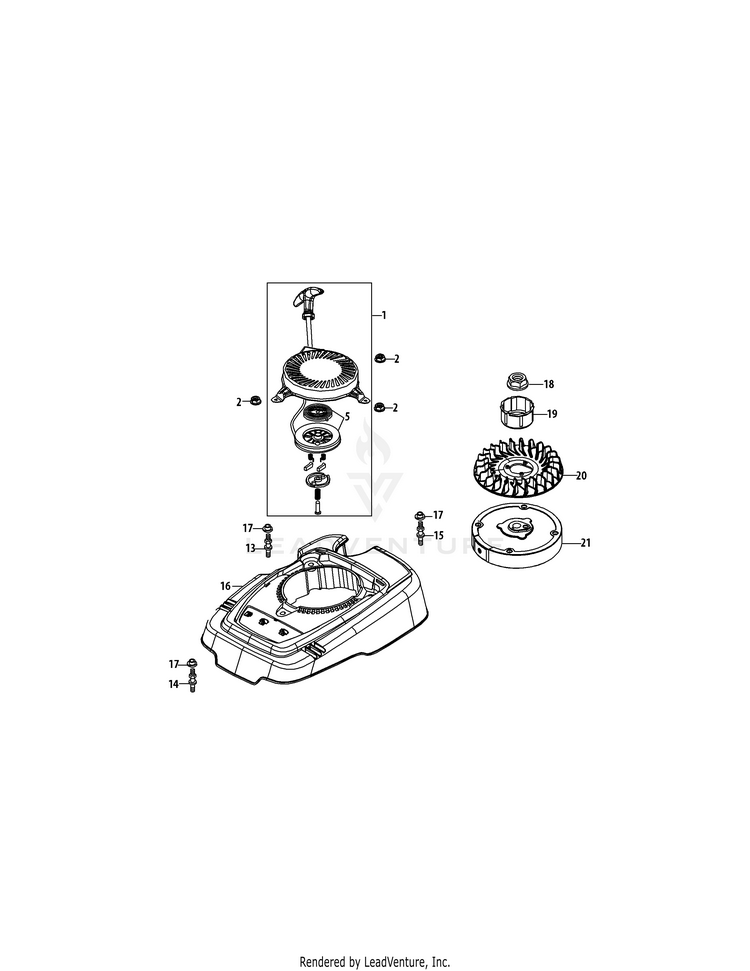

1P70L0A Flywheel & Shroud

...
...
1
Recoil Starter Assembly MTD-951-12683
...
2
Nut M6 MTD-712-05015
...
5
Recoil Spring and Pulley Ass'y MTD-951-11721
...
13
STARTER SHROUD STUD MTD-710-04976
...
14
Starter/Shroud Stud Front/Unmarked MTD-710-04977
...
15
STARTER SHROUD STUD M6 x 79 MTD-710-04978
...
16
INNER SHROUD MTD-951-12183
...
17
Spacer MTD-750-05320
...
18
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
19
STARTER CUP MTD-951-12176
...
20
COOLING FAN MTD-951-10909B
...
21
FLYWHEEL MTD-951-10935
