Troy-Bilt 1P70L0A Engine Troy-Bilt OHV Engine

Model: 1P70L0A Engine

Back To Assemblies

Save Part Not Listed?
product name

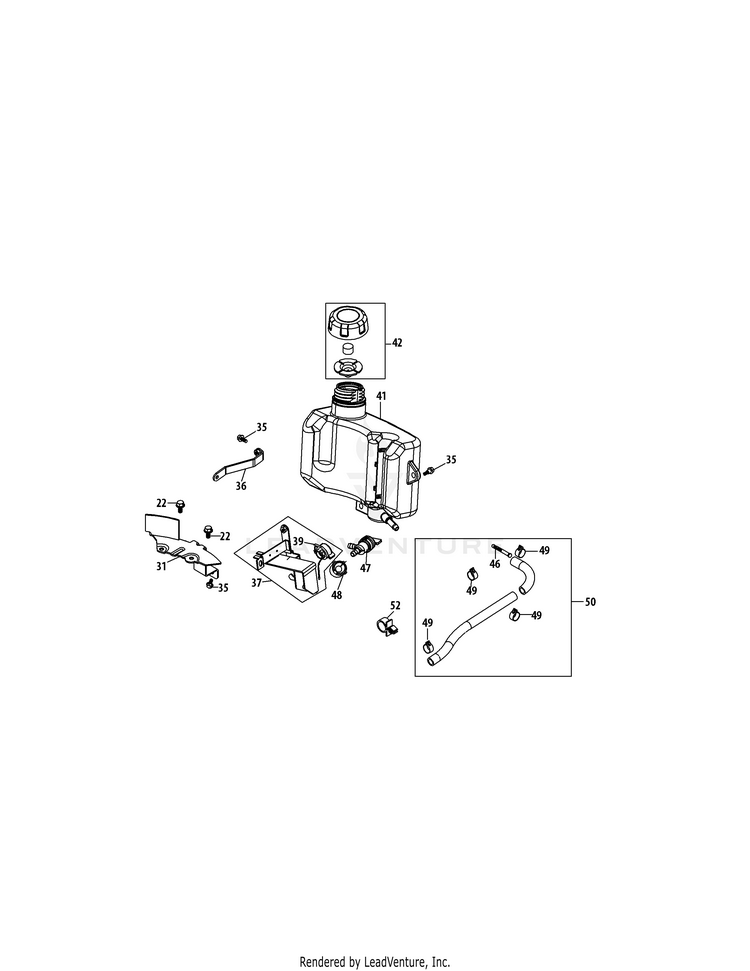

1P70L0A Fuel Tank & Mounting

...
...
22
Bolt M6X14 Multi-Purpose MTD-710-04916
...
31
FUEL TANK BOTTOM BRACKET MTD-951-12184
...
35
Fuel Tank Bolt (Carb) MTD-710-04968
...
36
FUEL TANK SUPPORT BRACKET MTD-951-12185
...
37
FUEL TANK SIDE BRACKET MTD-951-12186
...
39
IGNITION SWITCH MTD-951-12289
...
41
Fuel Tank MTD-951-12191
...
42
FUEL CAP ASSEMBLY MTD-951-12291
...
46
FUEL FILTER MTD-951-12296A
...
47
FUEL SHUT-OFF VALVE MTD-951-12290
...
48
FUEL SHUT OFF SUPPORT CLIP MTD-951-12192
...
49
CARBURETOR HOSE CLAMP MTD-951-11700A
...
50
FUEL LINE KIT MTD-951-12188
...
52
FUEL LINE SUPPORT CLAMP MTD-723-04071A
