Troy-Bilt 1P70C0A-11 OHV Engine

Model: 1P70C0A-11 Engine

Back To Assemblies

Save Part Not Listed?
product name

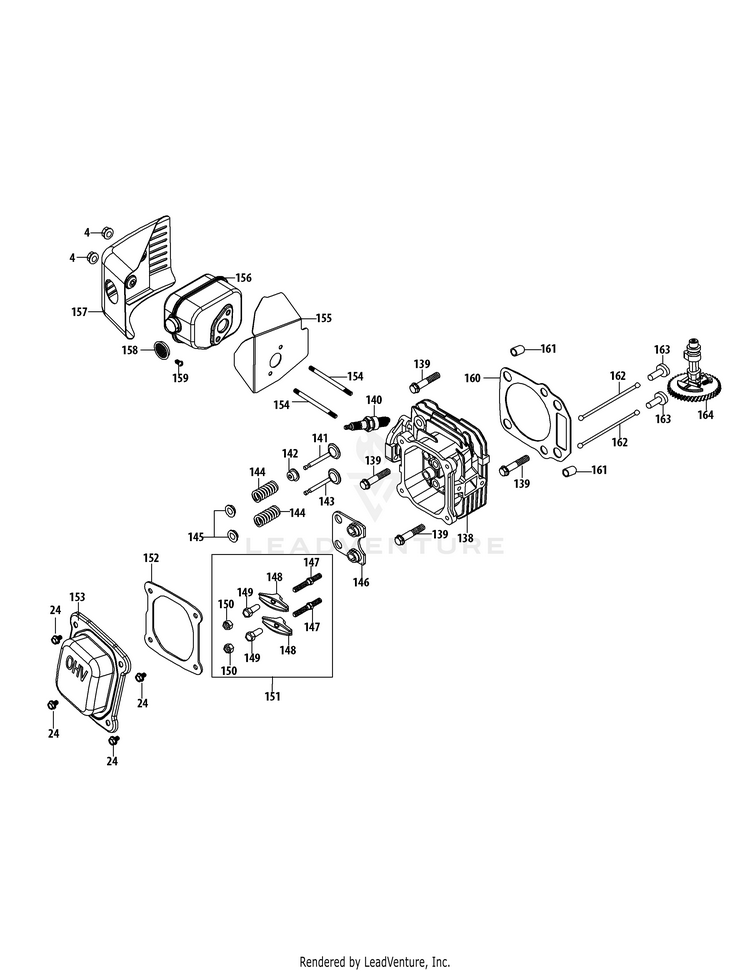

1P70C0A-11 Cylinder Head

...
...
4
Nut M6 MTD-712-05015
...
24
Bolt M6X14 MTD-710-04916
...
138
Cylinder Head Assembly (Incl.135,136,138,141-150,152,155,160) MTD-951-10413B
...
139
Bolt M8X54 Cylinder Head MTD-710-04982
...
140
Spark Plug MTD-951-10292A
...
141
Valve Kit MTD-951-10345
...
142
VALVE SEAL MTD-951-11818
...
143
Valve Kit MTD-951-10345
...
144
Valve Spring MTD-951-12116
...
145
Valve Spring Retainer MTD-951-12000
...
146
PUSH ROD GUIDE MTD-951-11629
...
147
Rocker Arm Stud MTD-710-04902
...
148
ROCKER ARM MTD-951-12175
...
149
Fulcrum Nut MTD-751-11123
...
150
Jam Nut MTD-751-11124
...
151
ROCKER ARM MTD-951-11606A
...
152
VALVE COVER GASKET MTD-951-11551
...
153
VALVE COVER MTD-951-11548
...
154
Muffler Stud M6X95 MTD-710-05094
...
154
Muffler Stud Assemlby MTD-951-10342
...
155
Muffler Gasket MTD-951-11739
...
156
Muffler Assembly MTD-951-10403
...
157
Muffler Shield MTD-951-10411
...
158
SPARK ARRESTOR MTD-951-10351A
...
159
Spark Arrestor Screw MTD-710-04983
...
160
CYLINDER HEAD GASKET MTD-951-11630
...
161
Dowel Pin 10×16 MTD-715-04108
...
162
Push Rod Kit MTD-951-10344
...
163
Tappet MTD-951-11607
...
164
CAMSHAFT ASSEMBLY MTD-951-11767
...
xx
GASKET KIT (EXTERNAL) Not shown (Incl.29,79,95,134,136,152,155) MTD-951-11772
...
xx
GASKET KIT (COMPLETE) Not shown (Incl.27,29,54,72,79,95,98,134,136,152,155,160) MTD-951-11770
...
xx
COMPLETE ENGINE 173cc Not shown MTD-952Z1P70C0A-11
