Troy-Bilt 1P70C0A-11 OHV Engine

Model: 1P70C0A-11 Engine

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

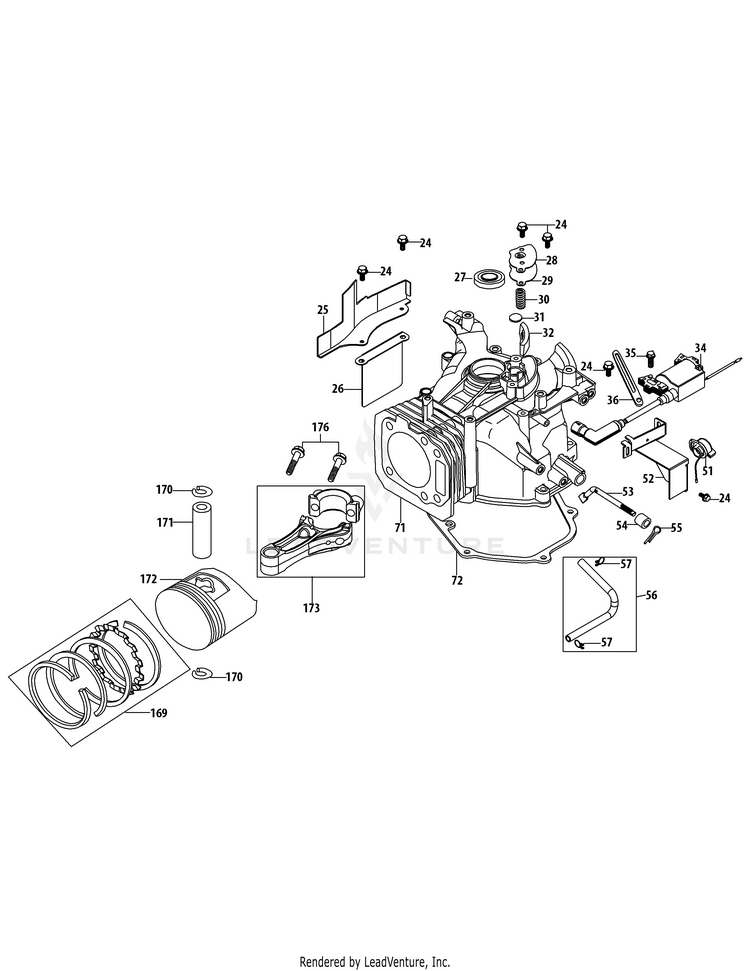

1P70C0A-11 Crankcase

...
...
24
Bolt M6X14 MTD-710-04916
...
25
AIR GUIDE BRACKET MTD-951-12104
...
26
BRACKET MTD-951-11602
...
27
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
28
Breather Cover Plate MTD-951-11728
...
29
Breather Gasket MTD-951-11729
...
30
Breather Spring MTD-732-04718
...
31
Breather Valve MTD-951-11614
...
32
BREATHER SCREEN MTD-951-11762
...
34
IGNITION COIL MTD-951-10931
...
35
Bolt M6X18 MTD-710-04979
...
36
Flexible Clamp MTD-951-11680
...
51
IGNITION SWITCH MTD-951-10622
...
52
TANK SIDE BRACKET MTD-951-12169
...
53
GOVERNOR ARM SHAFT MTD-951-11621
...
54
OIL SEAL MTD-951-11902A
...
55
COTTER PIN MTD-714-04078A
...
56
Breather Hose Assembly MTD-951-11260
...
57
Breather Hose Clamp MTD-726-04101
...
71
SHORTBLOCK ASSEMBLY (Incl.24,27-32,40,53-55,71-74,79,82,83,91,93-98,107,135,136,152,155,160,161,163,164,169,170-173,176) MTD-951-12177
...
72
Crankcase Cover Gasket MTD-951-11763
...
169
PISTON RING SET MTD-751P12111A
...
170
PISTON PIN SNAP RING MTD-951-11632
...
171
PISTON PIN MTD-951-11633
...
172
PISTON MTD-951-11634
...
173
CONNECTING ROD ASSEMBLY MTD-951-11768
...
176
CONNECTING ROD BOLT MTD-710-05162
...
xx
GASKET KIT (EXTERNAL) Not shown (Incl.29,79,95,134,136,152,155) MTD-951-11772
...
xx
GASKET KIT (COMPLETE) Not shown (Incl.27,29,54,72,79,95,98,134,136,152,155,160) MTD-951-11770
...
xx
COMPLETE ENGINE 173cc Not shown MTD-952Z1P70C0A-11
