Troy-Bilt 1P70C0A-11 OHV Engine

Model: 1P70C0A-11 Engine

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

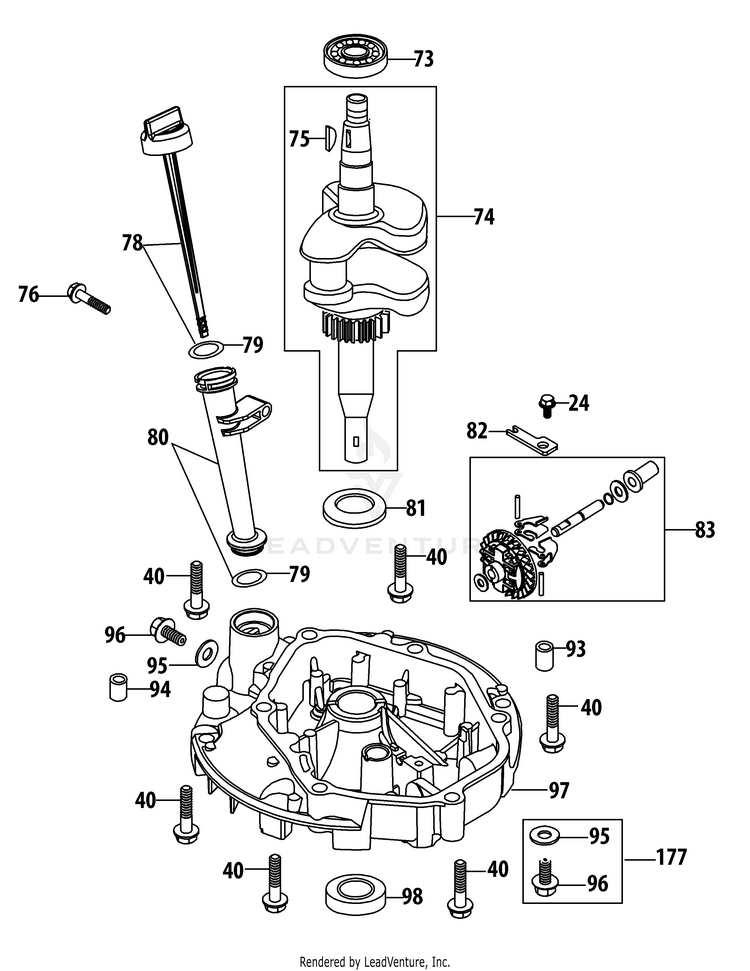

1P70C0A-11 Crankshaft & Crankcase Cover

...
...
24
Bolt M6X14 MTD-710-04916
...
40
Bolt M8X50 MTD-710-04922
...
73
Main Bearing MTD-951-11369
...
74
CRANKSHAFT ASSEMBLY MTD-951-12174
...
75
WOODRUFF KEY MTD-751P10307A
...
76
Bolt M6X35 MTD-710-04980
...
78
Dipstick Assembly MTD-951-11764B
...
79
OIL FILL TUBE O-RING MTD-951-11547
...
80
Oil Fill Tube MTD-951-11765A
...
81
Crankshaft Thrust Washer MTD-736-04491
...
82
GOVERNOR GEAR MOUNTING PLATE MTD-951-11625
...
83
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11626
...
93
DOWEL PIN 9 X 14 MTD-715-04096A
...
94
DOWEL PIN MTD-715-04089
...
95
FLAT WASHER MTD-736-04440A
...
96
Oil Drain Plug MTD-710-04906
...
97
CRANKCASE COVER MTD-951-11794
...
98
LOWER CRANKSHAFT SEAL MTD-951-11627
...
177
Oil Drain Plug And Washer Assy MTD-951-10370
