Troy-Bilt 1P70C0 Engine Troy-Bilt OHV Engine

Model: 1P70C0 Engine

Save Part Not Listed?
product name

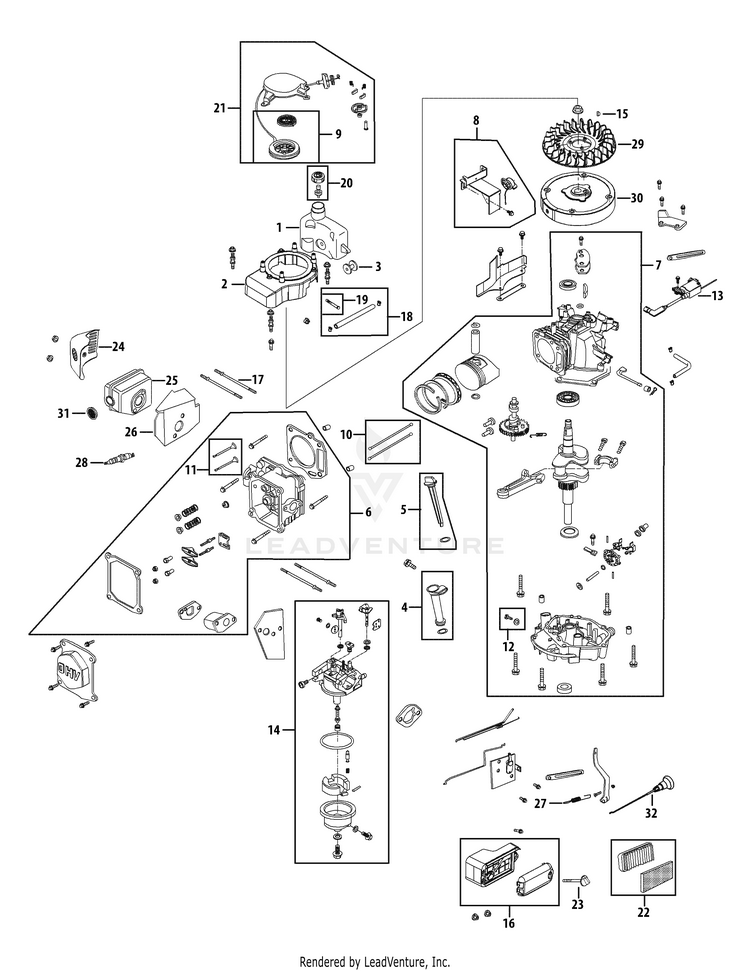

Engine Assembly 1P70C0

...
...
1
FUEL TANK ASSEMBLY MTD-951-12739
...
2
FLYWHEEL SHROUD MTD-951-10369
...
3
Rubber Bushing MTD-951-10335
...
4
Oil Filler Tube Assemlby MTD-951-10334
...
5
DIPSTICK ASSEMBLY MTD-951-10852
...
6
Cylinder Head Assembly MTD-951-10413B
...
7
SHORT BLOCK ASSEMBLY MTD-751-10932
...
8
ON/OFF SWITCH AND BRACKET ASSEMBLY MTD-951-10936
...
9
Recoil Spring And Pulley Assy MTD-951-10319
...
10
Push Rod Kit MTD-951-10344
...
11
Valve Kit MTD-951-10345
...
12
Oil Drain Plug & Washer Assembly MTD-951-10370
...
13
IGNITION COIL MTD-951-10931
...
14
Carburetor Assembly MTD-951-10929
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assy Comp MTD-951-10412B
...
17
Muffler Stud Assemlby MTD-951-10342
...
18
Fuel Hose Kit Inc. hoses, clamps & filter MTD-951-10364
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap Assembly MTD-951-10300
...
21
Recoil Starter Assembly MTD-951-10299A
...
22
Air Filter MTD-951-10298
...
23
Air Cleaner Thumb Screw MTD-951-10297
...
24
Muffler Shield MTD-951-10411
...
25
Muffler Assembly MTD-951-10403
...
26
Muffler Gasket/Heat Shield MTD-951-10402
...
27
Governor Spring MTD-951-10387
...
28
Spark Plug MTD-951-10292A
...
29
COOLING FAN MTD-951-10909B
...
30
FLYWHEEL MTD-951-10935
...
31
SPARK ARRESTOR MTD-951-10351A
...
32
CHOKE CONTROL KNOB MTD-951-10933
...
xx
STARTER CUP Not Shown MTD-951-12176
...
xx
CARBURETOR KIT (MAJOR) Not Shown MTD-951-10930
...
xx
CYLINDER HEAD KIT Not Shown MTD-951-10870
...
xx
GASKET KIT (COMPLETE) Not Shown MTD-951-10416A
...
xx
Gasket Kit - External Not Shown MTD-951-10417A
...
xx
ENG KIT-REPLACEMENT W/IMPLR 50 Not Shown MTD-759-04301
