Troy-Bilt 1P65N0A Engine Troy-Bilt OHV Engine

Model: 1P65N0A Engine

Back To Assemblies

Save Part Not Listed?
product name

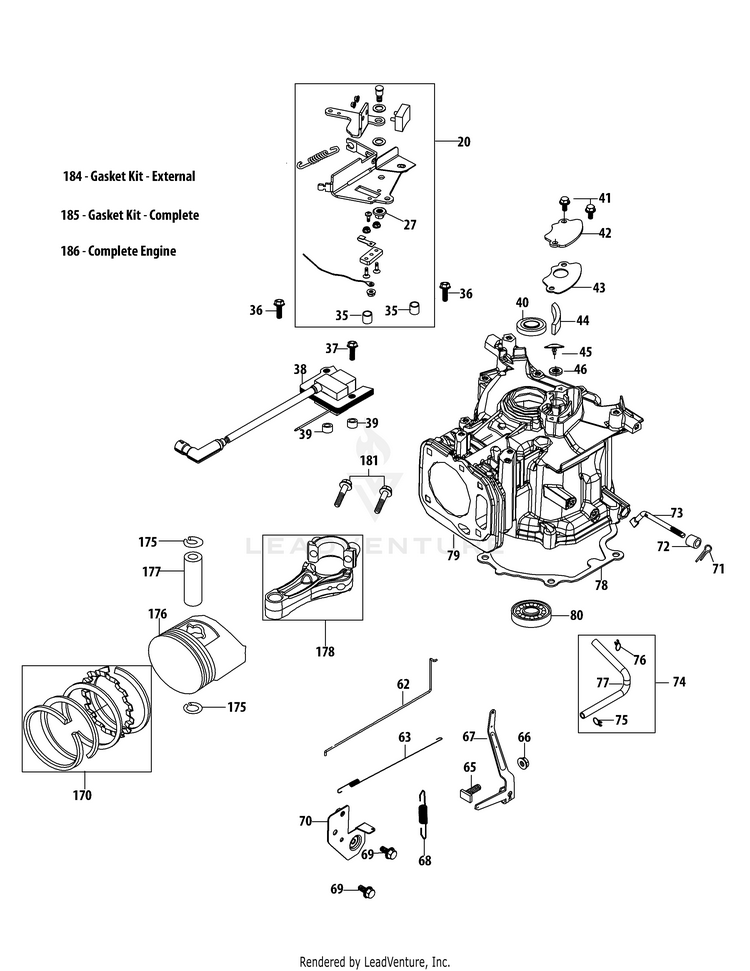

1P65N0A Crankcase

...
...
20
Stop Switch and Brake Ass'y MTD-951-10320A
...
27
Brake Arm Nut MTD-712-04219
...
35
Brake Spacer MTD-750-05384
...
36
Bolt M6X35 MTD-710-04980
...
37
Bolt M6X30 MTD-710-04969
...
38
Ignition Coil Assembly MTD-951-10367
...
39
IGNITION COIL SPACER MTD-951-11675
...
40
UPPER CRANKSHAFT SEAL MTD-951-11596A
...
41
Bolt M6X14 MTD-710-04916
...
42
Breather Cover Plate MTD-951-12684
...
43
Breather Gasket MTD-951-11729
...
44
Breather Screen MTD-951-11730
...
45
Breather Valve Base MTD-951-12685
...
46
Breather Valve MTD-951-12686
...
62
Throttle Linkage MTD-951-11521
...
63
Throttle Linkage Spring MTD-951-11522
...
65
Governor Arm Bolt MTD-710-04908
...
66
Nut M6 MTD-712-05015
...
67
Governor Arm MTD-951-11523
...
68
Governor Spring MTD-951-11273
...
69
Bolt M6X12 MTD-710-04915
...
70
Component Bracket MTD-951-11544
...
71
COTTER PIN MTD-714-04078A
...
72
OIL SEAL MTD-951-11902A
...
73
GOVERNOR ARM SHAFT MTD-951-11621
...
74
Breather Hose Assembly MTD-951-11725
...
75
Breather Hose Clamp MTD-726-04101
...
76
BREATHER HOSE CLAMP MTD-726-04128
...
77
Breather Hose MTD-951-11520
...
78
Crankcase Cover Gasket MTD-951-11732
...
79
SHORTBLOCK (Incl.40-46,71-73,78-82,84-86,99-105,110,140,141,156,160,165,166,168-170,175-178) MTD-951-12430A
...
80
Main Bearing MTD-951-11369
...
170
Piston Ring Set MTD-951-11688
...
175
Piston Pin Snap Ring MTD-951-11603
...
176
PISTON MTD-951-11605
...
177
Piston Pin MTD-951-11604
...
178
CONNECTING ROD ASSEMBLY MTD-951-11744
...
181
CONNECTING ROD BOLT MTD-710-05162
...
184
GASKET KIT (EXTERNAL) (Incl.43,98,100,139-141,156,160) MTD-951-11710
...
185
Gasket Kit - Complete (Incl.40,43,72,78,98,100,105,139-141,156,160,165) MTD-951-11709
...
186
COMPLETE ENGINE 139cc MTD-952Z1P65NU
