product name

Troy-Bilt 1P65M0 Engine Troy-Bilt OHV Engine

Model: 1P65M0 Engine

Save Part Not Listed?
product name

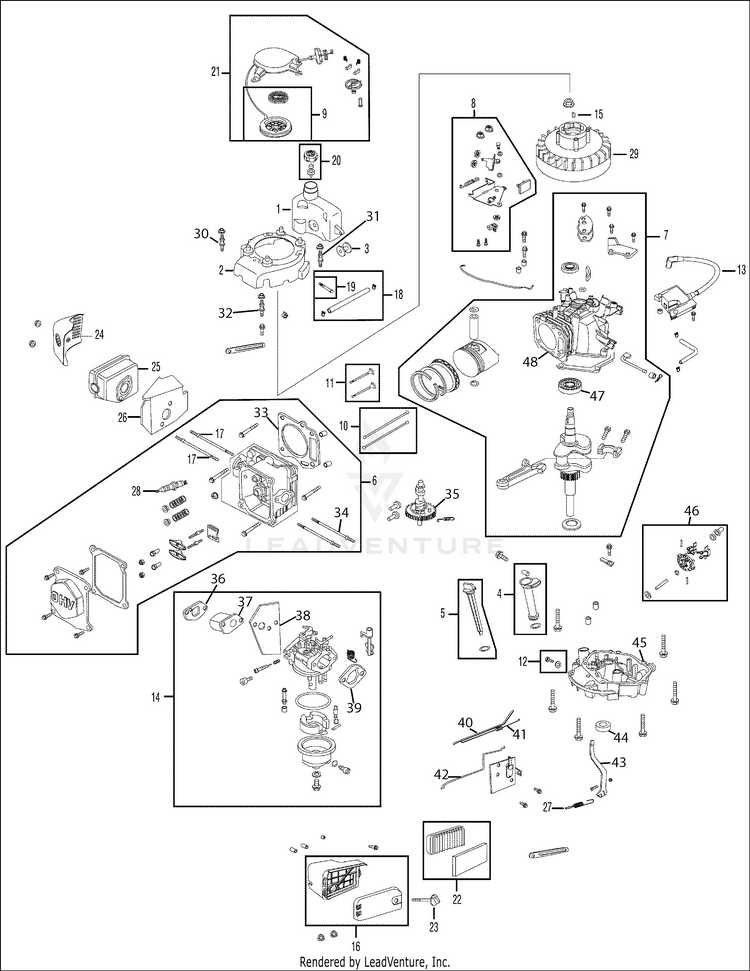

Engine Assembly 1P65M0

...
...
1
FUEL TANK MTD-951-10337
...
2
FLYWHEEL SHROUD MTD-951-10336
...
3
Rubber Fuel Tank Mounting Washer MTD-951-10335
...
4
Oil Filler Tube Assembly MTD-951-10334
...
5
Dipstick Assembly MTD-951-10333
...
6
CYLINDER HEAD COMPLETE MTD-951-10406
...
7
SHORTBLOCK ASSEMBLY MTD-951-11789A
...
8
Stop Switch and Brake Assembly MTD-951-10320A
...
9
Recoil Spring and Pulley Assembly MTD-951-10319
...
10
Push Rod Kit MTD-951-10314
...
11
Valve Kit MTD-951-10313
...
12
Oil Drain Plug and Washer Assembly MTD-951-10370
...
13
Ignition Coil MTD-951-10367
...
14
Carburetor Assembly MTD-951-10309
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assembly Complete MTD-951-10882
...
17
Carb Stud M6x92 MTD-710-05093
...
18
Fuel Line Kit - Inc. hoses, clamps & filter MTD-951-10363
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap Assembly MTD-951-10300
...
21
Recoil Starter Assembly MTD-951-10299A
...
22
Air Cleaner Kit MTD-951-10298
...
22
Cub Cadet AIR FILTER Retail Packaged Part MTD-OCC-751-10298
...
22
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10298
...
23
Air Cleaner Thumb Screw MTD-951-10297
...
24
MUFFLER GUARD MTD-951-10404
...
25
Muffler MTD-951-10403
...
26
Muffler Gasket /Heat Shield MTD-951-10402
...
27
Governor Return Spring MTD-951-10387
...
28
Spark Plug MTD-951-10292A
...
29
Flywheel MTD-951-11043
...
30
SHROUD STUD M6 x 74 MTD-710-05089
...
31
SHROUD STUD M6 x 77 MTD-710-05090
...
32
SHROUD STUD M6 x 72.5 MTD-710-05091
...
33
CYLINDER HEAD GASKET MTD-951-11555
...
34
Stud M6 X 92 MTD-710-05093
...
35
Camshaft Assembly MTD-951-11741
...
36
Carburetor Insulator Gasket MTD-951-11528
...
37
Carburetor Insulator MTD-951-11527
...
38
Carburetor Gasket MTD-951-11526
...
39
Carburetor Gasket Plate MTD-951-11525
...
40
Throttle Linkage Rod MTD-951-11677
...
41
Throttle Linkage Spring MTD-951-11522
...
42
Choke Linkage MTD-951-11694
...
43
GOVERNOR ARM MTD-951-11678
...
44
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
45
CRANKCASE COVER MTD-951-11793
...
46
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
47
Bearing MTD-951-11369
...
48
Crankcase Cover Gasket MTD-951-11601
...
xx
Carburetor Repair Kit - Major Not Shown MTD-951-10325
...
xx
Carburetor Repair Kit - Minor Not Shown MTD-951-10322
...
xx
GASKET KIT (COMPLETE) Not Shown MTD-951-10409A
...
xx
GASKET KIT (EXTERNAL) Not Shown MTD-951-10410A
...
xx
SPARK ARRESTOR Not Shown MTD-951-10351A
...
xx
COMPLETE ENGINE 173cc Not Shown MTD-952Z5P70MU
