Troy-Bilt 1P65FU Engine Troy-Bilt OHV Engine

Model: 1P65FU Engine

Save Part Not Listed?
product name

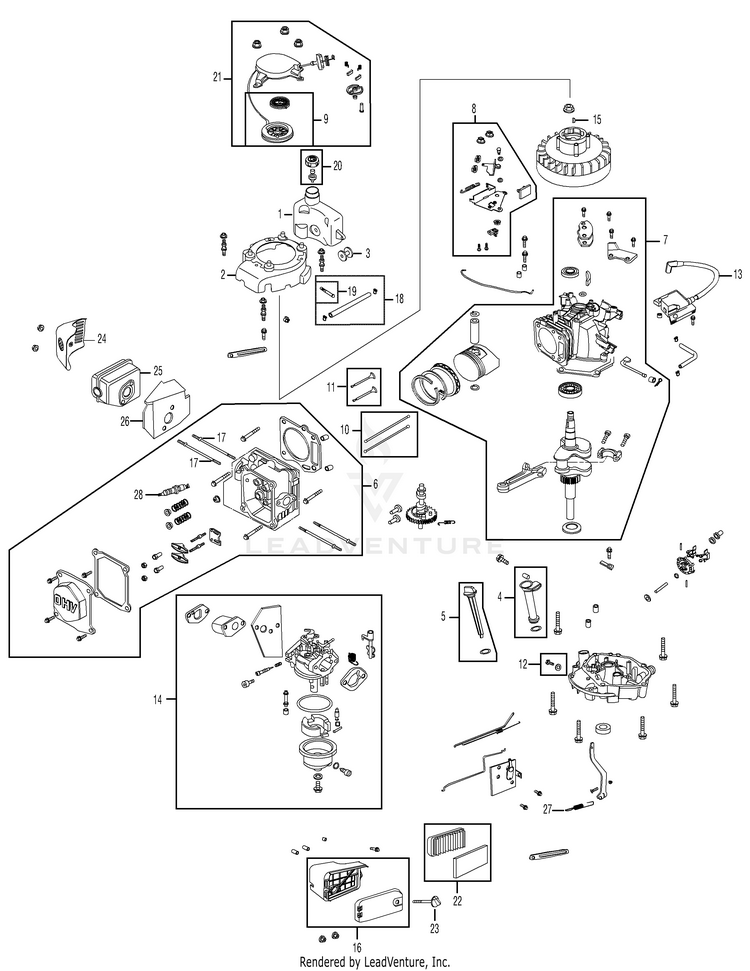

Engine Assembly 1P65FU

...
...
1
FUEL TANK MTD-951-10337
...
2
FLYWHEEL SHROUD MTD-951-10336
...
2
Screw-Hex Wash HD If replacing shroud, also requires 4 new screws. MTD-710-04744
...
3
Rubber Fuel Tank Mounting Washer MTD-951-10335
...
4
Oil Filler Tube Assembly MTD-951-10334
...
5
Dipstick Assembly MTD-951-10333
...
6
CYLINDER HEAD MTD-951-10331
...
7
SHORTBLOCK ASSEMBLY MTD-951-10328
...
8
Stop Switch and Brake Ass'y MTD-951-10320A
...
9
Recoil Spring and Pulley Assembly MTD-951-10319
...
10
Push Rod Kit MTD-951-10314
...
11
Valve Kit MTD-951-10313
...
12
Oil Drain Plug and Washer Assembly MTD-951-10370
...
13
Ignition Coil MTD-951-10367
...
14
Carburetor Assembly MTD-951-10309
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assembly Complete MTD-951-10876
...
17
Carb Stud M6x92 MTD-710-05093
...
18
Fuel Line Kit - Inc. hoses, clamps & filter MTD-951-10363
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap Assembly MTD-951-10300
...
21
Recoil Starter Assembly MTD-951-10299A
...
22
Air Cleaner Kit MTD-951-10298
...
22
Cub Cadet AIR FILTER Retail Packaged Part MTD-OCC-751-10298
...
22
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10298
...
23
Air Cleaner Thumb Screw MTD-951-10297
...
24
MUFFLER GUARD MTD-951-10296
...
25
Muffler Assembly MTD-951-10403
...
26
Muffler Gasket MTD-951-11739
...
27
Governor Spring MTD-951-10387
...
28
Spark Plug MTD-951-10292A
...
29a
SHROUD MTD-731-05401
...
29b
ENGINE SHROUD MTD-731-05572
...
xx
Carburetor Repair Kit - Major Not shown MTD-951-10325
...
xx
Carburetor Repair Kit - Minor Not shown MTD-951-10322
...
xx
GASKET KIT (COMPLETE) Not shown MTD-951-10317
...
xx
GASKET KIT (EXTERNAL) Not shown MTD-951-10315
...
xx
SPARK ARRESTOR Not shown MTD-951-10351A
...
xx
COMPLETE ENGINE 173cc Not shown MTD-952Z5P70MU
...
xx
NOTE: Illustrated parts without a numeric call-out are not servicable components. MTD-NA
