Troy-Bilt 1P65BU Engine Troy-Bilt OHV Engine

Model: 1P65BU Engine

Back To Assemblies

Save Part Not Listed?
product name

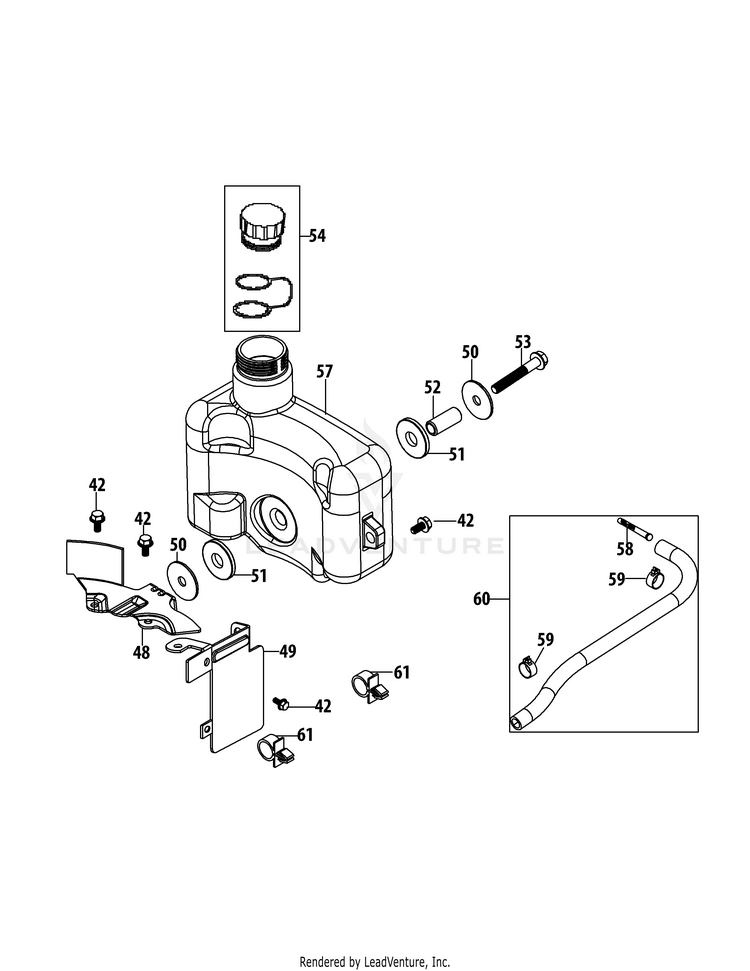

1P65BU Fuel Tank

...
...
42
Bolt MTD-710-04916
...
48
Fuel Tank Bottom Bracket MTD-951-11542
...
49
Fuel Tank / Label Bracket MTD-951-11748
...
50
FUEL TANK WASHER MTD-736-04456
...
51
Rubber Bushing MTD-951-10335
...
52
Fuel Tank Bushing MTD-750-05322
...
53
Bolt M8X50 MTD-710-04922
...
54
Fuel Cap Assembly MTD-951-12738
...
57
Fuel Tank Assembly MTD-951-12864
...
58
FUEL FILTER MTD-951-12296A
...
59
CARBURETOR HOSE CLAMP MTD-951-11700A
...
60
Fuel Line Kit MTD-951-10363
...
61
FUEL LINE SUPPORT CLAMP MTD-723-04071A
