Troy-Bilt 1P65BU Engine Troy-Bilt OHV Engine

Model: 1P65BU Engine

Back To Assemblies

Save Part Not Listed?
product name

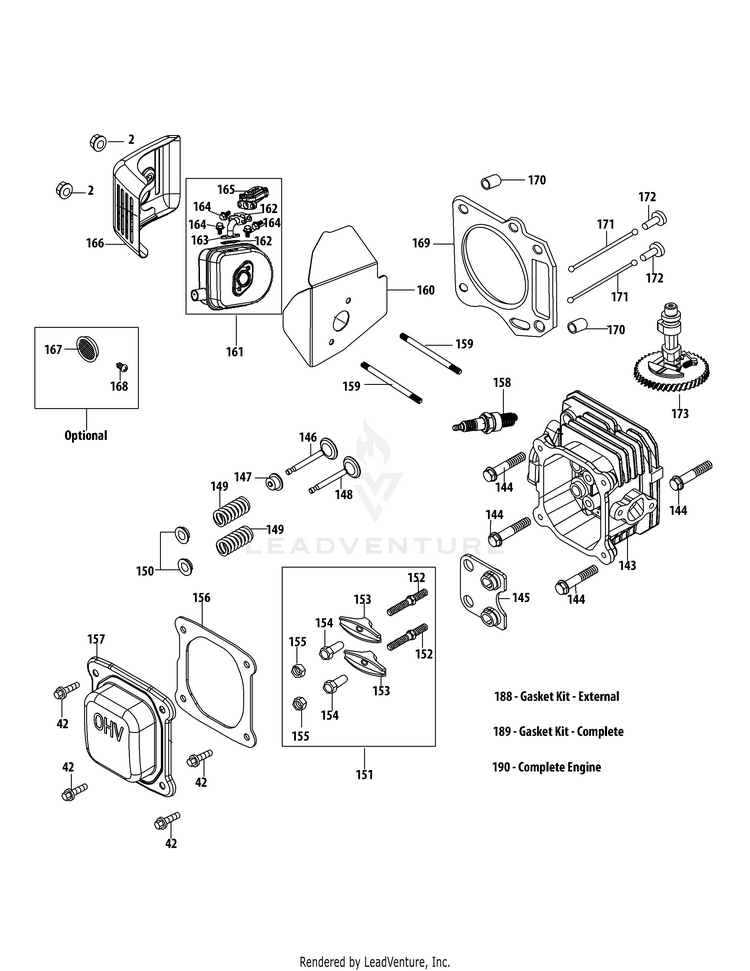

1P65BU Cylinder Head

...
...
2
Nut M6 MTD-712-05015
...
42
Bolt MTD-710-04916
...
143
CYLINDER HEAD SERVICE KIT (Incl.144,147,156,169) MTD-951-10846A
...
143
CYLINDER HEAD (Incl.140,141,143,146-150,152-156,160,169) MTD-951-11746
...
144
Bolt M8X54 Cylinder Head MTD-710-04982
...
145
PUSH ROD GUIDE MTD-951-11687A
...
146
Intake Valve MTD-951-10313
...
147
VALVE SEAL MTD-951-11818
...
148
Exhaust Valve MTD-951-10313
...
149
VALVE SPRING MTD-751P12004A
...
150
Valve Spring Retainer MTD-951-11977
...
151
ROCKER ARM MTD-951-11606A
...
152
Rocker Arm Stud MTD-710-04902
...
153
Rocker Arm MTD-951-12001
...
154
Fulcrum Nut MTD-751-11123
...
155
Jam Nut MTD-751-11124
...
156
VALVE COVER GASKET MTD-951-11551
...
157
VALVE COVER MTD-951-11548
...
158
Spark Plug MTD-951-10292A
...
159
Muffler Stud M6X95 MTD-710-05094
...
159
Muffler Stud Assemlby MTD-951-10342
...
160
Muffler Gasket MTD-951-11739
...
161
Muffler Assembly MTD-951-12740
...
162
Secondary Air Valve Gasket MTD-951-12743
...
163
SECONDARY AIR TUBE MTD-951-12742
...
164
BOLT M6 x 12 MTD-710-05434
...
165
SECONDARY AIR VALVE MTD-951-12865
...
166
Muffler Shield MTD-951-12744
...
167
SPARK ARRESTOR MTD-951-10351A
...
168
Spark Arrestor Screw MTD-710-04983
...
169
CYLINDER HEAD GASKET MTD-951-11555
...
170
Cylinder Head Dowel Pin 10×16 MTD-715-04108
...
171
Push Rod MTD-951-10314
...
172
Tappet MTD-951-11607
...
173
Camshaft Assembly MTD-951-11741
...
188
GASKET KIT (EXTERNAL) (Incl.44,98,100,139-141,156,160) MTD-951-11710
...
189
Gasket Kit - Complete (Incl.41,44,72,78,98,100,105,139-141,156,160,169) MTD-951-11709
...
190
COMPLETE ENGINE 139cc MTD-952Z1P65BU
