Troy-Bilt 1P61P0 Engine Troy-Bilt OHV Engine

Model: 1P61P0 Engine

Save Part Not Listed?
product name

Engine Assembly 1P61P0

...
...
1
FUEL TANK MTD-951-10337
...
2
SPARK ARRESTOR MTD-951-10351A
...
3
Rubber Fuel Tank Mounting Washer MTD-951-10335
...
4
Spark Plug MTD-951-10292A
...
5
Dipstick Assembly MTD-951-10617
...
6
CYLINDER HEAD ASSEMBLY MTD-951-10743
...
7
SHORTBLOCK ASSEMBLY MTD-951-10851
...
8
STOP SWITCH BRAKE ASSEMBLY MTD-951-10740
...
9
Recoil Spring and Pulley Assembly MTD-951-10319
...
10
Push Rod Kit MTD-951-10314
...
11
Valve Kit MTD-951-10313
...
12
Oil Drain Plug and Washer Assembly MTD-951-10370
...
13
Ignition Coil MTD-951-10367
...
14
Carburetor Assembly MTD-951-10883
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assembly Complete MTD-951-10882
...
17
Carb Stud M6x92 MTD-710-05093
...
18
Fuel Line Kit - Inc. hose & clamps MTD-951-10363
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap Assembly MTD-951-10300
...
21
Recoil Starter Assembly MTD-951-10299A
...
22
Air Filter Assembly MTD-951-10298
...
22
Cub Cadet AIR FILTER Retail Packaged Part MTD-OCC-751-10298
...
22
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10298
...
23
Governor Return Spring MTD-951-10387
...
24
MUFFLER GUARD MTD-951-10404
...
25
Muffler Assembly MTD-951-10403
...
26
Muffler Gasket /Heat Shield MTD-951-10402
...
27
FUEL TANK BRACKET MTD-951-11543
...
xx
CYLINDER HEAD SERVICE KIT Not Shown MTD-951-10744
...
xx
CHOKE CARB KIT Not Shown MTD-951-12829
...
xx
GASKET KIT (COMPLETE) Not Shown MTD-951-10884
...
xx
GASKET KIT (EXTERNAL) Not Shown MTD-951-10885
...
xx
COMPLETE ENGINE 123cc Not Shown MTD-952Z1P61P0
...
xx
Throttle Linkage Spring Not Shown MTD-951-11522
...
xx
Flywheel Not Shown MTD-951-11043

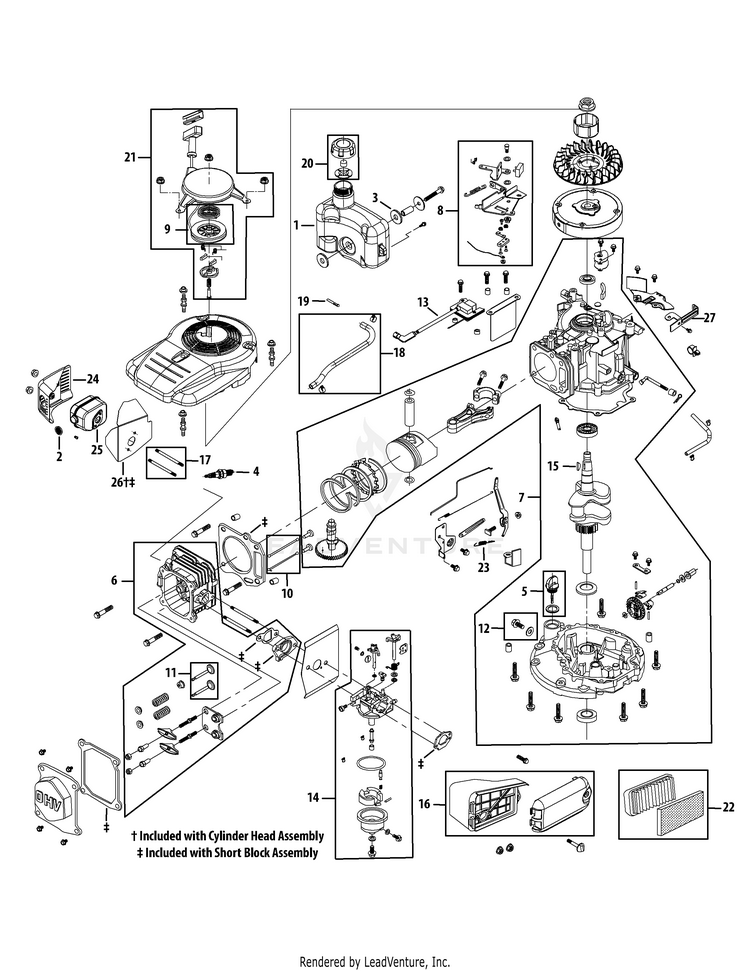

Schematic Image Zoomed
