Troy-Bilt 1P51RUA 79cc Engine Edger

Model: 1P51RUA 79cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

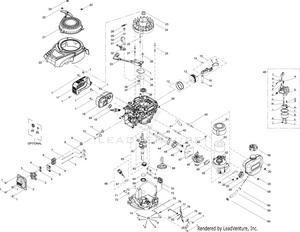

1P51RUA General Assembly

...
...
1
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
2
VALVE COVER MTD-751P15154B
...
3
ROCKER ARM MTD-951-11606A
...
4
VALVE RETURN SPRING MTD-908-04094A
...
5
PUSH ROD GUIDE MTD-751P15178A
...
6
VALVE SPRING MTD-751P12004A
...
7
PUSH ROD MTD-751P15177A
...
8
TAPPET MTD-951-11607A
...
9
INTAKE VALVE SEAL MTD-921-04237A
...
10
EXHAUST VALVE MTD-951-14641A
...
11
INTAKE VALVE MTD-951-14640A
...
12
PISTON RING SET MTD-751P19470A
...
13
PISTON MTD-751P19468A
...
14
WRIST PIN CLIP MTD-951-11603A
...
15
CONNECTING ROD MTD-651P05335A
...
16
PISTON PIN MTD-751P19469A
...
17
MUFFLER GUARD MTD-751P15133B
...
18
MUFFLER MTD-751P22238
...
19
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
20
HEX NUT MTD-712-05015
...
21
STARTER RECOIL ASSEMBLY MTD-951-05320A
...
22
ENGINE SHROUD MTD-631P05345A
...
23
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
24
ENGINE FLYWHEEL MTD-925-06190A
...
25
STUD M6 x 75 MTD-710-06208
...
26
BOLT M6-1 x 25 GR8.8 MTD-710-04919
...
27
STUD M6 x 73 MTD-710-06209
...
28
ENGINE BRAKE SPRING MTD-932-05379A
...
29
ENGINE BRAKE PIN M6-1.0 MM MTD-911-06531
...
30
FLAT WASHER 10x20x1.0 MM MTD-736-05145A
...
31
ENGINE BRAKE ARM MTD-951-15098
...
32
ENGINE BRAKE LOWER BRACKET MTD-951-05306
...
33
IGNITION COIL MTD-925-06488
...
34
BREATHER COVER PLATE MTD-708-05172
...
35
BREATHER GASKET MTD-721-04830A
...
36
BREATHER VALVE SPRING MTD-732-04718A
...
37
BREATHER VALVE MTD-951-11614A
...
38
UPPER SEAL MTD-921-04700A
...
39
CRANKCASE MTD-751P19471
...
40
FUEL TANK MOUNTING STUD M6X59.5 2 MTD-751P15136
...
41
BREATHER HOSE MTD-735P05144
...
42
BOLT M6 x 16 MTD-710-04968
...
43
BOLT M6X80 MTD-710-06220
...
44
CARBURETOR INSULATION GASKET MTD-721-04833A
...
45
CARBURETOR INSULATOR MTD-751P15138A
...
46
BOLT M6X20 MTD-710-06195
...
47
CARBURETOR GASKET MTD-721-04832A
...
48
CARBURETOR MTD-651P08615
...
49
AIR FILTER BASE GASKET MTD-951-14419A
...
50
Not Serviceable/ Components Only MTD-NSCO
...
51
AIR FILTER COVER MTD-931-11695A
...
52
AIR FILTER BASE MTD-931-05507A
...
53
AIR FILTER - FOAM MTD-951-15137A
...
54
PRIMER HOSE MTD-735P05143
...
55
PRIMER ASSEMBLY MTD-951-05177A
...
56
FUEL CAP ASSEMBLY MTD-651P05182
...
57
FUEL TANK MTD-751P22415
...
58
FUEL FILTER MTD-951-12296A
...
59
FUEL HOSE MTD-735P05142A
...
60
CARBURETOR HOSE CLAMP MTD-951-11700A
...
61
CRANKSHAFT MTD-751P15141
...
62
WOODRUFF KEY MTD-751P10307A
...
63
GEAR MTD-931-10288A
...
64
THRUST WASHER MTD-736-04491A
...
65
LOWER CRANKSHAFT SEAL MTD-751P22208
...
66
DIPSTICK ASSEMBLY MTD-651P05334A
...
67
DIPSTICK SEAL MTD-721-04839A
...
68
CAMSHAFT MTD-751P19473A
...
69
GOVERNOR GEAR MOUNTING PLATE 1 MTD-951-11609A
...
70
GEAR GOVERNOR MTD-951-05336A
...
71
OIL DRAIN PLUG MTD-710-04906
...
72
FLAT WASHER MTD-736-04440A
...
73
DOWEL PIN 7X20 MTD-715-05058
...
74
CRANKCASE COVER MTD-751P15152A
...
75
THROTTLE LINKAGE MTD-751P15144
...
76
THROTTLE LINKAGE SPRING MTD-732P05411
...
77
GOVERNOR ARM SHAFT MTD-751P15143
...
78
GOVERNOR ARM ASSEMBLY MTD-651P05327
...
79
GOVERNOR SPRING MTD-951-14411
...
80
COMPONENT BRACKET MTD-708-05179
...
81
GOVERNOR SEAL MTD-751P15150
...
82
COTTER PIN MTD-714-04078A
...
83
CRANKSHAFT MTD-651P05347
...
84
MUFFLER GASKET MTD-751P22239
...
85
SPARK ARRESTOR MTD-951-10351A
...
86
SCREW M3.5 x 9.5 MTD-710-04983
...
48
CARBURETOR MTD-651P08615
...
a
Idle Jet Assembly MTD-NA
...
b
CARB BODY HOUSING MTD-751P22241
...
c
NEEDLE VALVE MTD-793P00165A
...
d
NEEDLE VALVE SPRING MTD-732P05138A
...
e
FLOAT PIN MTD-711P06053A
...
f
FLOAT BOWL O-RING MTD-721-04710A
...
g
FUEL BOWL MTD-608P05002
...
h
FUEL BOWL GASKET MTD-951-11348A
...
i
BOLT M8-1 x 10 MTD-710-04945
...
j
FUEL DRAIN PLUG MTD-710-04938
...
k
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
l
FLOAT MTD-731P09155A
...
m
Main Jet MTD-NA
...
n
Emulsion Tube MTD-NA
...
o
SPEED IDLE SCREW MTD-710P06038A
...
p
CARB SHAFT GASKET MTD-721P04714A
...
q
SCREW-3Mx6 MTD-710-06230
...
r
LOCK WASHER 3MM MTD-736P05209A
...
s
THROTTLE PLATE MTD-708P05096A
...
t
THROTTLE SHAFT MTD-711P06814
...
xx
COMPLETE ENGINE MTD-752Z1P51RUA
...
...
...
