Troy-Bilt 18617 Tine Extension Kit Tractor

Model: 18617 Tine Extension Kit

Save Part Not Listed?
product name

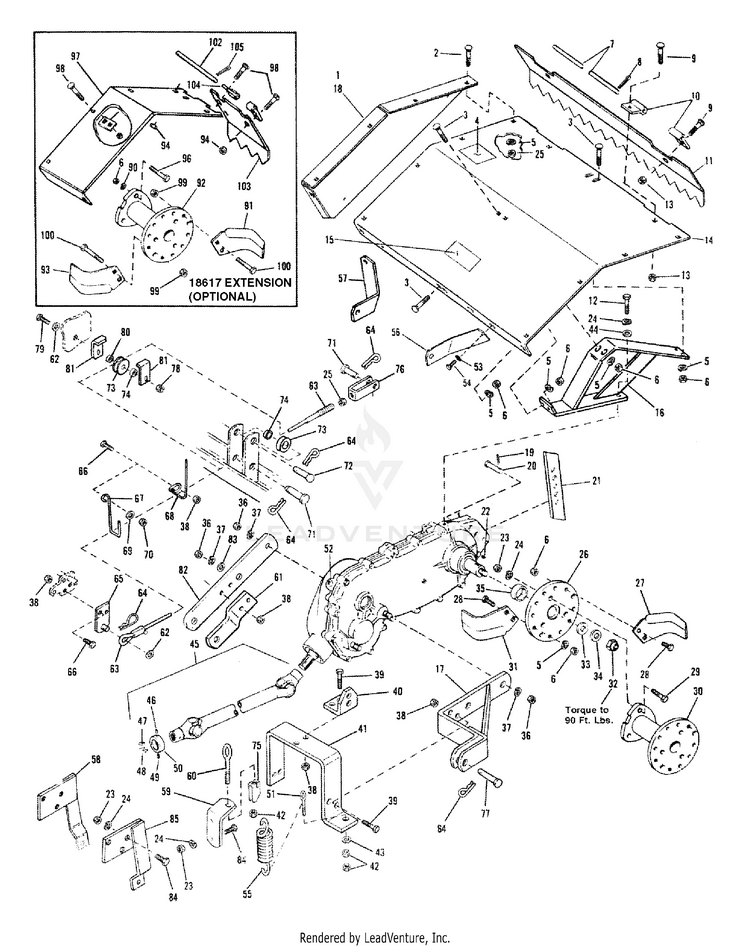

General Assembly

...
...
1
Hood, Right Side MTD-1723035
...
2
SCR-CARR 3 MTD-1739656
...
3
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-3168
...
4
DECAL-LOGO MTD-1745889
...
5
L-Wash. 3/8" I.D." Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0169
...
6
Hex Lock Nut, 3/8-16 MTD-712-3000
...
7
HINGE PIN MTD-1723031
...
8
Cotter Pin, 3/32 x .75 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-914-0507
...
9
CARRIAGE BOLT 5/16-18 x .75 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-0451
...
10
HOOD HINGE MTD-1718196
...
11
Leveling Board MTD-1723504
...
12
Hex Cap Screw, 1/2-13 x 1.25 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-3032
...
13
NUT-HFLK 5/16-18 ZP Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-04054
...
14
HOOD MTD-1729229
...
15
DECAL-OPEI CAUTION {8656R} MTD-1739687
...
16
Support Assembly MTD-1729222
...
17
Hitch Arm Assembly MTD-1744960
...
18
Hood, Left Side MTD-1723034
...
19
Pin, Cotter, 1/8 x 1.00 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-714-0115
...
20
CLEVIS PIN MTD-1186431
...
21
Shoe Center MTD-1718189
...
22
PIN-CLIP Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1717897
...
23
HEX NUT Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-0206
...
24
Lock Washer, 1/2 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0921
...
25
HEX NUT/JA Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1186259
...
26
Tiller Hub MTD-1727907
...
27
TINE (LH) MTD-1709388
...
28
SCREW 3/8-16 x 1.25 GR5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-3005
...
29
710-3067SC Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100065
...
30
Spacer MTD-1718138
...
31
TINE (RH) TR TLR ATT MTD-1709387001
...
32
HEX NUT LO MTD-1186435
...
33
WASHER-SPACER MTD-1718765
...
34
WASHER-1.4 MTD-1800041
...
35
SLEEVE MTD-1718170
...
36
Nut, 5/8 Jam Type 5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-3015
...
37
WASHER-LK Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100247
...
38
Flange Nut 3/8-16 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1186393
...
39
SCR HFLK 3 MTD-1186350
...
40
Cable Anchor Bracket MTD-1744953
...
41
Lift, Bracket MTD-1744954
...
42
HEX NUT 5/16-18 MTD-712-3010
...
43
FLAT WASHER MTD-736-0275
...
44
Flat Washer,.510 x 1.00 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0326
...
45
Drive Shaft Assembly (Included with Ref. Nos. 46 thru 50) MTD-1744925
...
46
PIN-DRIVE MTD-1118922
...
47
WASHER-THRUST MTD-1725334
...
48
RETURN SPRING MTD-1862341
...
49
PIN-DRIVE .187X.37 MTD-1187762
...
50
Locking Collar MTD-1862340
...
51
EYE-BOLT MTD-1725199
...
52
PIPE PLUG MTD-1105678
...
53
WASHER-LK MTD-1104008
...
54
SCREW 3/8-16 x 1 GR5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-0514
...
55
Extension Spring MTD-1714844
...
56
Support Bracket L.H. MTD-1723029
...
57
Support Bracket R.H. MTD-1729239
...
58
ASSM-ARM HITCH RH MTD-1733855
...
59
Spring support MTD-1744928
...
60
Eye Bolt MTD-1744929
...
61
Plate MTD-1744961
...
62
Flat Washer,.510 x 1.00 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0326
...
63
Lift Cable MTD-1744967
...
64
HITCH PIN MTD-1723478
...
65
Lift Arm Assembly MTD-1744936
...
66
Hex Flange Screw, 3/8-16 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-04042
...
67
CABLE GUIDE MTD-1731956
...
68
Cable Guide (Gear Models) MTD-1746225
...
69
Flat Washer, .406 x 1.0 x .105 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-3052
...
70
Hex Cent. L-Nut 3/8-16 Thd. Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-0375
...
71
CLEVIS PIN .5X1.25 MTD-1730851
...
72
CLEVIS PIN MTD-1890227
...
73
Roller MTD-1734508
...
74
SPACER-.75 MTD-1734509
...
75
Spring Bracket MTD-1730596
...
76
YOKE CABLE MTD-1734192
...
77
CLEVIS PIN .624 MTD-711-0174
...
78
Hex Lock Nut, 1/2-13 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-3022
...
79
SCR-HH 1/2 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100056
...
80
SPACER-.87 MTD-1744899
...
81
CABLE RETAINER MTD-1744952
...
82
Arm Support MTD-1744955
...
83
FLAT WASHER MTD-1185847
...
84
Hex Cap Screw, 1/2-13 x 1.25 MTD-710-3032
...
85
Hitch Arm Assembly L.H. MTD-1733854
...
90
Lock Washer, 1/2 MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0921
...
?91
TINE (LH) MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1709388
...
92
Spacer MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1718138
...
93
TINE (RH) TR TLR ATT MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1709387001
...
94
NUT-HFLK 5/16-18 ZP MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-712-04054
...
?95
HEX NUT MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-0206
...
96
710-3067SC MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100065
...
97
Hood Extension MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1729028
...
98
SCREW-CARR MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1186098
...
99
Hex Cent. L-Nut 3/8-16 Thd. MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-0375
...
100
SCREW 3/8-16 x 1.25 GR5 MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-3005
...
?101
CONNECTOR-HOOD MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1718207
...
102
PIN-TINE HINGE MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1718199
...
103
Leveling Board Extension MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1729030
...
104
HINGE-TINE MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-1718197
...
105
Cotter Pin, 3/32 x .75 MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-914-0507
...
xx
Spray Paint, Dark Green NI; MODEL 18617-03 TINE EXTENSION ASSEMBLY CONSISTS OF THE FOLLOWING MTD-160305
