Troy-Bilt 17WF2ACP011 Mustang XP (2012) 17-Z Series

Model: 17WF2ACP011 Mustang XP (2012)

Back To Assemblies

Save Part Not Listed?
product name

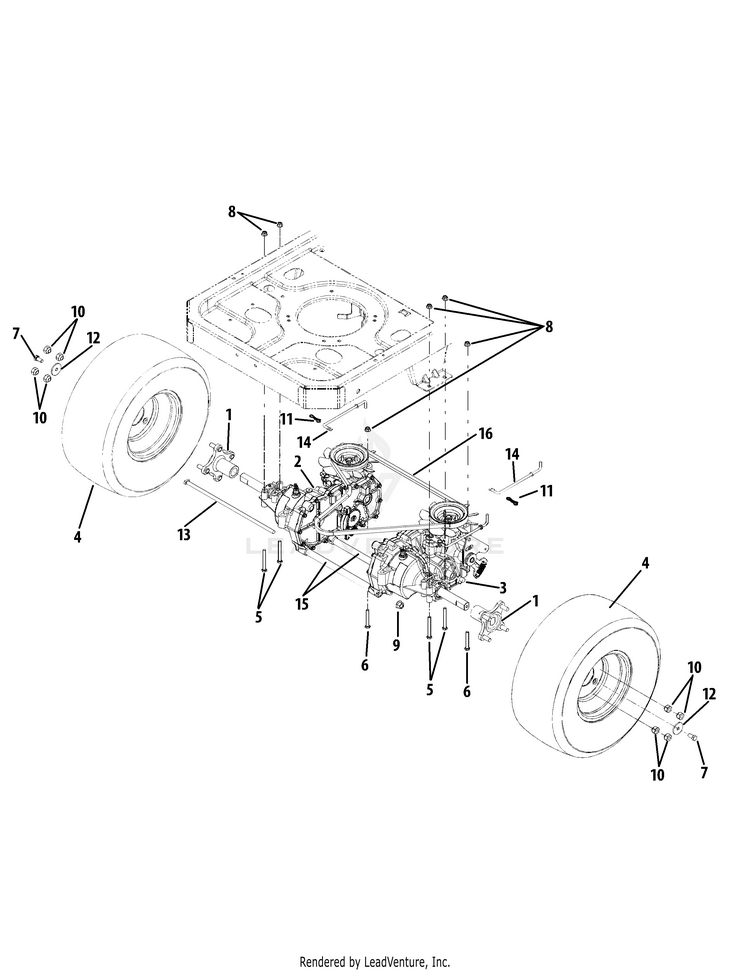

Rear Drive & Wheels

...
...
1
Wheel Hub, 7/16-14 x 1.6 MTD-918-04317
...
2
TRANSMISSION (LH) MTD-918-04431B
...
2
Neutral Return Spring Not shown MTD-732-04448
...
3
TRANSMISSION (RH) MTD-918-04432B
...
3
Neutral Return Spring Not shown MTD-732-04448
...
4
WHEEL ASSEMBLY (18 x 8.5-8) (OYSTER-DELI) MTD-634-04293-0916
...
4
Tire Only 18 x 8.5-8 DELI Not shown MTD-734-04246-0906
...
4
REAR RIM (OYSTER GRAY) Not shown MTD-603-04173-0662
...
4
TUBELESS VALVE Not shown MTD-934-0255
...
4
Wheel Assembly, 18 x 9.5-8 (50" Deck) MTD-634-04128-0911
...
4
TIRE-18X9.5-8 SQ SH Not shown MTD-734-1729-0901
...
4
8" RIM (OYSTER GREY) Not shown MTD-603-07581-0662
...
4
TUBELESS VALVE Not shown MTD-934-0255
...
5
Hex Cap Screw, 5/16-18 x 2.75 MTD-710-0176
...
6
Hex Cap Screw, 5/16-18 x 2.25 MTD-710-0395
...
7
Hex Cap Screw, 3/8-16 x .75 MTD-710-3119
...
8
Hex Flange Nut, 5/16-18 MTD-712-04063
...
9
Hex Flange Nut, 7/16-20 MTD-712-0459
...
10
Lug Nut, 7/16-14 MTD-712-3050
...
11
Bow-Tie Cotter Pin MTD-714-04040
...
12
WASHER:FLAT: .390 x 1.50 x .134 MTD-736-0227
...
13
Rod, .405 x 14.0 MTD-738-04192B
...
14
Bypass Rod MTD-747-04217C-0637
...
15
SUPPORT TUBE MTD-750-04561A
...
16
TRANSMISSION DRIVE BELT A x 57.3 MTD-954-04043B
