Troy-Bilt 17CDCACW066 Mustang XP 54 (2017) 17-Z Series

Model: 17CDCACW066 Mustang XP 54 (2017)

Back To Assemblies

Save Part Not Listed?
product name

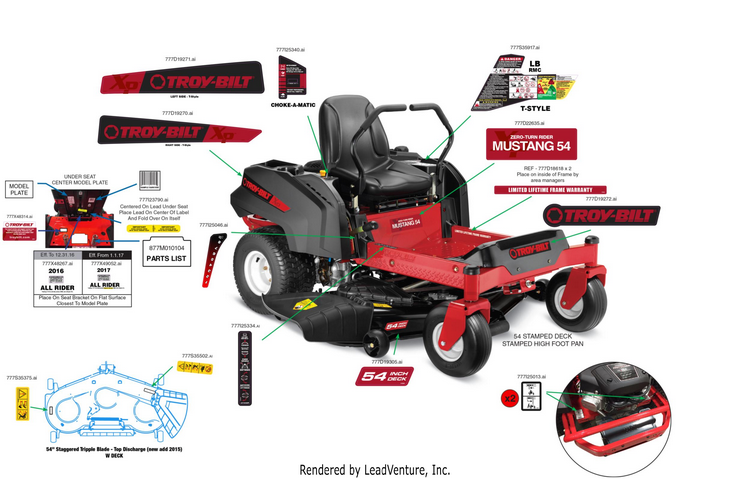

Label Map

...
...
xx
LABEL-RZT TROYBILT XP RIGHT POD MTD-777D19270
...
xx
LABEL-RZT TROYBILT XP LEFT POD MTD-777D19271
...
xx
LABEL-TROYBILT RED ON (FLINT MICA) MTD-777D19272
...
xx
LABEL-54" DECK RED MTD-777D19305
...
xx
LABEL-ZTR MUSTANG 46 SEAT BOX MTD-777D22635
...
xx
LABEL-EXCESS WIRE TUCK MTD-777I23790
...
xx
LABEL-TRANSMSN RELEASE MTD-777I25013
...
xx
LABEL-DECK HEIGHT T-BLT MTD-777I25046
...
xx
LABEL-LAPBAR POSITIONS MTD-777I25334
...
xx
LABEL-METER & THROT/CHK RED MTD-777I25340
...
xx
LABEL-RIDER SAFETY OFF SIDE DECK MTD-777S35375
...
xx
LABEL-CHUTE SAFETY MTD-777S35502
...
xx
LABEL-STARTING INST LH POD RZT-L MTD-777S35917
...
xx
LABEL-TROYBILT.COM RZT/RIDER MTD-777X48314
...
xx
LABEL-RDR EMISSIONS 2016 MTD-777X48267
...
xx
LABEL-RDR EMISSIONS 2017 MTD-777X49052
