Troy-Bilt 17BE2ACG066 Colt XP (2009) 17-Z Series

Model: 17BE2ACG066 Colt XP (2009)

Back To Assemblies

Save Part Not Listed?
product name

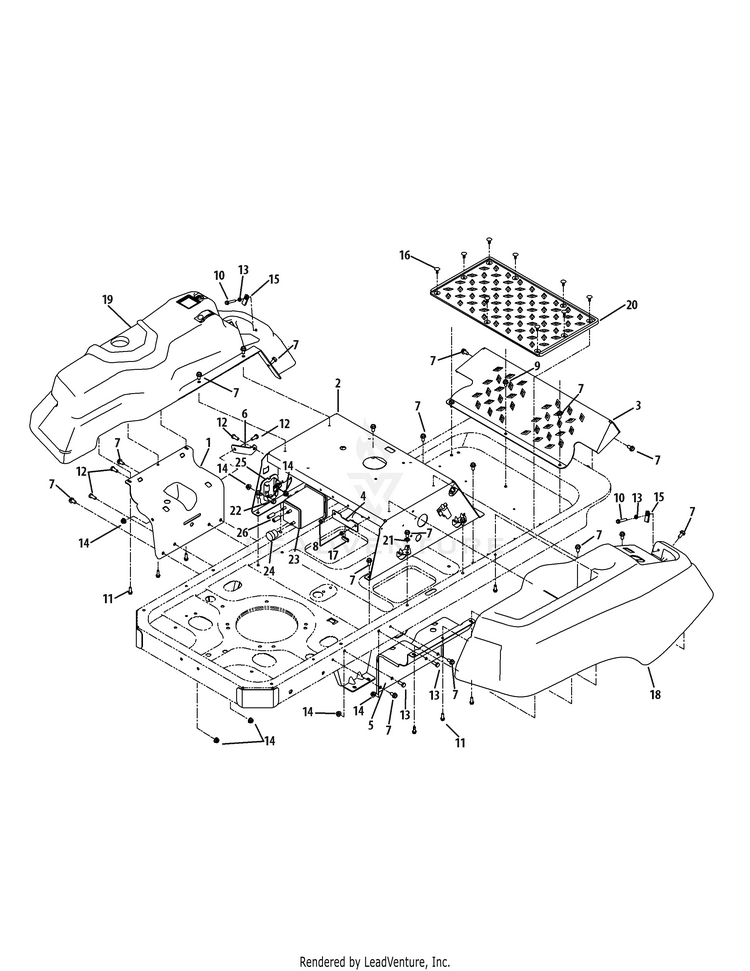

Operator's Platform

...
...
1
CONSOLE BRACKET (LH) (FLINT MICA) MTD-603-04564-4033
...
2
SEAT FRAME ASSEMBLY (MTD RED) MTD-603-04663-0638
...
3
FOOT REST BRACKET(POWDER BLACK) MTD-703-05373B-0637
...
4
Battery Hold-Down Bracket MTD-703-05894-0637
...
5
CONSOLE BRACKET (RH) (FLINT MICA) MTD-703-06451-4033
...
6
SUPPORT BRACKET MTD-703-06623-0637
...
7
SCREW 5/16-18 x .750 MTD-710-04484
...
8
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
9
Hex Washer Screw, 5/16-18 x .625 MTD-710-0604A
...
10
Hex Washer Screw, 1/4-20 x 1.500 MTD-710-0778
...
11
Hex Washer Screw, 1/4-15 x .750 MTD-710-0895
...
12
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
13
Jam Nut, 1/4-20 MTD-912-0298
...
14
Flange Lock Nut, 5/16-18 MTD-712-04063
...
15
Speed Nut, 1/4-20 MTD-712-04092
...
16
Ratchet Clip MTD-726-3046
...
17
Trim Strip MTD-731-0511
...
18
CONSOLE (RH) California Models Only MTD-731-06233
...
18
CONSOLE (RH) MTD-731-04663D
...
19
CONSOLE (LH) California Models Only MTD-731-06263B
...
19
CONSOLE (LH) MTD-731-04662E
...
20
Foot Pad MTD-735-04082C
...
21
Lock Washer, 3/8 MTD-736-0148
...
22
SCREW 5/16-18 x .875 GR5 HXFLG HD California Models Only MTD-710-1238A
...
23
CARBON CANISTER California Models Only MTD-951-10589
...
24
Canister Filter Vent California Models Only MTD-951-10590
...
25
CARBON CANISTER ADAPTER BRACKET California Models Only MTD-951-10610
...
26
FUEL HOSE LO PERMEATION 28" California Models Only MTD-751-10750A-28
