Troy-Bilt 17BE2ACG066 Colt XP (2009) 17-Z Series

Model: 17BE2ACG066 Colt XP (2009)

Back To Assemblies

Save Part Not Listed?
product name

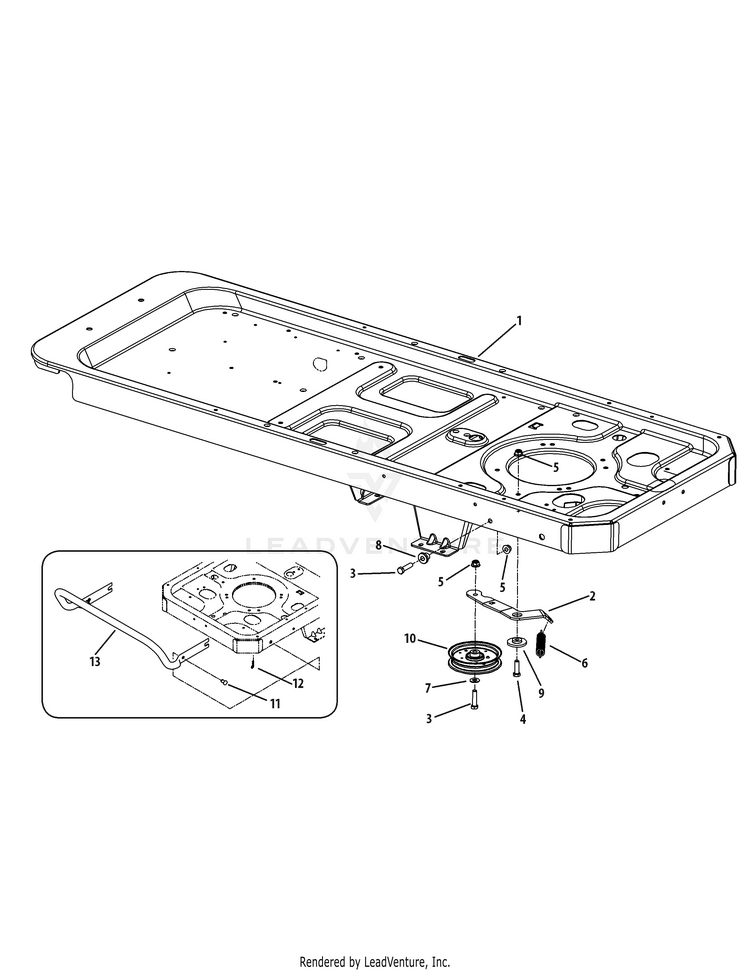

Frame Assembly

...
...
1
RZT FRAME (FLINT MICA) MTD-603-04680A-4033
...
2
Idler Arm, Drive MTD-703-05829
...
3
Hex Cap Screw, 3/8-16 x 1.5 MTD-710-0520
...
4
Hex Cap Screw, 3/8-16 x 1.25 MTD-710-3005
...
5
Hex Flange Lock Nut, 3/8-16 MTD-712-04065
...
6
Extension Spring, .75 x 5.06 MTD-732-0626
...
7
Fl-Wash. .385" I.D. MTD-736-0300
...
8
Shoulder Spacer, .38 x 1.0 x .7 MTD-738-04058
...
9
Shoulder Spacer, .8840 x .190 MTD-738-04162C
...
10
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
11
Clevis Pin, .50 x .78 MTD-911-0332
...
12
Pin, Click, .092 x 1.64 Lg MTD-714-04023
...
13
REAR BUMPER (POWDER BLACK) MTD-749-04358-0637
