Troy-Bilt 17BE2ACG066 Colt XP (2009) 17-Z Series

Model: 17BE2ACG066 Colt XP (2009)

Back To Assemblies

Save Part Not Listed?
product name

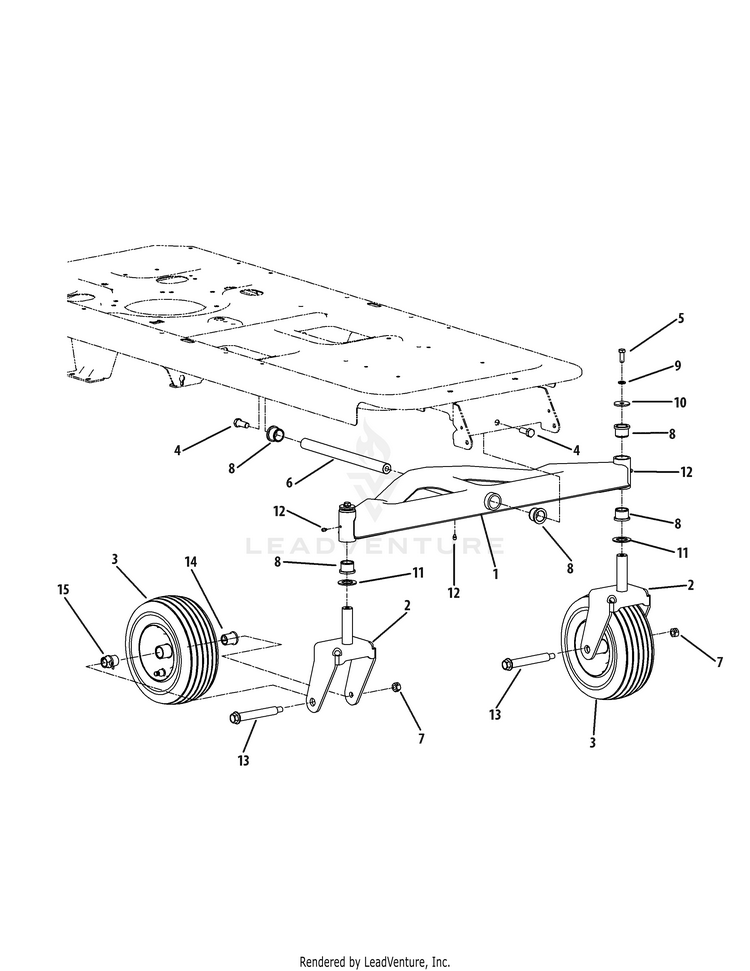

Front Axle

...
...
1
FRONT PIVOT AXLE (MTD RED) MTD-603-04148C-0638
...
2
CASTER YOKE (POWDER BLACK) MTD-603-04308A-0637
...
3
Wheel Assembly, 11.0 x 4.0 x 5.0 MTD-634-04237C
...
3
Air Valve Not shown MTD-934-0255
...
4
Hex Lock Screw, 1/2-13 x 1.25 MTD-710-04186
...
5
Hex Cap Screw, 3/8-16 x 1.0 MTD-710-0514
...
6
Axle Shaft MTD-911-04228
...
7
Hex Lock Nut, 1/2-13 MTD-712-3022
...
8
Flange Bearing, 1.0 x 1.246 MTD-731-05500
...
9
L-Wash. 3/8" I.D." MTD-736-0169
...
10
WASHER:FLAT: .390 x 1.50 x .134 MTD-736-0227
...
11
Flat Washer, 1.0 x 1.75 x .107 MTD-736-0250
...
12
Lube Fitting, 3/16 Drive MTD-937-3000
...
13
SHOULDER BOLT .750X4.75X1/2-13 MTD-738-04182B
...
14
Flange Bearing, .76 x 1.0 x 1.2 MTD-741-0516B
...
15
Flange Bearing, .76 ID w/Lube Ftg. MTD-741-0990B
