Troy-Bilt 17BE2ACG011 Colt XP (2009) 17-Z Series

Model: 17BE2ACG011 Colt XP (2009)

Back To Assemblies

Save Part Not Listed?
product name

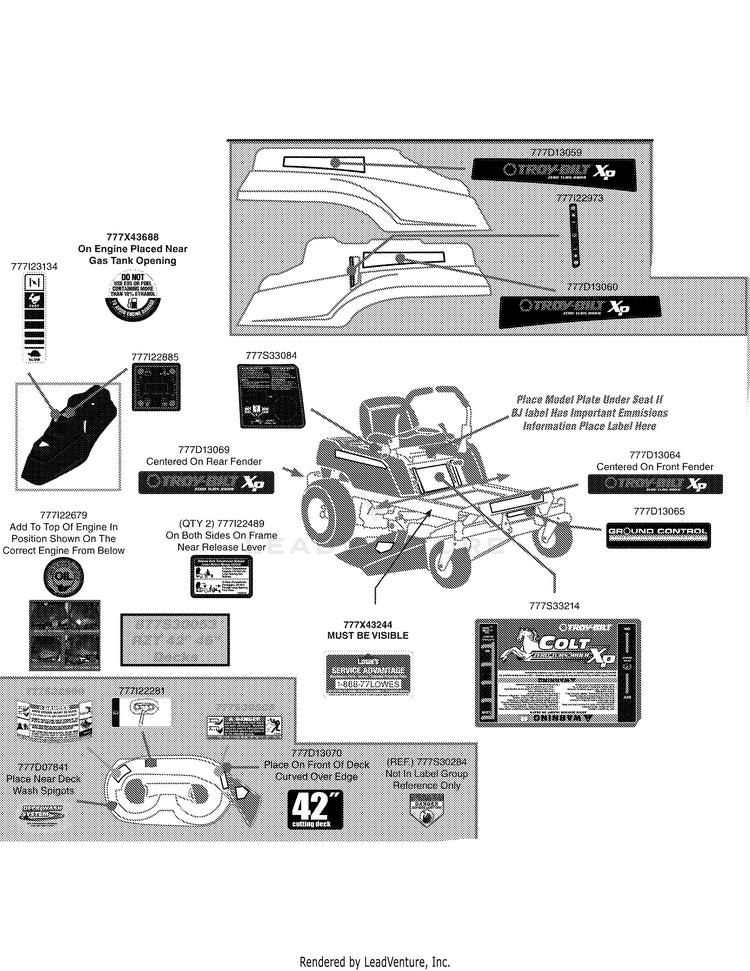

Label Map

...
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777I23134
LABEL-THROTT/CHOKE LH POD MTD-777I23134
...
777I22885
LABEL-HOUR METER LH POD MTD-777I25144
...
777S33084
LABEL-START INSTR RH POD MTD-777S33084
...
777D13069
LABEL-REAR FRAME TROY-BILT XP RZT MTD-777D13069
...
777I22679
LABEL-CHECK ENG OI MTD-777I22679
...
777I22489
LABEL-TRNMSN RELEASE RZT MTD-777I22489
...
777D07841
LABEL: RIDER DECK MTD-777D07841
...
777S32599
LABEL-RZT DECK WAR MTD-777S32599
...
777I22281
LABEL-BELT ROUTE MTD-977I22281
...
777S30503
LABEL-DANGER CHUTE MTD-777S30503
...
777D13070
LABEL-42"CUT FLINT T-BILT RZT MTD-777D13070
...
777S30284
LABEL MTD-977S30145
...
777X43244
LABEL-LOWE'S SERVICE ADVANTAGE MTD-777X43244
...
777S33214
LABEL-RDR SAFETY COLT XP RZT MTD-777S33214
...
777D13065
LABEL-RXT AXLE PIVOT TROY-BILT RXT MTD-777D13065
...
777D13064
LABEL-FRONT FRAME TROY-BILT XP RZT MTD-777D13064
...
777D13060
LABEL-TROY BILT XP LH POD MTD-777D15545
...
777I22973
LABEL-FUEL LEVEL (LH) POD RZT MTD-777I22973
...
777D13059
LABEL-TROY BILT XP RH POD MTD-777D15544
