Troy-Bilt 17BE2ACG011 Colt XP (2009) 17-Z Series

Model: 17BE2ACG011 Colt XP (2009)

Back To Assemblies

Save Part Not Listed?
product name

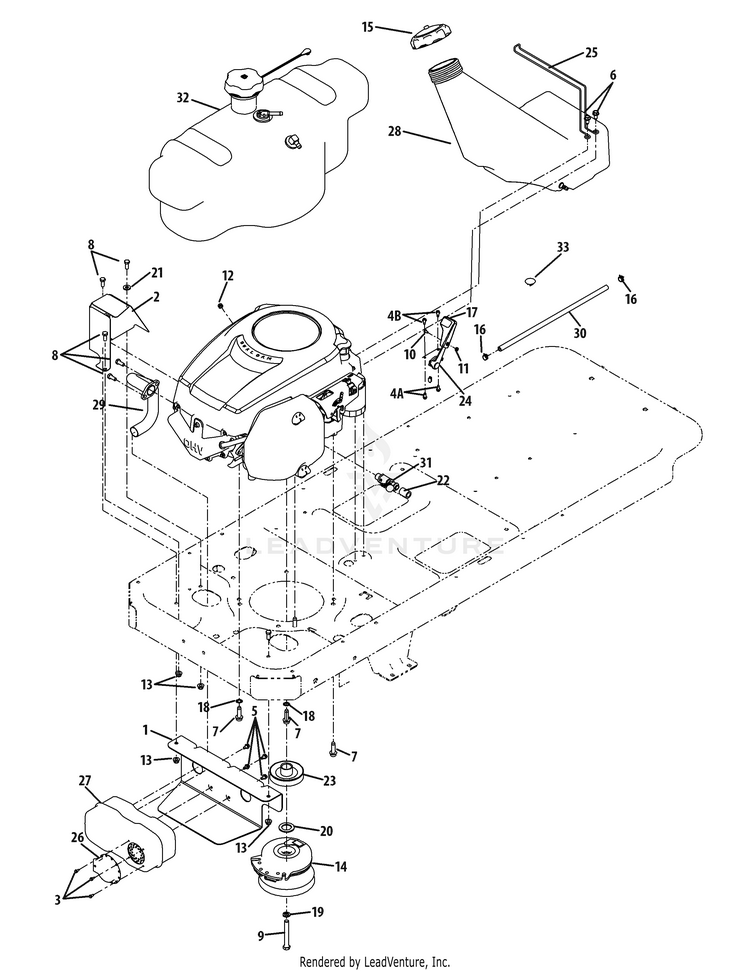

Engine Connections

...
...
1
Muffler Mounting Bracket MTD-703-05441A
...
2
HEAT SHIELD MTD-703-05870
...
3
Hex Washer Head Screw, #8-18 x .5 MTD-710-0227
...
4A
Hex Screw, #12-16 x .50 49-State Models MTD-710-04261
...
4B
AB Screw, 1.4-14 x .625 California Models Only MTD-710-1017
...
5
Hex Washer Head Screw, 1.4-20 x .5 MTD-710-0599
...
6
SCREW 5/16-18 x .750 49-State Models MTD-710-04484
...
7
Hex Screw, 3.8-16 x 1.250 MTD-710-1315
...
8
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
9
Hex Screw, 7.16-20 x 3.25 MTD-710-3157A
...
10
Machine Screw, #8-32 x .375 MTD-710-3217
...
11
Hex Nut, #8-32 MTD-712-0142
...
12
Sems Nut, 1.4-20 MTD-712-0271
...
13
Flange Lock Nut, 5.16-18 MTD-712-04063
...
14
Electric PTO Clutch MTD-917-04376A
...
15
Fuel Cap 49-State Models, replaces 951-3124D MTD-951-3124E
...
16
Hose Clamp, .490 MTD-726-0205
...
17
Throttle/Choke Control Knob MTD-731-04914
...
18
External Tooth Lock Washer, 3.8 MTD-736-0148
...
19
Lock Washer, 7.16 MTD-936-0171
...
20
Flat Washer, 1.031 x 1.620 x .095 MTD-736-0277
...
21
Flat Washer, .344 x .750 x .120 MTD-936-3008
...
22
Oil Drain Hose MTD-751-3141-14
...
23
PTO Pulley MTD-756-04376
...
24
Cable, Throttle, 39.0 Lg MTD-946-04161
...
25
FUEL TANK MOUNTING WIRE 49-State Models MTD-747-04228A
...
26
Muffler Deflector MTD-751-0564B
...
27
Single Inlet Muffler MTD-951-0617C
...
28
Fuel Tank 49-State Models MTD-751-10057D
...
29
Exhaust Pipe MTD-751-10251
...
30
FUEL HOSE 1/4-36" MTD-751-22813-36
...
31
Oil Drain MTD-951-10517A
...
32
FUEL TANK (2.82 GAL) California Models Only MTD-951-08858
...
32
Fuel Tank Bushing California Models Only MTD-935-0149
...
32
Rubber Grommet California Models Only MTD-735-04081
...
32
ROLLOVER FUEL VALVE California Models Only MTD-751-12118
...
32
Fuel Pick-Up Fitting California Models Only MTD-751-10442
...
32
Fuel Cap California Models Only MTD-951-12429
...
33
Choke Plug California Models Only MTD-731-1999
