Troy-Bilt 17BDCACW066 Mustang XP 54 (2016) 17-Z Series

Model: 17BDCACW066 Mustang XP 54 (2016)

Back To Assemblies

Save Part Not Listed?
product name

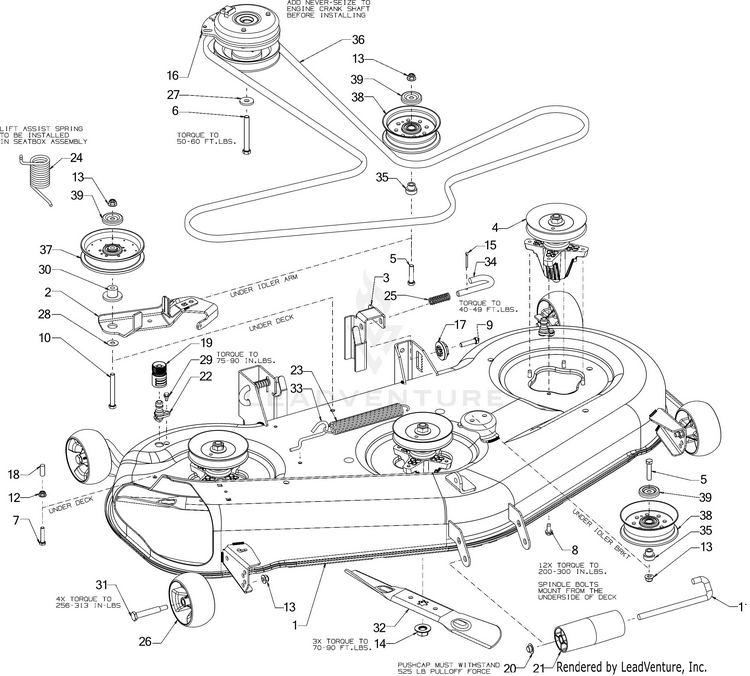

Deck

...
...
1
54" DECK SHELL MTD-903-05190C
...
2
BELT KEEPER (POWDER BLACK) (Not Shown) MTD-783-08690A-0637
...
2
DECK IDLER ASSEMBLY (POWDER BLACK) MTD-603-05350B-0637
...
3
DECK HANGER BRACKET (LH) MTD-603-05215A-0637
...
4
SPINDLE ASSEMBLY MTD-918-06978
...
4
DECK SPINDLE HOUSING (W/O FTG) (Not Shown) MTD-719-07293-M
...
4
FLANGE NUT 5/8-18 (Not Shown) MTD-712-05134
...
4
BLADE SPINDLE SHAFT STAR 6.11 LG (Not Shown) MTD-738-1186A
...
4
SPACER- .792 x 1.060 x 1.860 (Not Shown) MTD-750-04936
...
4
SPACER .792 x 1.060 x 1.782 (Not Shown) MTD-750-06152
...
4
SPINDLE PULLEY 5.57" DIA (Not Shown) MTD-756-05038
...
4
SHIELD-BRG DECK (Not Shown) MTD-783-08435
...
4
BALL BEARING (Not Shown) MTD-741P0919B
...
4
GENUINE FACTORY PARTS® 54" Spindle Assy with Hardware 618-06978 (6-Point) Retail Packaged Part MTD-490-130-F013
...
5
HEX SCREW 3/8-16 x 1.75 GR5 MTD-710-0347
...
6
SCREW 7/16-20 x 3.5 GR5 MTD-710-04379A
...
7
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
8
SCREW 5/16-18 x .750 MTD-710-1260A
...
9
SCREW 3/8-16X1.5 GR5 MTD-710-3120
...
10
SCREW 3/8-16 x 3.25 GR8 MTD-710-3130
...
11
ROLLER PIN 1/2 x 7.31 MTD-711-06377
...
12
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
13
NUT MTD-712-04065
...
14
HEX NUT MTD-712-0417A
...
15
COTTER PIN-5/32 DIA MTD-714-0162
...
16
ELECTRIC PTO CLUTCH MTD-917-05209
...
17
DECK ADJUSTMENT GEAR MTD-917-05298
...
18
VINYL CAP MTD-720-05075
...
19
WATER NOZZLE MTD-921-04041
...
20
PUSH CAP MTD-726-0299
...
21
ROLLER MTD-731-05679B
...
22
DECK WASH NOZZLE MTD-731-07487
...
23
EXTENSION SPRING MTD-732-04927
...
24
TORSION SPRING MTD-732-04947A
...
25
COMPRESSION SPRING MTD-932-3127
...
26
DECK WHEEL MTD-734-04155
...
26
GENUINE FACTORY PARTS® Deck Wheels (Narrow) SET 734-06305A Retail Packaged Part MTD-490-325-F073
...
27
FLAT WASHER .445 x 1.248 x .170 MTD-736-0322
...
28
FLAT WASHER MTD-736-0344
...
29
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502
...
30
SHOULDER SPACER MTD-738-05081
...
31
SHOULDER BOLT MTD-938-3056
...
32
18.61" BLADE (2N1) MTD-942-05056A
...
32
GENUINE FACTORY PARTS® 54" High-Lift Blade Set (6-Point Star Mount) 942-05056A Retail Packaged Part MTD-490-110-F143
...
32
54" 6 PT STAR LO LIFT/SAND BLADE MTD-742-05056-L0606
...
32
GENUINE FACTORY PARTS® 54" Low-Lift Sand Blade Set (6-Point Star Mount) 942-05056-L Retail Packaged Part MTD-490-110-F183
...
32
54" 6 PT STAR XTREME MULCH BLADE MTD-942-05056-X
...
32
GENUINE FACTORY PARTS® 54" Xtreme® Mulching Blade Set (6-Point Star Mount) 942-05056-X Retail Packaged Part MTD-490-110-F179
...
33
DECK SPRING HOOK MTD-747-05608A
...
34
DECK RELEASE PIN MTD-747-06292
...
35
SHOULDER SPACER MTD-748-05029A
...
36
V-BELT B SEC x 148.25 LG MTD-954-04329A
...
36
GENUINE FACTORY PARTS® 54" RZT Deck Belt 754-04329A, 954-04329A Retail Packaged Part MTD-490-501-F067
...
37
FLAT IDLER PULLEY MTD-756-04511B
...
38
IDLER PULLEY 4.50" DIA MTD-756-05034A
...
39
IDLER PULLEY CAP MTD-783-08389
