Troy-Bilt 17BDCACW066 Mustang 54 XP (2015) 17-Z Series

Model: 17BDCACW066 Mustang 54 XP (2015)

Back To Assemblies

Save Part Not Listed?
product name

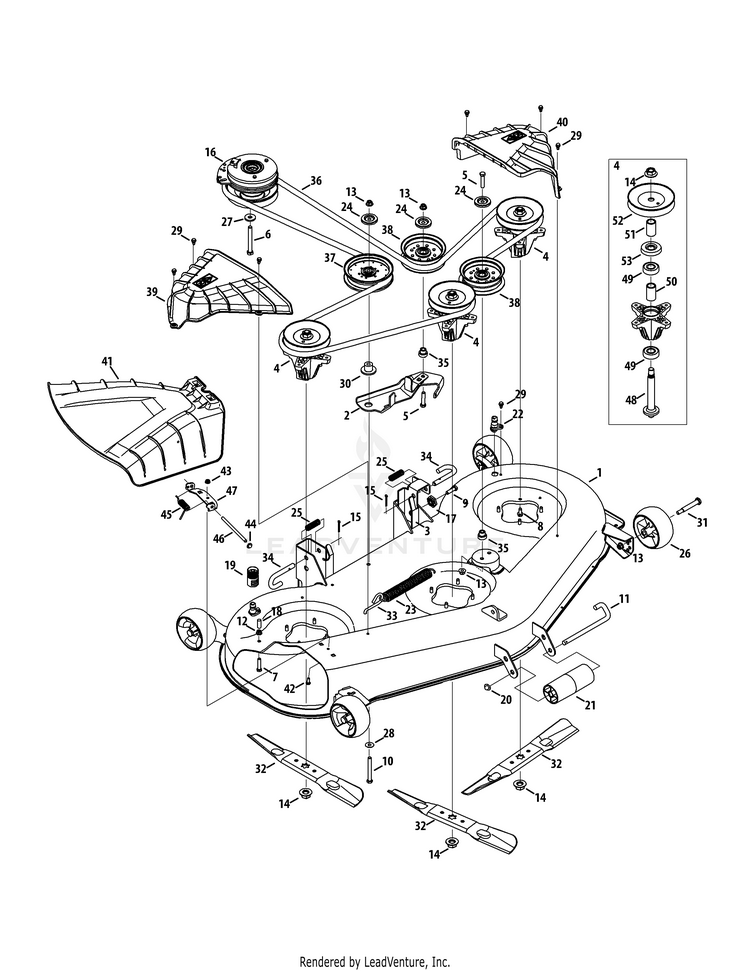

Mower Deck 54-Inch

...
...
1
54" DECK SHELL MTD-903-05190C
...
2
DECK IDLER ASSEMBLY (POWDER BLACK) MTD-603-05350B-0637
...
3
DECK HANGER BRACKET (LH) MTD-603-05215A-0637
...
4
Spindle Assembly MTD-918-06978
...
4
GENUINE FACTORY PARTS® 54" Spindle Assy with Hardware 618-06978 (6-Point) MTD-490-130-F013
...
5
Hex Cap Screw, 3/8-16 x 1.75 MTD-710-0347
...
6
Hex Cap Screw, 7/16-20 x 3.50 MTD-710-04379A
...
7
Hex Head Screw, 5/16-18 x 1.50 MTD-710-0805A
...
8
Hex Washer Screw, 5/16-18 x .750 MTD-710-1260A
...
9
Hex Flange Screw, 3/8-16 MTD-710-3120
...
10
Hex Bolt 3/8-16 x 3.25" MTD-710-3130
...
11
Roller Pin, 1/2 x 7.31 Lg MTD-711-06377
...
12
Flange Lock Nut, 5/16-18 MTD-712-04063
...
13
Flange Lock Nut, 3/8-16 MTD-712-04065
...
14
HEX NUT MTD-712-0417A
...
15
Cotter Pin, 5/32 x 1.25 MTD-714-0162
...
16
Clutch, Electric PTO MTD-917-05209
...
17
Deck Adjustment Gear MTD-917-05298
...
18
Vinyl Cap, .29 x 1.00 MTD-720-05075
...
19
Water Nozzle Adapter MTD-921-04041
...
20
Push Cap, 1/2 MTD-726-0299
...
21
Front Roller MTD-731-05679B
...
22
Deck Wash Nozzle MTD-731-07487
...
23
Extension Spring, 1.25 OD x 1.751 MTD-732-04927
...
24
Pulley Cap MTD-783-08389
...
25
Compression Spring, .66 x 1.9 MTD-932-3127
...
26
Deck Ball Wheel, 5.0 MTD-734-04155
...
27
Flat Washer, .450 x 1.25 x .164 MTD-736-0322
...
28
FLAT WASHER MTD-736-0344
...
29
Shoulder Screw, 1/4-20 x 0.50 MTD-738-04502
...
30
Shoulder Spacer MTD-738-05081
...
31
Shoulder Screw, .5 x 2.5 x 3/8-16 MTD-938-3056
...
32
Blade, 18.67 MTD-942-05056A
...
32
GENUINE FACTORY PARTS® 54" High-Lift Blade Set (6-Point Star Mount) 942-05056A Retail Packaged Part MTD-490-110-F143
...
32
54" 6 PT STAR LO LIFT/SAND BLADE MTD-742-05056-L0606
...
32
GENUINE FACTORY PARTS® 54" Low-Lift Sand Blade Set (6-Point Star Mount) 942-05056-L Retail Packaged Part MTD-490-110-F183
...
32
54" 6 PT STAR XTREME MULCH BLADE MTD-942-05056-X
...
32
GENUINE FACTORY PARTS® 54" Xtreme® Mulching Blade Set (6-Point Star Mount) 942-05056-X Retail Packaged Part MTD-490-110-F179
...
33
DECK SPRING HOOK MTD-747-05608A
...
34
Deck Hanger Rod MTD-747-06292
...
35
Shoulder Spacer MTD-748-05029A
...
36
V-Belt MTD-954-04329A
...
36
GENUINE FACTORY PARTS® 54" RZT Deck Belt 754-04329A, 954-04329A Retail Packaged Part MTD-490-501-F067
...
37
Idler Pulley, 5.00 Dia. MTD-756-04511B
...
38
IDLER PULLEY 4.50" DIA MTD-756-05034A
...
39
SPINDLE COVER (RH) MTD-731-09968B
...
40
SPINDLE COVER (LH) MTD-731-09969C
...
41
Chute Deflector Assembly MTD-631-05116B
...
42
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
43
Nut, Flange Lock, 1/4-20, Nylon MTD-712-04064
...
44
PUSH CAP MTD-726-04009A
...
45
Spring, Torsion, .440 ID x 1.75 MTD-732-05261
...
46
Hinge Pin MTD-747-06290B
...
47
CHUTE MOUNTING BRACKET MTD-783-08504B
...
48
Spindle Shaft, 6.11 Long MTD-738-1186A
...
49
BALL BEARING MTD-741P0919B
...
50
Spacer, .792 x 1.060 x 1.860 MTD-750-04936
...
51
Spacer, .792 x 1.060 x 1.782 MTD-750-06152
...
52
Deck Pulley MTD-756-05038
...
53
Bearing Shield MTD-783-08435
