Troy-Bilt 17ARFACT066 Mustang Z46 (2021) Zero-Turn Rider

Model: 17ARFACT066 Mustang Z46 (2021)

Back To Assemblies

Save Part Not Listed?
product name

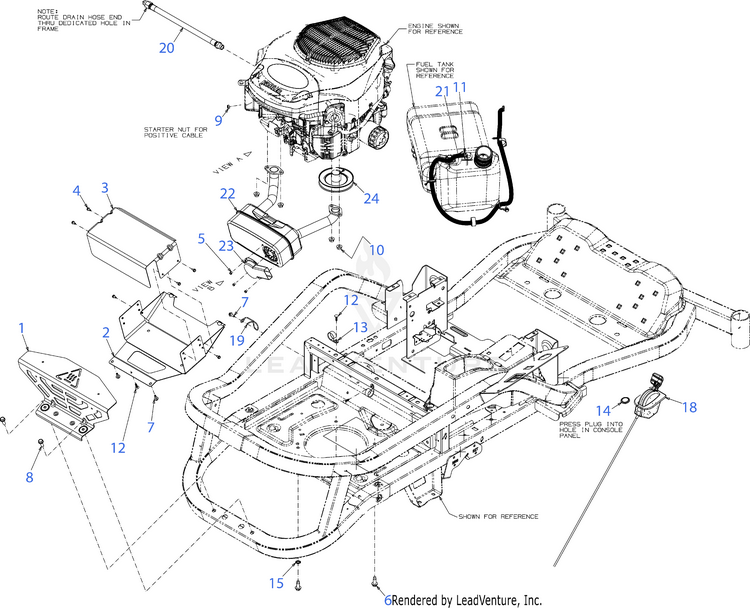

Engine Accessories

...
...
1
MUFFLER COVER (REAR) MTD-603P06299A
...
1
NUT RIVET 5/16-18 (Not Shown) MTD-728-05043
...
2
MUFFLER SHIELD (LOWER) MTD-703-16041A
...
3
MUFFLER SHIELD (TOP) MTD-703-16042A
...
4
HEX SCREW AB-TAP #10 x .50 MTD-910-0224
...
5
HEX SCREW WASHER HD #8-18 x 0.500 MTD-710-0227
...
6
SCREW 3/8-16 x 1 MTD-710-04683C
...
7
SCREW M6-1 x .625 MTD-710-06133
...
8
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
9
HEX NUT 1/4-20 MTD-712-05106
...
10
HEX FLANGE NUT M8X MTD-712-3086
...
11
HOSE CLAMP 1/20 MTD-726-0205
...
12
RATCHET CLIP (.188 x .85) MTD-726-04099A
...
13
DRAIN HOSE CLAMP MTD-726-04119
...
14
CHOKE PLUG MTD-731-09956
...
15
LOCK WASHER 3/8 MTD-736-0148
...
18
THROTTLE CABLE 51.0LG MTD-746P06891
...
19
HOSE GUIDE MTD-747-10050
...
20
OIL DRAIN HOSE (11.37" 3/8x1/4 NPT) (1/6/23 & After) MTD-751-15324B
...
20
OIL DRAIN HOSE W/VIBRA SEAL (1/6/23<BR/> & Before) MTD-751-10291D
...
21
FUEL HOSE 1/4-57" MTD-751-22813-57
...
22
EXHAUST MUFFLER (KH TWIN) MTD-751P10528E
...
23
EXHAUST DELECTOR (LONG) MTD-751-11053B
...
24
TRANSMISSION DRIVE PULLEY MTD-756-04494C
...
xx
OIL:SAE 10W30 MTD-NSOIL
...
xx
GENUINE FACTORY PARTS® 32 oz 10W30 oil Retail Package Part MTD-490-000-F044
