Troy-Bilt 17ARCACW011 Mustang XP 54 (2016) 17-Z Series

Model: 17ARCACW011 Mustang XP 54 (2016)

Back To Assemblies

Save Part Not Listed?
product name

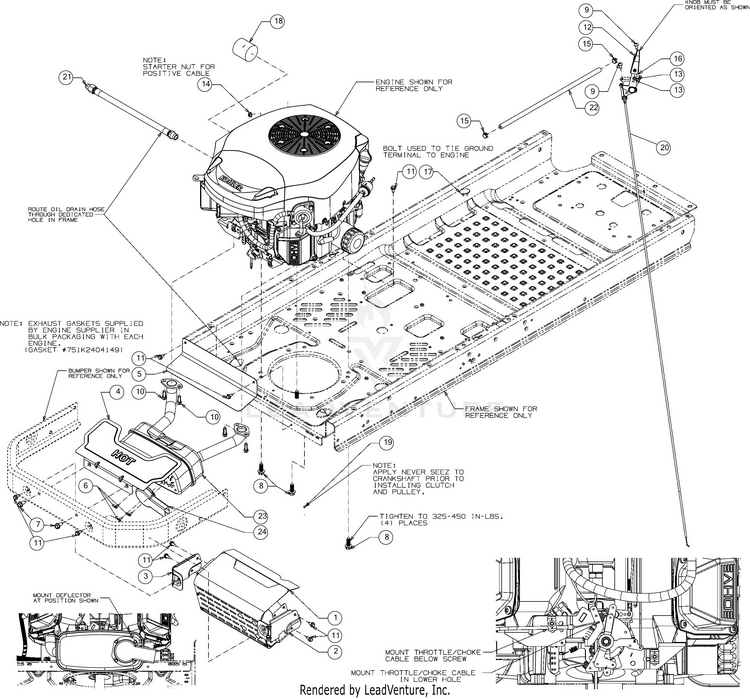

Engine Accessories

...
...
1
MUFFLER SHIELD W/EXTENSION (POWDER BLACK) MTD-603-05156C-0637
...
1
MUFFLER SHIELD (POWDER BLACK) (Not Shown) MTD-683-05460A-0637
...
2
MUFFLER SHIELD BRACKET (RH) MTD-703-08671B-0637
...
3
MUFFLER SHIELD BRACKET (LH) MTD-703-08695A-0637
...
4
Muffler Shield MTD-703-09083-0637
...
5
LOWER HEAT SHIELD MTD-703-09195
...
6
HEX SCREW WASHER HD #8-18 x 0.500 MTD-710-0227
...
7
SCREW 5/16-18 x .750 MTD-710-04484
...
8
SCREW 3/8-16 x 1 MTD-710-04683C
...
9
SCREW 1/4-20 x .5 MTD-710-05070A
...
10
SCREW 5/16-18 x .625 MTD-710-1314A
...
11
SCREW 1/4-20X.625 MTD-710-1652
...
12
SCREW #8-32X.38 LG MTD-710-3217
...
13
HEX NUT 8-32 MTD-712-0142
...
14
FLANGE LOCK NUT MTD-712-04064
...
15
HOSE CLAMP 1/20 MTD-726-0205
...
16
THROTTLE CONTROL KNOB MTD-731-09637
...
17
CHOKE PLUG MTD-731-1999
...
18
GENUINE FACTORY PARTS® 32 oz 10W30 oil MTD-490-000-F044
...
19
GREASe:ANTI-SIEZE MTD-NA
...
20
THROTTLE/CHOKE CABLE 57" MTD-946-05145
...
21
OIL DRAIN HOSE W/VIBRA SEAL MTD-751-10291D
...
22
FUEL HOSE 1/4-36" MTD-751-22813-36
...
23
EXHAUST MUFFLER (KH TWIN) MTD-751P10528E
...
24
EXHAUST DELECTOR (LONG) MTD-751-11053B
...
xx
EXHAUST MANIFOLD GASKET MTD-KH-25-041-17-S
