Troy-Bilt 17ARCACS011 Mustang XP 42 (2017) 17-Z Series

Model: 17ARCACS011 Mustang XP 42 (2017)

Back To Assemblies

Save Part Not Listed?
product name

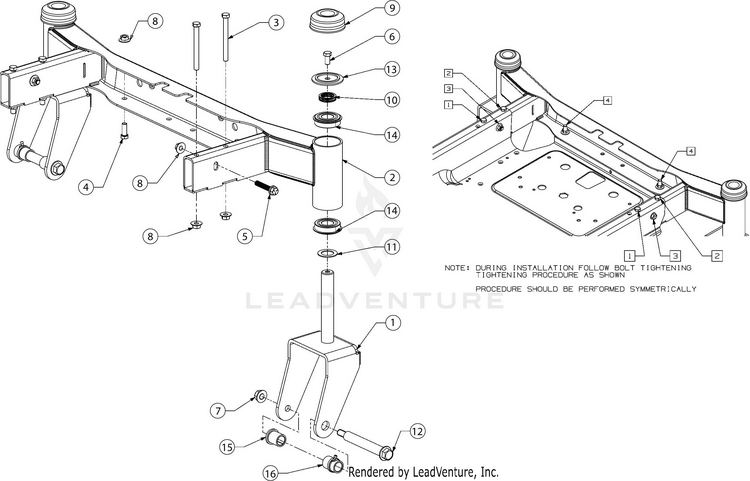

Front Axle

...
...
1
CASTER WHEEL YOKE (MTD RED) MTD-603-05057D-0638
...
2
FRONT AXLE (MTD RED) MTD-603-05134-0638
...
3
SCREW 3/8-16 x 3.75 GR5 MTD-710-04576
...
4
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
5
SCREW 3/8-16 x 2.00 GR5 MTD-710-06093
...
6
SCREW 3/8-16 x .75 GR 5 MTD-710-3119
...
7
NUT MTD-712-04150
...
8
FLANGE LOCK NUT MTD-712-04217
...
9
CASTER AXLE CAP MTD-731-09347
...
10
WAVE WASHER MTD-736-05033A
...
11
WASHER 1.010X1.560X.060 MTD-736-0745
...
12
SHOULDER BOLT .750X4.75X1/2-13 MTD-738-04182B
...
13
SHOULDER SPACER MTD-738-05091
...
14
BALL BEARING MTD-941-05022A
...
15
FLANGE BEARING MTD-741-0516B
...
16
FLANGE BEARING W/ZERK FITTING MTD-741-0990B
