Troy-Bilt 17ARCACS011 Mustang XP 42 (2017) 17-Z Series

Model: 17ARCACS011 Mustang XP 42 (2017)

Back To Assemblies

Save Part Not Listed?
product name

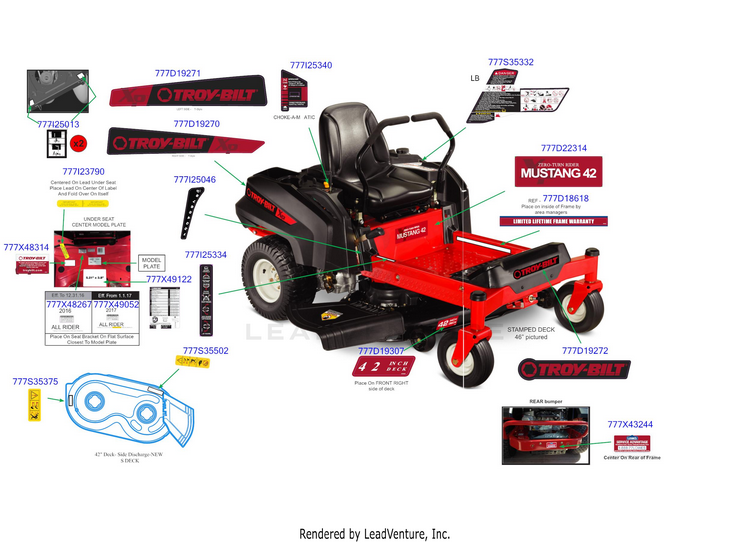

Label Map

...
...
777D18618
LABEL-LIMITED WARRANTY T-BLT MTD-777D18618
...
777D19270
LABEL-RZT TROYBILT XP RIGHT POD MTD-777D19270
...
777D19271
LABEL-RZT TROYBILT XP LEFT POD MTD-777D19271
...
777D19272
LABEL-TROYBILT RED ON (FLINT MICA) MTD-777D19272
...
777D19307
LABEL-42" DECK RED MTD-777D19307
...
777D22314
LABEL-ZTR MUSTANG 42 SEAT BOX MTD-777D22314
...
777I23790
LABEL-EXCESS WIRE TUCK MTD-777I23790
...
777I25013
LABEL-TRANSMSN RELEASE MTD-777I25013
...
777I25046
LABEL-DECK HEIGHT T-BLT MTD-777I25046
...
777I25334
LABEL-LAPBAR POSITIONS MTD-777I25334
...
777I25340
LABEL-METER & THROT/CHK RED MTD-777I25340
...
777S35332
LABEL-TROY SAFETY MTD-777S35332
...
777S35375
LABEL-RIDER SAFETY OFF SIDE DECK MTD-777S35375
...
777S35502
LABEL-CHUTE SAFETY MTD-777S35502
...
777X43244
LABEL-LOWE'S SERVICE ADVANTAGE MTD-777X43244
...
777X48267
LABEL-RDR EMISSIONS 2016 MTD-777X48267
...
777X48314
LABEL-TROYBILT.COM RZT/RIDER MTD-777X48314
...
777X49052
LABEL-RDR EMISSIONS 2017 MTD-777X49052
...
777X49122
LABEL-PARTS ZTR L 42 KH T-BILT MTD-777X49122
