Troy-Bilt 17ARCACS011 Mustang XP 42 (2017) 17-Z Series

Model: 17ARCACS011 Mustang XP 42 (2017)

Back To Assemblies

Save Part Not Listed?
product name

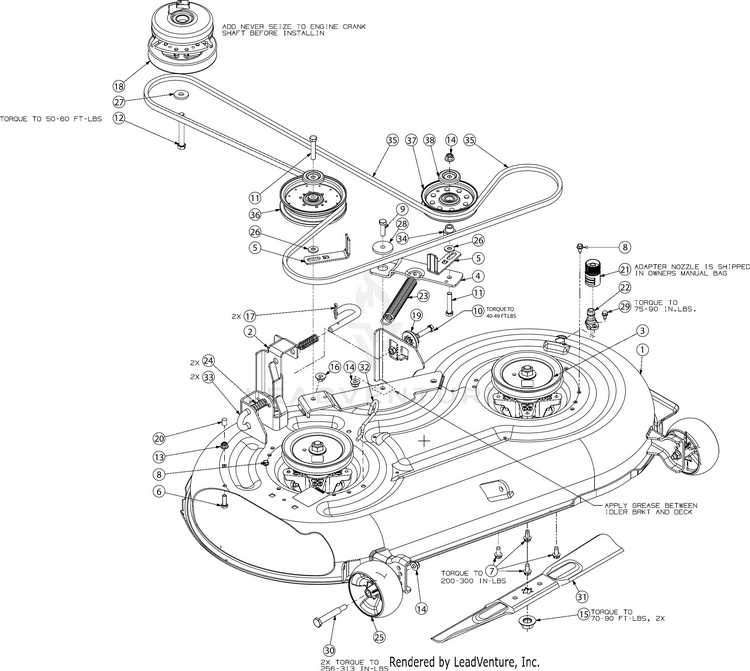

Deck

...
...
1
42" DECK KIT (05209) MTD-753-11241
...
2
DECK HANGER BRACKET (LH) MTD-603-05215A-0637
...
3
SPINDLE ASSEMBLY (See Separate Breakdown) MTD-918-04822B
...
3
GENUINE FACTORY PARTS® 30" & 42" SPINDLE ASSEMBLY. WITH HARDWARE : 618-04822A Retail Packaged Part MTD-490-130-F002
...
4
IDLER PIVOT BRACKET MTD-703-08336E
...
5
BELT GUARD BRACKET MTD-703-09583-0637
...
6
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
7
SCREW 5/16-18 x .750 MTD-710-1260A
...
8
SCREW 1/4-20X.625 MTD-710-1652
...
9
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005
...
10
SCREW 3/8-16X1.5 GR5 MTD-710-3120
...
11
SCREW 3/8-16 x 2.0 GR5 MTD-710-3144
...
12
SCREW 7/16-20 x 3.25 GR5 MTD-710-3157A
...
13
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
14
NUT MTD-712-04065
...
15
HEX NUT MTD-712-0417A
...
16
FLANGE LOCK NUT MTD-712-04217
...
17
COTTER PIN-5/32 DIA MTD-714-0162
...
18
ELECTRIC PTO CLUTCH MTD-917-05121
...
19
DECK ADJUSTMENT GEAR MTD-917-05298
...
20
VINYL CAP MTD-720-05010
...
21
WATER NOZZLE MTD-921-04041
...
22
DECK WASH NOZZLE MTD-731-07487
...
23
EXTENSION SPRING MTD-732-04960
...
24
COMPRESSION SPRING MTD-932-3127
...
25
DECK WHEEL MTD-734-04155
...
25
GENUINE FACTORY PARTS® Deck Wheels (Narrow) SET 734-06305A Retail Packaged Part MTD-490-325-F073
...
26
FLAT WASHER .385X.870X.090 MTD-736-0262
...
27
FLAT WASHER .445 x 1.248 x .170 MTD-736-0322
...
28
SHOULDER SPACER MTD-738-04162C
...
29
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502
...
30
SHOULDER BOLT MTD-938-3056
...
31
21.23" BLADE (2N1) MTD-942-04308A
...
31
GENUINE FACTORY PARTS® 42" High-Lift Blade Set (Star Mount) 742-04308, 742-04312 Retail Packaged Part MTD-490-110-F108
...
31
21.23" BLADE (2N1) (XTREME) MTD-742-04308-X684
...
31
42" 6 PT STAR LOW LIFT/SAND BLADE MTD-742-04312-L0606
...
31
GENUINE FACTORY PARTS® 42" Low-Lift Sand Blade Set (6-Point Star Mount) 942-04312-L, 942-04308-L Retail Packaged Part MTD-490-110-F180
...
32
DECK SPRING HOOK MTD-747-05608A
...
33
DECK RELEASE PIN MTD-747-06292
...
34
SHOULDER SPACER MTD-748-05029A
...
35
V-BELT A MTD-954-04033A
...
35
GENUINE FACTORY PARTS® 46" Deck Belt 954-04033A, 754-04033A Retail Packaged Part MTD-490-501-F115
...
36
FLAT IDLER PULLEY MTD-756-04511B
...
37
IDLER PULLEY 4.25 DIA MTD-756-05042
...
38
IDLER PULLEY CAP MTD-783-08389
