Troy-Bilt 17ARCACS011 Mustang 42 XP (2015) 17-Z Series

Model: 17ARCACS011 Mustang 42 XP (2015)

Back To Assemblies

Save Part Not Listed?
product name

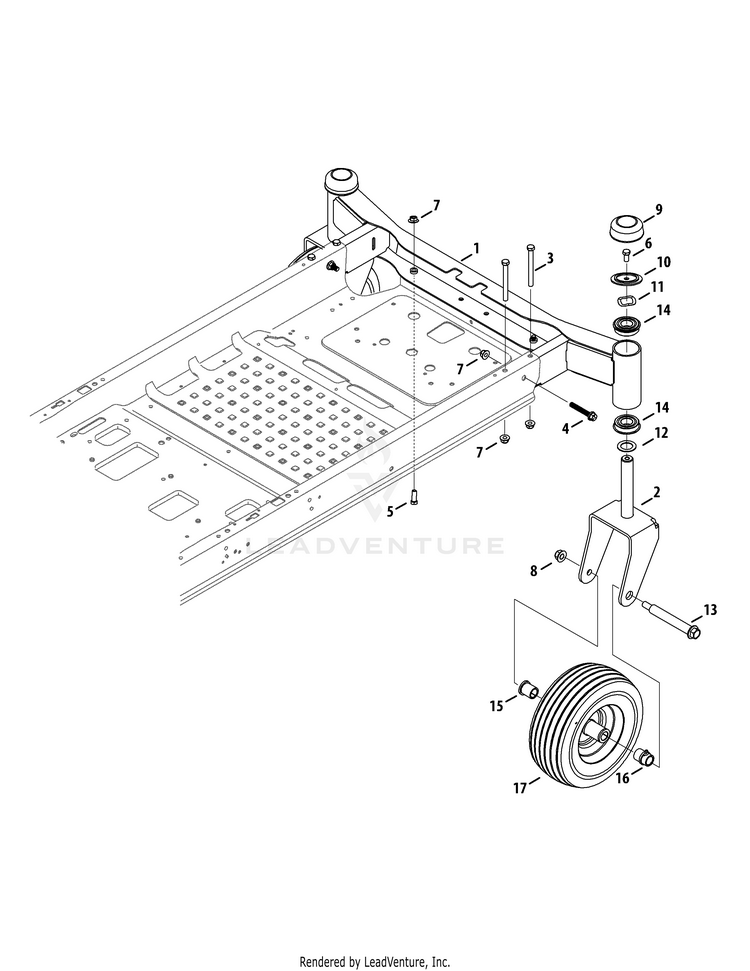

Front Axle 42-Inch

...
...
1
FRONT AXLE (MTD RED) MTD-603-05134-0638
...
2
CASTER WHEEL YOKE (MTD RED) MTD-603-05057D-0638
...
3
Hex Cap Screw, 3/8-16 x 3.75 MTD-710-04576
...
4
Hex Flange Screw, 3/8-16 x 2.00 MTD-710-06093
...
5
Hex Cap Screw, 3/8-16 x 1.00 MTD-710-0514
...
6
Hex Cap Screw, 3/8-16 x .750 MTD-710-3119
...
7
Flange Lock Nut, 3/8-16 MTD-712-04217
...
8
Flange Lock Nut, 1/2-13 MTD-712-04150
...
9
Cap MTD-731-09347
...
10
Shoulder Spacer, 2.50 x .200 MTD-738-05091
...
11
Wave Washer, 1.25 x 1.00 x .300 MTD-736-05033A
...
12
Flat Washer, 1.010 x 1.56 x .060 MTD-736-0745
...
13
SHOULDER BOLT .750X4.75X1/2-13 MTD-738-04182B
...
14
Ball Bearing MTD-941-05022A
...
15
Flange Bearing, .76 x 1.0 x 1.2 MTD-741-0516B
...
16
Flange Bearing, .76 ID w/Lube Ftg. MTD-741-0990B
...
17
Wheel Assembly, 11.0 x 4.0 x 5.0 MTD-634-04237C
