Troy-Bilt 17ARCACK011 Mustang 54 XP (2014) 17-Z Series

Model: 17ARCACK011 Mustang 54 XP (2014)

Back To Assemblies

Save Part Not Listed?
product name

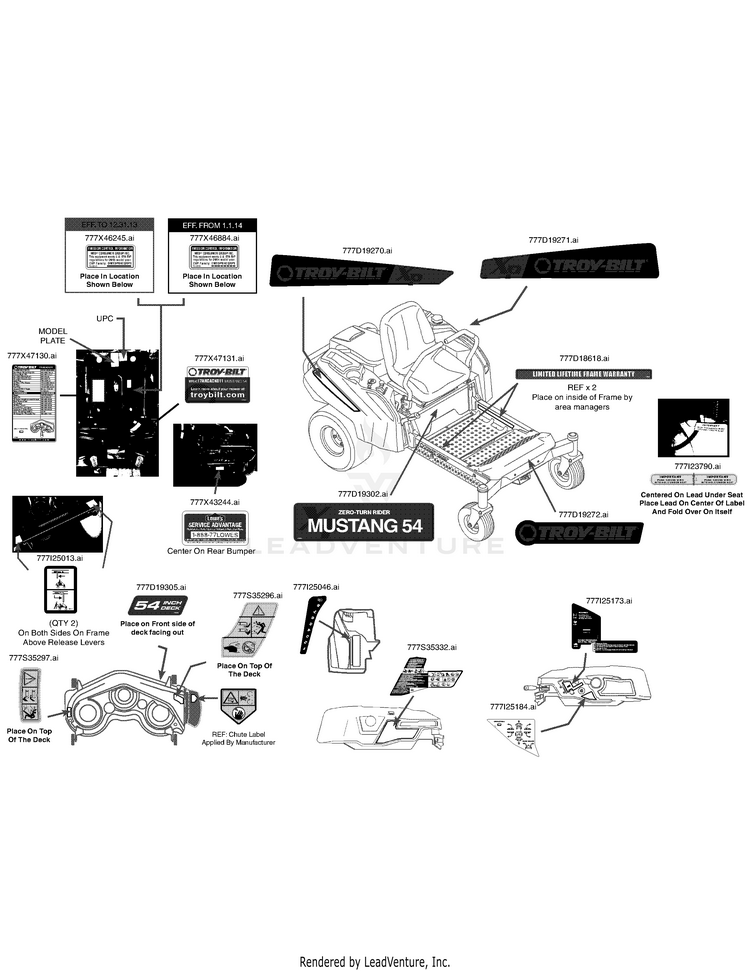

Label Map

...
...
777D19270
LABEL-RZT TROYBILT XP RIGHT POD MTD-777D19270
...
777D19271
LABEL-RZT TROYBILT XP LEFT POD MTD-777D19271
...
777D19272
LABEL-TROYBILT RED ON FLINT MICA MTD-777D19272
...
777D19302
LABEL-MUSTANG 54 ZTR SEAT FRAME MTD-777D19302
...
777D19305
LBL-54" DECK RED RZT-L MTD-777D19305
...
777I23790
LABEL-EXCESS WIRE TU MTD-777I23790
...
777I25013
LABEL-TRANSMSN RELEA MTD-777I25013
...
777I25046
LABEL-DECK HEIGHT MTD-777I25046
...
777I25184
LABEL-LAPBAR POSITIONS T-BILT MTD-777I25184
...
777S35332
LABEL-TROY RZT-S SAFETY MTD-777S35332
...
777X43244
LABEL-LOWE'S SERVICE ADVANTAGE MTD-777X43244
...
777X47130
LABEL-PARTS LIST T-BILT 17ARCACK011 MTD-777X47130
...
777I25173
LABEL-METER & THROT/CHK 2K14 T-BILT MTD-777I25173
...
777X46245
LABEL-RDR EMISSIONS 2013 MTD-777X46245
...
777X46884
LABEL-RIDER EMISSIONS 2014 MTD-777X46884
...
777S35296
LABEL-RIDER SAFETY CHUTE SIDE MTD-777S35296
...
777S35297
LABEL-RIDER SAFETY OFF SIDE MTD-777S35297
