Troy-Bilt 17ANDALD066 Mustang XP 60 (2017) 17-Z Series

Model: 17ANDALD066 Mustang XP 60 (2017)

Back To Assemblies

Save Part Not Listed?
product name

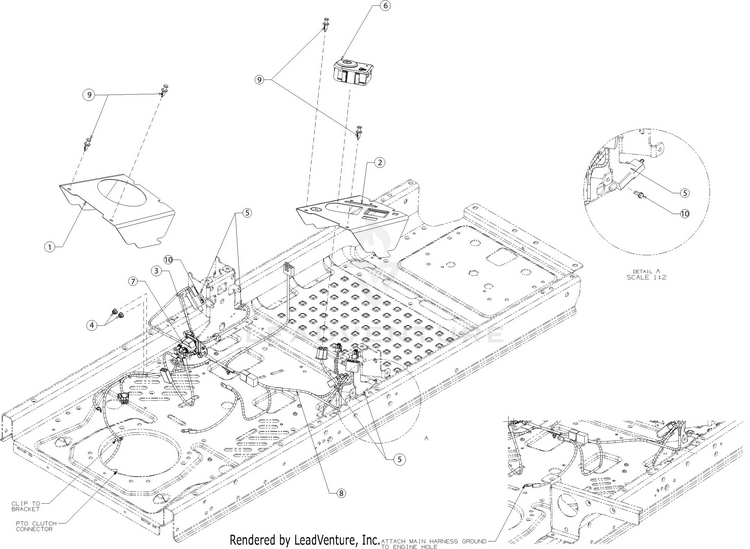

Electrical

...
...
1
CONSOLE COVER (LH) *CHOOSE COLOR WHEN ORDERING* MTD-703-09338A
...
2
CONSOLE COVER (RH) *CHOOSE COLOR WHEN ORDERING* MTD-703-09378A
...
3
SCREW 1/4-20X.625 MTD-710-1652
...
4
FLANGE LOCK NUT MTD-712-04064
...
5
INTERLOCK SWITCH (NO/NC) MTD-725-04363
...
6
IGNITION MODULE SWITCH (RMC ELC PTO WHTE) MTD-725-13425
...
7
12V SOLENOID MTD-725-06153A
...
8
HARNESS MTD-925-06284B
...
9
PLASTIC RIVET MTD-728-0199
...
10
SHOULDER SCREW MTD-738-04237A
