Troy-Bilt 17ANDALD066 Mustang XP 60 (2016) 17-Z Series

Model: 17ANDALD066 Mustang XP 60 (2016)

Back To Assemblies

Save Part Not Listed?
product name

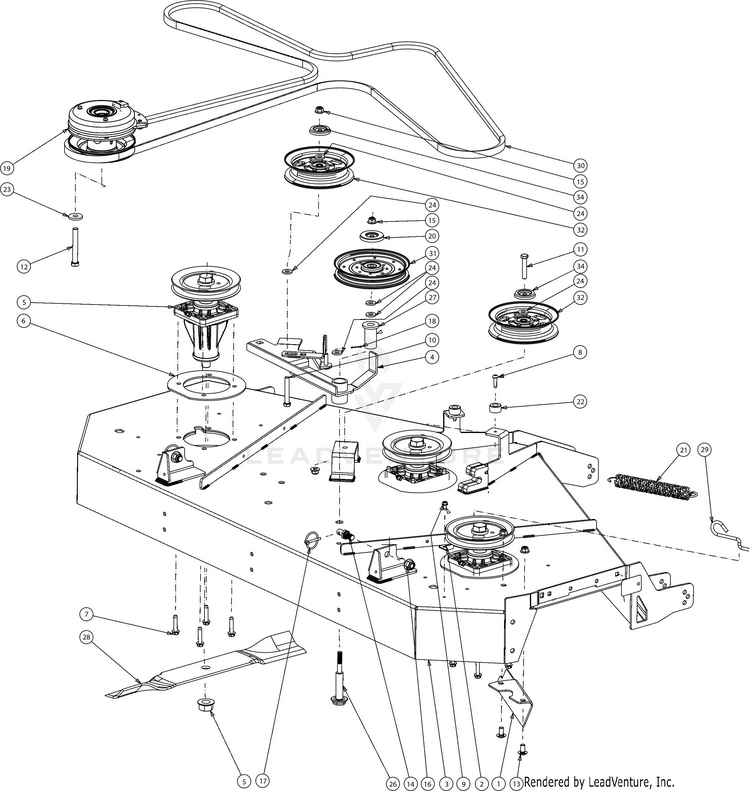

Deck Assembly

...
...
1
CHUTE BAFFLE MTD-02005195-0637
...
2
HOOK RETAINER BRACKET MTD-96606
...
3
60" FAB DECK SHELL (CUB YELLOW 2) MTD-903-05095C-4021
...
4
BELT GUARD BRACKET (Not Shown) MTD-703-09583-0637
...
4
54/60" DECK IDLER ASSEMBLY MTD-903-05266
...
5
SCREW 3/4-16 X 8.25 GR5 (Not Shown) MTD-710-06120
...
5
HEX FLANGE NUT 3/4 (Not Shown) MTD-712-3078
...
5
DECK SPINDLE SPACER (Not Shown) MTD-748-3065A
...
5
SPACER .812 ID X .218 LG (Not Shown) MTD-750-05553
...
5
SPACER (Not Shown) MTD-750-06139
...
5
SPACER (Not Shown) MTD-750-06145
...
5
V-PULLEY 6.107 DIA (Not Shown) MTD-756-04458A
...
5
SPINDLE ASSEMBLY MTD-918-06076A
...
5
GREASE FITTING (Not Shown) MTD-937-3000
...
5
Cone Bearing (Not Shown) MTD-941-04298
...
5
Cup Bearing (Not Shown) MTD-941-04299
...
6
SPINDLE REINFORCEMENT PLATE (POWDER BLACK) MTD-703-07787-0637
...
7
HEX SCREW WASHER 5/16-18 x 1.5 MTD-710-04605B
...
8
SCREW 1/4-20 X 1.0 MTD-710-05074
...
9
SCREW 1/4-20 X.500 MTD-710-0599
...
10
HEX SCREW-3/8-16X2.5 GR5 MTD-710-0859
...
11
SCREW 3/8-16 X 2.0 GR5 MTD-710-3144
...
12
SCREW 7/16-20 x 3.25 GR5 MTD-710-3157A
...
13
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
14
DECK PIN MTD-711-06200B
...
15
NUT MTD-712-04065
...
16
NUT MTD-712-04150
...
17
LYNCH PIN MTD-753-04070
...
18
COTTER PIN 3/32 MTD-914-0507
...
19
ELECTRIC PTO CLUTCH MTD-917-05192
...
20
PULLEY CAP MTD-721-04516
...
21
EXTENSION SPRING MTD-732-04927
...
22
BUMPER MTD-735-05147
...
23
FLAT WASHER .445 X 1.248 X .170 MTD-736-0322
...
24
Flat Washer, .406 x .875 x .105 MTD-736-3004
...
26
SHOULDER BOLT MTD-738-05049A
...
27
SHOULDER SPACER MTD-741-05056
...
28
21 BLADE (HI LIFT)" MTD-942-04415
...
28
GENUINE FACTORY PARTS® 60" High-Lift Blade 742-04415 Retail Packaged Part MTD-490-110-F163
...
28
21" BLADE (HI LIFT) MTD-742-04415-ES
...
28
LOW-LIFT 21"BLADE (60"DECK) MTD-742P04415-L
...
28
BLADE- HI LIFT 21.0 XTREME MTD-02005019P-X
...
28
21" XTREME BLADE MTD-01005381P-X
...
28
21" XTREME BLADE MTD-01005381P-X
...
29
DECK SPRING HOOK MTD-747-05608A
...
30
DECK BELT B X 161.75 MTD-954-05015
...
30
Cub Cadet DECK BELT (B x 161.75) Retail Packaged Part MTD-490-501-C076
...
31
IDLER PULLEY MTD-756-04487
...
32
IDLER PULLEY 5.0" DIA MTD-756-05053A
...
34
IDLER PULLEY CAP MTD-783-08389
