Troy-Bilt 17ANDALC011 Mustang XP 54 (2017) 17-Z Series

Model: 17ANDALC011 Mustang XP 54 (2017)

Back To Assemblies

Save Part Not Listed?

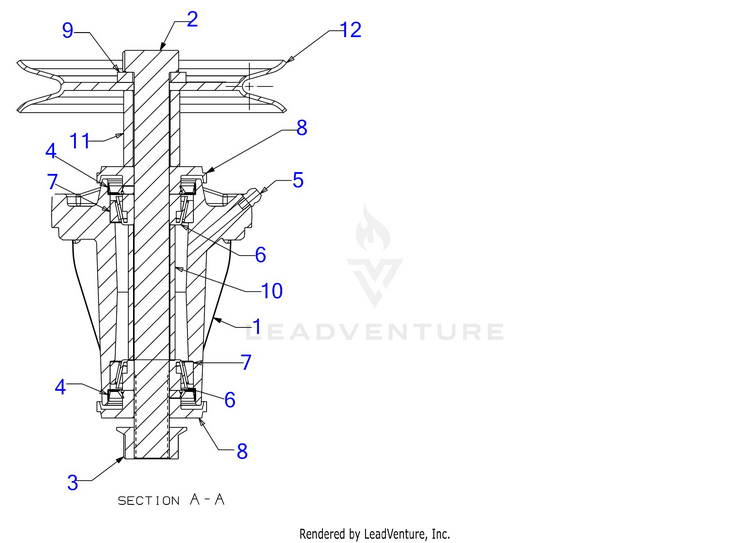

product name

Spindle

...
...
1
Not Serviceable MTD-NOT SERVICEABLE
...
2
SCREW 3/4-16 x 8.25 GR5 MTD-710-06120
...
3
HEX FLANGE NUT 3/4 MTD-712-3078
...
4
SINGLE LIP SEAL MTD-921-3018A
...
5
GREASE FITTING MTD-937-3000
...
6
Cone Bearing MTD-941-04298
...
7
Cup Bearing MTD-941-04299
...
8
DECK SPINDLE SPACER MTD-748-3065A
...
9
SPACER .812 ID x .218 LG MTD-750-05553
...
10
SPACER MTD-750-06139
...
11
SPACER MTD-750-06145
...
12
V-PULLEY 5.768 DIA MTD-756-04459A
...
xx
BLADE SPINDLE ASSEMBLY (W/PULLEY) MTD-918-06993A
