Troy-Bilt 17ANDALC011 Mustang XP 54 (2017) 17-Z Series

Model: 17ANDALC011 Mustang XP 54 (2017)

Back To Assemblies

Save Part Not Listed?
product name

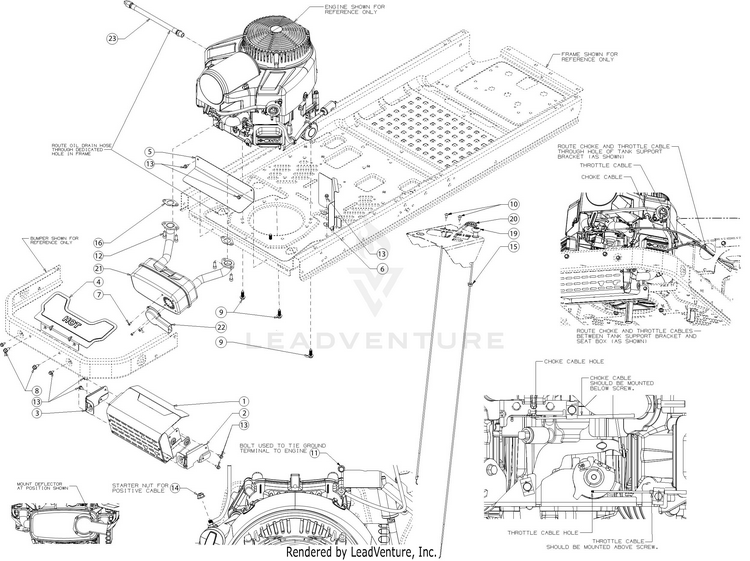

Engine Accessories

...
...
1
MUFFLER SHIELD W/EXTENSION *CHOOSE COLOR WHEN ORDERING* MTD-603-05156C
...
2
MUFFLER SHIELD BRACKET (RH) *CHOOSE COLOR WHEN ORDERING* MTD-703-08671B
...
3
MUFFLER SHIELD BRACKET (LH) *CHOOSE COLOR WHEN ORDERING* MTD-703-08695A
...
4
MUFFLER HEAT SHIELD *CHOOSE COLOR WHEN ORDERING* MTD-703-09083
...
5
LOWER HEAT SHIELD MTD-703-09195
...
6
ENGINE HEAT SHIELD MTD-703-09611A
...
7
HEX SCREW WASHER HD #8-18 x 0.500 MTD-710-0227
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
SCREW 3/8-16 x 1 MTD-710-04683C
...
10
SCREW 1/4-20 x .5 MTD-710-05070A
...
11
SCREW 1/4-20 X.500 MTD-710-0599
...
12
SCREW M8X1.25 MTD-712-3086
...
13
SCREW 1/4-20X.625 MTD-710-1652
...
14
FLANGE LOCK NUT MTD-712-04064
...
15
Flange Lock Nut 3/8-16 MTD-712-3005
...
16
MUFFLER GASKET MTD-721P0460
...
19
CHOKE CABLE 47" MTD-746-04235
...
20
THROTTLE CABLE 36" MTD-946-05256A
...
21
EXHAUST MUFFLER (B&S)(TWIN) MTD-951-10542E
...
22
EXHAUST DELECTOR (LONG) MTD-751-11053B
...
23
OIL DRAIN HOSE (11.37" 3/8x1/4 NPT) MTD-751-15324B
