Troy-Bilt 17ANDALC011 Mustang XP 54 (2017) 17-Z Series

Model: 17ANDALC011 Mustang XP 54 (2017)

Back To Assemblies

Save Part Not Listed?
product name

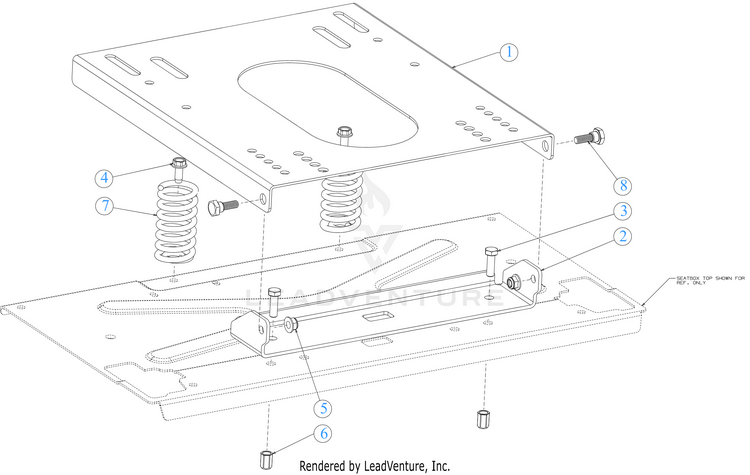

Seat Adjustment

...
...
1
SEAT PLATE DUAL KNOB BASE *CHOOSE COLOR WHEN ORDERING* MTD-703-09603A
...
2
SEAT PIVOT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-703-09633
...
3
SCREW 5/16-18 X 1.00 GR5 MTD-710-0643
...
4
SCREW 5/16-18 X .750 MTD-710-1260A
...
5
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
6
NUT RIVET 5/16-18 MTD-728-04068
...
7
COMPRESSION SPRING MTD-732-04508
...
8
Shoulder Screw, .437 x .286 MTD-738-0296
