Troy-Bilt 17AF2ACP766 Mustang RZT 50 (2007) 17-Z Series

Model: 17AF2ACP766 MUSTANG RZT 50 (2007)

Back To Assemblies

Save Part Not Listed?
product name

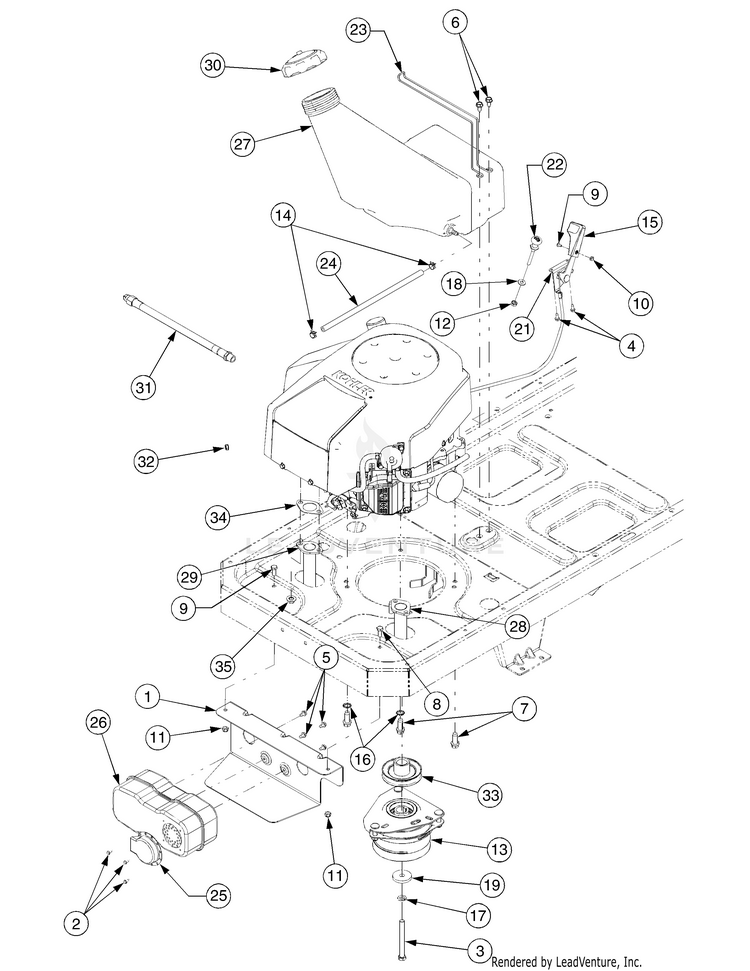

Engine Connections

...
...
1
Bracket, Muffler Mounting MTD-703-05441A
...
2
Screw, Hex Wash. Hd. Tapp #8-18 x .5 MTD-710-0227
...
3
Screw, Hex Cap, 7/16-20 x 4.0 GR5 MTD-710-04248
...
4
Screw, Hex Wash. Hd. Tapp #12-16 x .5 MTD-710-04261
...
5
Screw, Hex Wash. Hd. Tapp 1/4-20 x .5 MTD-710-0599
...
6
Screw, Hex Wash. Hd. Tapp 5/16-12 x .75 MTD-710-0726
...
7
Screw, Hex Wash. Hd. Tapp Sems 3/8-16 x 1.0 MTD-710-0654A
...
8
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
9
Screw, Truss Hd. Mach. #8-32 x .375 MTD-710-3217
...
10
Nut, Hex, #8-32 MTD-712-0142
...
11
Nut, Hex Insert Lock, 5/16-18 GR5 .. MTD-712-0429
...
12
Nut, Hex Jam, 3/8-16 GR2 MTD-712-3005
...
13
Electric PTO Clutch NOTE:917-04622<BR/> Clutch will work as a replacement for the 717-04183, A shorter 7/16-20 x<BR/> 3.75" retaining bolt (710-1049) is required when mounting the 917-04622 MTD-917-04622
...
13
SCREW 7/16-20 x 3.75 GR5 Required for 917-04622 Clutch<BR/> Replacement MTD-710-1049
...
13
Tie, Clutch Wire Not shown MTD-726-0197
...
14
Clamp, Hose MTD-726-0205
...
15
Knob, Throttle Control MTD-731-04914
...
16
Washer, External Tooth Lock, 3/8 MTD-736-0148
...
17
Washer, Lock, 7/16 MTD-736-0171
...
18
Washer, Flat, .406 x .875 x .059 MTD-736-0300
...
19
Washer, Flat, .438 x 1.75 x .25 MTD-736-04131
...
21
34.25" x .62 THROTTLE CABLE MTD-946-04066
...
22
Choke Cable MTD-946-04214
...
23
FUEL TANK MOUNTING WIRE MTD-747-04228A
...
24
Hose, Fuel Line 10 Inches MTD-751-10349-13
...
25
Deflector, Muffler MTD-751-0564B
...
26
MUFFLER (DUAL INLET) MTD-951-0616B
...
27
Fuel Tank MTD-751-10057D
...
28
Pipe, Exhaust RH MTD-751-10254
...
29
Pipe, Exhaust LH MTD-751-10253
...
30
Fuel Cap MTD-951-3124E
...
31
OIL DRAIN HOSE W/VIBRA SEAL MTD-751-10291D
...
32
Nut, Hex Sems, 1/4-20 MTD-712-0271
...
33
Pulley, Drive MTD-756-0978B
...
34
Gasket, Muffler MTD-KH-20-041-12-S
Schematic Image Zoomed
