Troy-Bilt 17AF2ACP766 Mustang RZT 50 (2007) 17-Z Series

Model: 17AF2ACP766 MUSTANG RZT 50 (2007)

Back To Assemblies

Save Part Not Listed?
product name

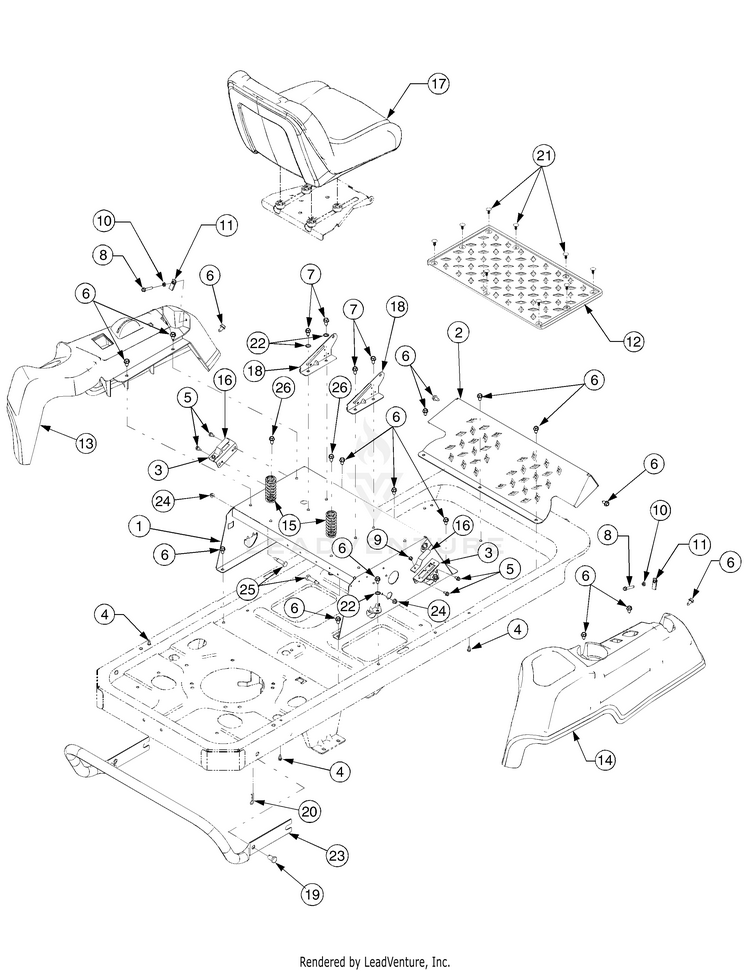

Operator's Platform

...
...
1
SEAT BOX FRAME MTD-603-04326B
...
1
LABEL-RDR SFTY SEAT BOX T-BILT RZT MTD-777S32821
...
2
FOOT REST BRACKET MTD-703-05373B
...
2
LABEL-HOOD FRNT TORO MTD-777D10174
...
2
LABEL-RZT AXLE PIVOT TROY-BILT RZT MTD-777D10711
...
3
SWITCH MOUNTING BRACKET MTD-703-05467
...
4
Screw, Hex Wash. Hd Tapp #12-16 x .50 MTD-710-04261
...
5
Screw, Hex Wash. Hd. Tapp. 1/4-20 x .50 MTD-710-0599
...
6
Screw, Hex Wash. Hd. Tapp 5/16-18 x .625 MTD-710-0604A
...
7
Screw, Hex Wash. Hd. Tapp 5/16-12 x .75 MTD-710-0726
...
8
Screw, Hex Wash. Hd. Tapp.1/4-20 x 1.5 MTD-710-0778
...
9
Screw, Hex Wash. Hd Tapp #10-16 x .375 MTD-710-1268
...
10
Jam Nut, 1/4-20 MTD-912-0298
...
11
Nut, U Type Speed, 1/4-20 MTD-712-04092
...
12
Foot Pad MTD-735-04082C
...
13
CONSOLE (LH) MTD-731-04662E
...
13
LABEL (LH) CONTROL W/CHOKE RZT MTD-777I22751
...
13
LABEL (LH) POD TROY-BILT RZT MTD-777D10713
...
13
LABEL-THROTTLE MTD-977I22309
...
14
CONSOLE (RH) MTD-731-04663D
...
14
LABEL (RH) CONTROL MTD-777I22754
...
14
LABEL (LH) POD TROY-BILT RZT MTD-777D10712
...
15
Spring, Compression, 1.28 x 3.125 MTD-732-04035
...
16
Spring, Switch Actuator MTD-732-04200
...
17
HIGH BACK SEAT MTD-957-04010
...
18
Bracket, Seat Pivot MTD-783-1489C
...
19
Clevis Pin, .50" Dia. MTD-911-0332
...
20
Pin, Internal Cotter MTD-714-04023
...
21
Clip, Ratchet MTD-726-3046
...
22
Washer, External Tooth, 3/8 MTD-736-0148
...
23
REAR BUMPER MTD-749-04358
...
24
Nut, Hex Insert Lock, 1/4-20 MTD-712-04064
...
25
SHOULDER SCREW MTD-738-0572
...
26
Screw, Hex Wash. Hd. Tapp 5/16-18 x .75 MTD-710-1260A
