Troy-Bilt 17AF2ACP766 Mustang RZT 50 (2007) 17-Z Series

Model: 17AF2ACP766 MUSTANG RZT 50 (2007)

Back To Assemblies

Save Part Not Listed?
product name

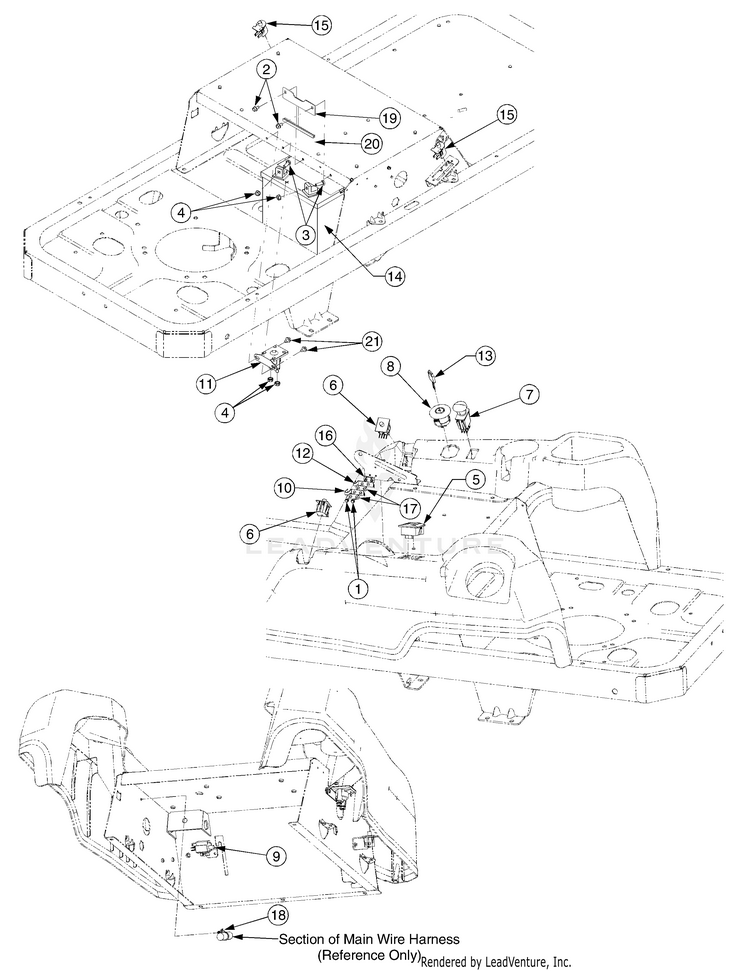

Electrical

...
...
1
Screw, Hex Wash. Hd. Tapp #8-18 x .5 MTD-710-0227
...
2
Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5 MTD-710-0599
...
3
Screw, Hex Cap, 1/4-20 x .75 GR5 MTD-710-3015
...
4
Nut, Hex Sems, 1/4-20 MTD-712-0271
...
5
Hour Meter/Service Minder MTD-925-04022B
...
6
Double Pole Neutral Switch MTD-925-04165
...
7
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
...
8
Key Switch MTD-925-04228
...
9
Switch, 3-Pole, (NC-NO-NO) - Brake MTD-725-04232
...
10
Outer Seat SPring MTD-925-1303
...
11
Solenoid, 12-Volt, 100 Amp MTD-925-1426A
...
12
Switch, Inner Seat Spring MTD-725-1439
...
13
IGNITION KEYS MTD-925-1745A
...
14
BATTERY MTD-925-1707D
...
15
Switch MTD-925-3166
...
16
Plate, Insulator Boss MTD-726-0278
...
17
Plate, Insulator MTD-726-0279
...
18
Tie, Cable MTD-726-0470
...
19
Battery Hold-Down Bracket MTD-703-05894-0637
...
20
Strip, Trim 4.5 Inches MTD-731-0511-5
...
21
Screw, Hex Wash. Hd. Tapp, 1/4-20 x .375 MTD-710-0653
...
xx
Harness Assembly, Wire Not Shown MTD-725-04434
