Troy-Bilt 17AF2ACP711 Mustang RZT 50 (2007) 17-Z Series

Model: 17AF2ACP711 MUSTANG RZT 50 (2007)

Back To Assemblies

Save Part Not Listed?
product name

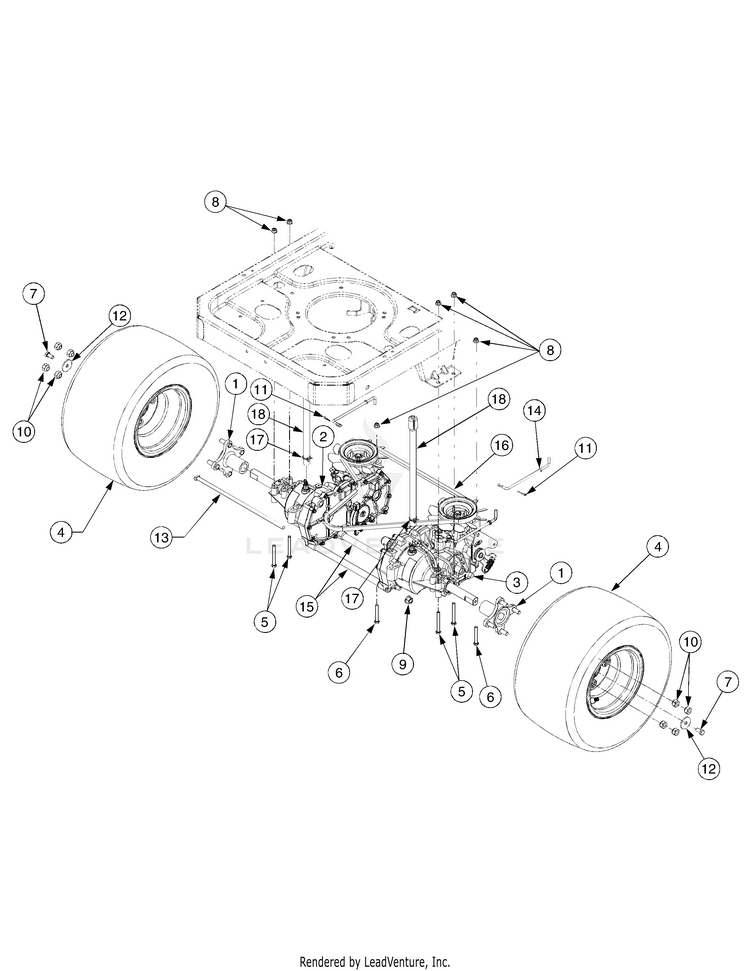

Hydro Transmission & Rear Wheels

...
...
1
Wheel Assembly Hub Double D MTD-918-04317
...
1
Stud, Rib Neck, 7/16-14 x1.6 Not shown MTD-710-0852
...
2
TRANSMISSION (LH) Before Production Date A267 MTD-918-04431B
...
2
TRANSMISSION (LH) Production Date A267 & After-Replaces 618-04431 MTD-918-04431B
...
2
Neutral Return Spring Not shown MTD-732-04448
...
3
TRANSMISSION (RH) Before Production Date A267 MTD-918-04432B
...
3
TRANSMISSION (RH) Production Date A267 & After-Replaces 618-04432 MTD-918-04432B
...
3
Neutral Return Spring Not shown MTD-732-04448
...
4
Wheel Assembly, 18 x 9.5-8 (50" Deck) MTD-634-04128-0911
...
4
TIRE-18X9.5-8 SQ SH Not shown MTD-734-1729-0901
...
4
TUBELESS VALVE Not shown MTD-934-0255
...
4
REAR RIM Not shown MTD-603-04175
...
5
Screw, Hex Cap, 5/16-18 x 2.75 MTD-710-0176
...
6
Screw, Hex Cap, 5/16-18 x 2.25 MTD-710-0395
...
7
Screw, Hex Cap Lock, 3/8-16 x .75 GR5 MTD-710-3119
...
8
Nut, Hx Flnge Insert Lck, 5/16-18 GrF MTD-712-04063
...
9
Nut, Hex Flange Lock, 7/16-20 GrB MTD-712-0459
...
10
Nut, Lug, 7/16-14 MTD-712-3050
...
11
Pin, Cotter, 3/32 x .75 MTD-714-0507
...
12
Washer, Flat, .39 x 1.5 .134 MTD-736-0227
...
13
Rod, .405 x 14.0 MTD-738-04192B
...
14
Bypass Rod MTD-747-04217C-0637
...
15
SUPPORT TUBE MTD-750-04561A
...
16
TRANSMISSION DRIVE BELT A x 57.3 MTD-954-04043B
...
17
HOSE CLAMP .75 Used ONLY with 618-04431 & 618-04432 Trans. MTD-726-04059
...
18
Hose, Breather Used ONLY with 618-04431 & 618-04432 Trans. MTD-751-10474
