Troy-Bilt 17AF2ACP011 Mustang RZT 50 (2008) 17-Z Series

Model: 17AF2ACP011 MUSTANG RZT 50 (2008)

Back To Assemblies

Save Part Not Listed?
product name

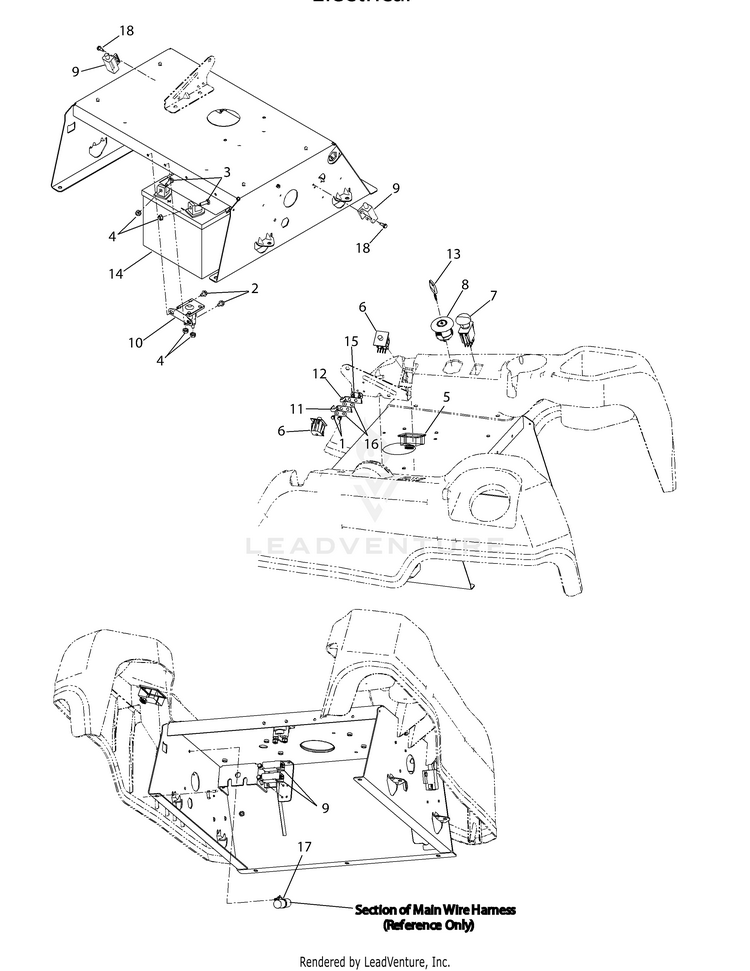

Electrical

...
...
1
Screw, Hex Wash. Hd. Tapp, #8-18 x .5 MTD-710-0227
...
2
Screw, Hex Wash. Hd. Tapp, 1/4-20 x .375 MTD-710-0653
...
3
Screw, Hex Cap, 1/4-20 x .75 GR5 MTD-710-3015
...
4
Nut, Hex Sems, 1/4-20 MTD-712-0271
...
5
Hour Meter/Service Minder MTD-925-04022B
...
6
Double Pole Neutral Switch MTD-925-04165
...
7
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
...
8
Key Switch MTD-925-04228
...
9
Switch, Interlock, (NO/NC) - Brake/Rev MTD-725-04363
...
10
12V SOLENOID MTD-725-04439B
...
11
Outer Seat SPring MTD-925-1303
...
12
Switch, Inner Seat Spring MTD-725-1439
...
13
IGNITION KEYS MTD-925-1745A
...
14
BATTERY MTD-925-1707D
...
15
Plate, Insulator Boss MTD-726-0278
...
16
Plate, Insulator MTD-726-0279
...
17
Tie, Cable MTD-726-0470
...
18
Screw, Shoulder, #10-32 x .5 MTD-738-04237A
...
xx
Wiring Harness Not shown MTD-925-04621A
