Troy-Bilt 17AF2ACP011 Mustang RZT 50 (2008) 17-Z Series

Model: 17AF2ACP011 MUSTANG RZT 50 (2008)

Back To Assemblies

Save Part Not Listed?
product name

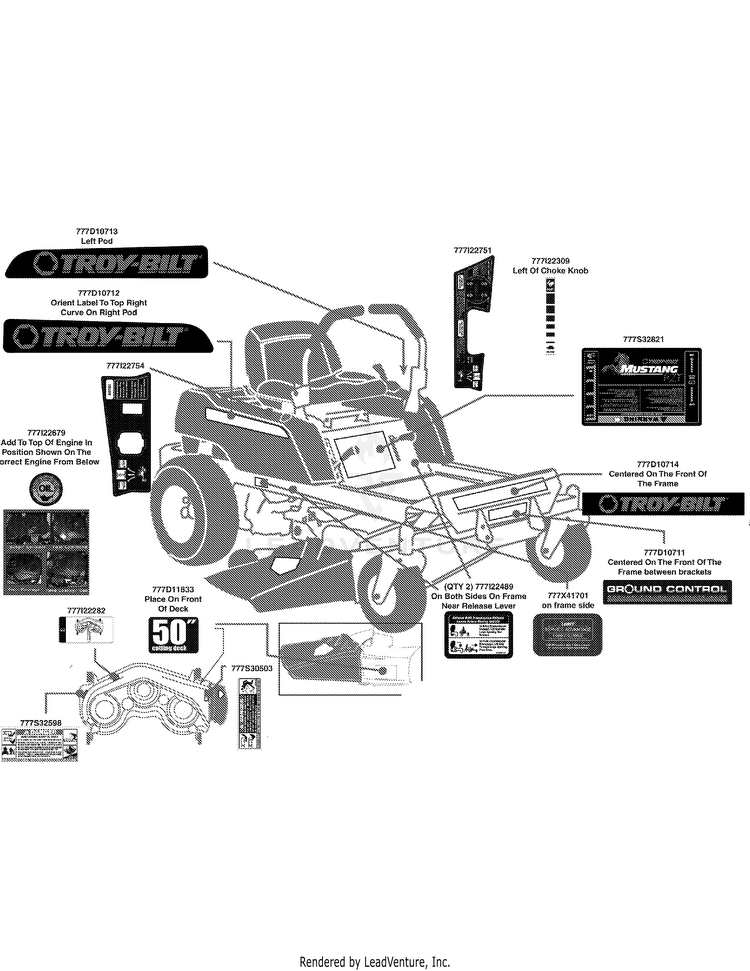

Label Map

...
...
777D10713
LABEL (LH) POD TROY-BILT RZT MTD-777D10713
...
777D10712
LABEL (LH) POD TROY-BILT RZT MTD-777D10712
...
777I22754
LABEL (RH) CONTROL MTD-777I22754
...
777I22679
LABEL-CHECK ENG OI MTD-777I22679
...
777I22282
LABEL-BELT ROUTE MTD-977I22282
...
777S32598
LABEL-RZT DECK WARNG STRAIGHT MTD-777S32598
...
777D11833
LABEL-RIDER DECK TROY 50" MTD-777D11833
...
777S30503
LABEL-DANGER CHUTE MTD-777S30503
...
777I22489
LABEL-TRNMSN RELEASE RZT MTD-777I22489
...
777X41701
LABEL MTD-777X41701
...
777D10711
LABEL-RZT AXLE PIVOT TROY-BILT RZT MTD-777D10711
...
777D10714
LABEL-FRONT FRAME TROY-BIL MTD-777D10714
...
777S32821
LABEL-RDR SFTY SEAT BOX T-BILT RZT MTD-777S32821
...
777I22309
LABEL-THROTTLE MTD-977I22309
...
777I22751
LABEL (LH) CONTROL W/CHOKE RZT MTD-777I22751
