Troy-Bilt 17AF2ACP011 Mustang RZT 50 (2008) 17-Z Series

Model: 17AF2ACP011 MUSTANG RZT 50 (2008)

Back To Assemblies

Save Part Not Listed?
product name

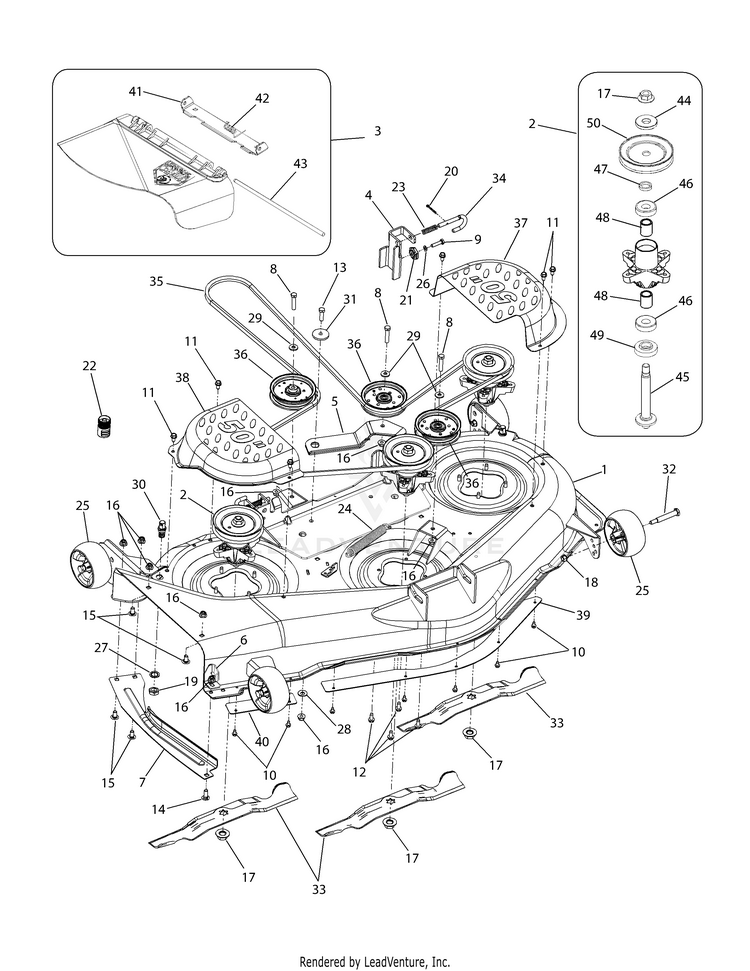

Mower Deck

...
...
1
50" DECK SHELL MTD-603-04328A
...
1
Graphic, Danger Not shown MTD-777S32598
...
1
Graphic, Danger Not shown MTD-777S30503
...
1
LABEL-BELT ROUTE Not shown MTD-977I22282
...
1
LABEL-RIDER DECK TROY 50" Not shown MTD-777D11833
...
2
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG MTD-918-04125C
...
3
Discharge Chute MTD-631-04070C
...
3
Danger Label Not shown MTD-977S30145
...
4
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
5
Arm, Idler MTD-703-05825B
...
6
Bracket, Stop MTD-703-3279
...
7
Finger Guard MTD-703-3511B-0637
...
8
Screw, Hex Cap, 3/8-16 x 1.75 GR5 MTD-710-0347
...
9
Screw, Hex Cap, 5/16-18 x 1.25 GR5 MTD-710-0528
...
10
Screw, Hex Wash. Hd. Tapp,1/4-20 x .5 MTD-710-0599
...
11
Screw, Hex Wash. Hd. Tapp, 5/16-12 x .75 MTD-710-0726
...
12
Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75 MTD-710-1260A
...
13
Screw, Hex Cap, 3/8-16 x 1.25 GR5 MTD-710-3005
...
14
Screw, Carriage, 3/8-16 x 1.0 MTD-710-3168
...
15
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
16
Nut, Hx Insert Flange Lck, 3/6-16 GrF MTD-712-04065
...
17
HEX NUT MTD-712-0417A
...
18
Hex Flange Nut 3/8-16 MTD-912-0431
...
19
Nut, Hex, M16-1.5 MTD-712-0641
...
20
Pin, Cotter, 1/8 x 1.25 MTD-714-0470
...
21
Adjustment, Deck, Gear MTD-917-04074
...
22
WATER NOZZLE MTD-921-04041
...
23
COMPRESSION SPRING MTD-932-0306A
...
24
Spring, Extension, .94 Dia x 6.74 MTD-732-0459C
...
25
Wheel, Deck Ball, 5.0 MTD-734-04155
...
26
LOCK WASHER 5/16 MTD-936-0119
...
27
Washer, Bell, .45 x 1.0 x .062 MTD-736-0407
...
28
Washer, Internal Tooth Lock, 5/8 MTD-736-0225
...
29
Washer, Flat, .38 x .93 x .110 HT MTD-736-3072
...
30
DECK WASH NOZZLE MTD-737-04003D
...
31
Shoulder Spacer, .8840 x .190 MTD-738-04162C
...
32
Shoulder Screw, 1/2 Dia x 2.50 MTD-938-3056
...
33
BLADES MTD-942-04053C
...
34
Rod, Deck Hanger MTD-747-1116
...
35
DECK SPINDLE BELT MTD-954-04044A
...
36
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
37
Cover, Belt LH MTD-783-04399
...
38
Cover, Belt RH MTD-783-04400
...
39
Deck Skirt, Center MTD-783-04414A
...
40
Skirt, RH MTD-783-04415
...
41
Bracket, Chute Mounting MTD-783-05030
...
42
Spring, Torsion MTD-732-04372
...
43
Pin, Hinge MTD-711-04565
...
44
Washer, Flat, .76 x 1.50 x .12 MTD-736-0315
...
45
Shaft, Spindle, 5.75 MTD-738-1010A
...
46
BALL BEARING MTD-741P0919B
...
47
Spacer, .79 x 1.25 x .175 MTD-748-0160A
...
48
Spacer, .80 x 1.10 x 1.32 MTD-750-1000
...
49
Spacer, .79 x 1.82 x .55 MTD-750-1349A
...
50
Pulley, V Type, 5.39 MTD-756-04216
