Troy-Bilt 17AF2ACP011 Mustang RZT 50 (2008) 17-Z Series

Model: 17AF2ACP011 MUSTANG RZT 50 (2008)

Back To Assemblies

Save Part Not Listed?
product name

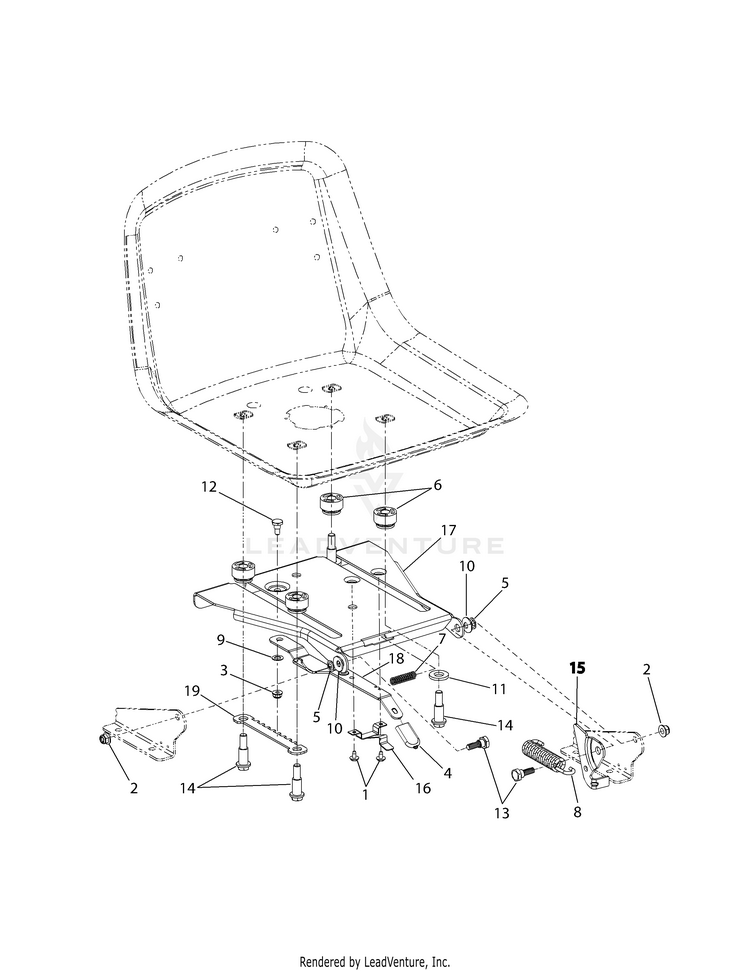

Seat Adjustment

...
...
1
Screw, Hx. Wash. Hd. Tapp #10-16 x .375 MTD-710-1268
...
2
Nut, Hx Insert Flange Lck, 5/16-18 GrF MTD-712-04063
...
3
Nut, Hx Insert Flnge Lck, 1/4-20 GrF MTD-712-04064
...
4
Grip, Seat Adjustment MTD-720-0309A
...
5
Nut, Speed, .3125 MTD-726-0201
...
6
Spacer, Seat Adjustment MTD-731-04074
...
7
Spring, Compression, .41 x 1.5 MTD-732-0499
...
8
Spring, Extension, .84 Dia. x 4.6 MTD-732-1184
...
9
Washer, Flat, .344 x .62 x .033 MTD-736-0204
...
10
Washer, Belleville, .34 x .872 x .06 MTD-736-0242
...
11
Washer, Flat, .531 x 1.062 x .134 HT MTD-736-3019
...
12
Screw, Shoulder, .34 x .285:1/4-20 MTD-738-0137A
...
13
Screw, Shoulder, .437 x .268:5/16-18 MTD-738-0296
...
14
Screw, Shoulder, .5 x .925:3/8-16 MTD-738-0966A
...
15
Bracket, Seat Lift MTD-783-0209D
...
16
Stop, Seat Adjustment MTD-783-0611
...
17
SEAT PIVOT BRACKET MTD-783-0738D
...
18
SEAT ADJUSTMENT LEVER MTD-783-0739A-0637
...
19
Index Bracket, Seat Adjustment MTD-783-0753
