Troy-Bilt 17AF2ACP011 Mustang RZT 50 (2008) 17-Z Series

Model: 17AF2ACP011 MUSTANG RZT 50 (2008)

Back To Assemblies

Save Part Not Listed?
product name

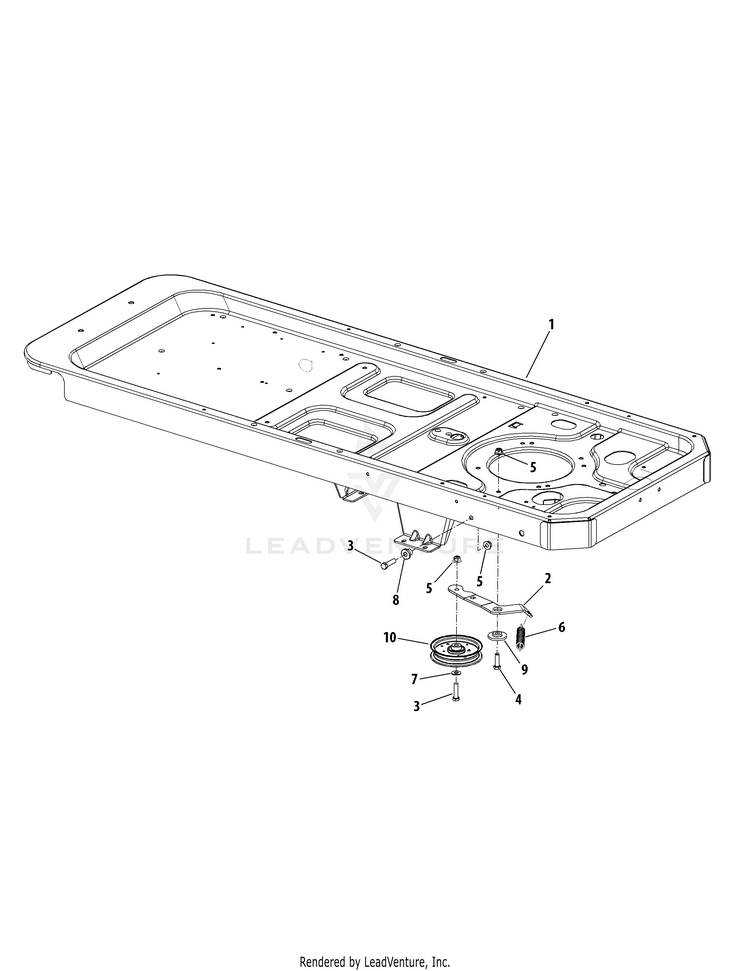

Frame

...
...
1
Frame MTD-603-04303D
...
2
Arm, Idler MTD-703-05829
...
3
Screw, Hex Cap, 3/8-16 x 1.5 Gr5 MTD-710-0520
...
4
Screw, Hex Cap, 3/8-16 x 1.25 Gr5 MTD-710-3005
...
5
Nut, Hex Flange Lock, 3/8-16 GrF MTD-712-04065
...
6
Spring, Extension, .75 x 5.06 MTD-732-0626
...
7
Washer, Flat, .406 x .875 x.059 MTD-736-0300
...
8
Spacer, Shoulder, .38 x 1.0 x .7 MTD-738-04058
...
9
Shoulder Spacer, .8840 x .190 MTD-738-04162C
...
10
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
