Troy-Bilt 17AE2ACG211 Mustang COLT RZT 42 (2008) 17-Z Series

Model: 17AE2ACG211 MUSTANG COLT RZT 42 (2008)

Back To Assemblies

Save Part Not Listed?
product name

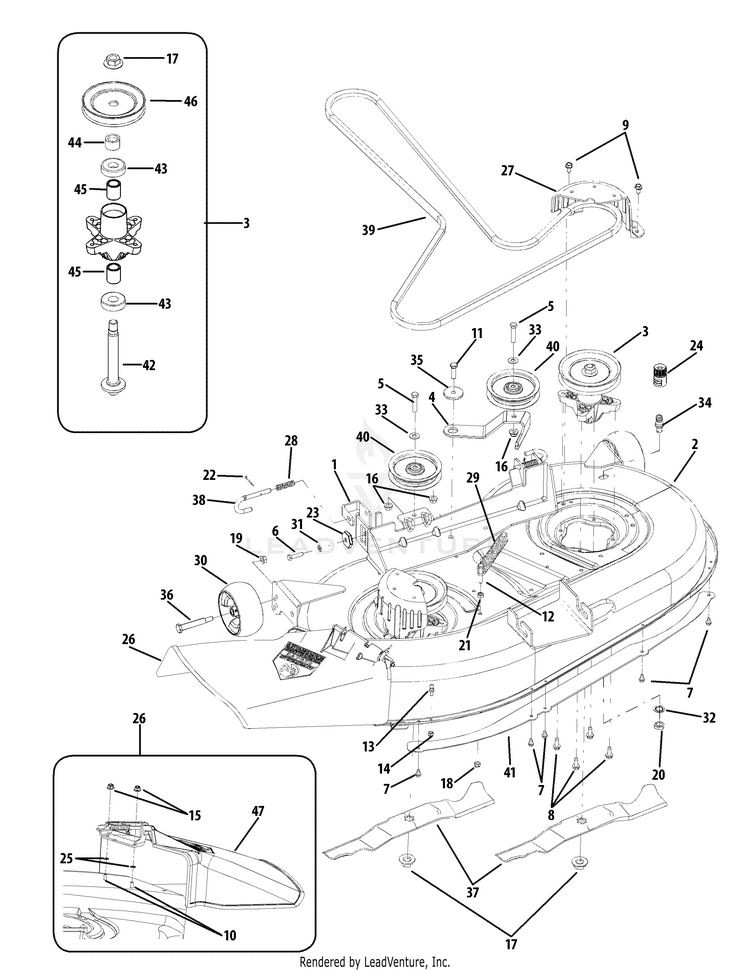

Mower Deck

...
...
1
Deck Lift Bracket MTD-603-04156
...
2
Deck Housing MTD-903-04335C
...
3
PULLEY & SPINDLE ASSEMBLY 6.3" W/O FTG MTD-918-0624B
...
4
Idler Arm MTD-703-05824C-0691
...
5
Hex Cap Screw, 3/8 -16 x 1.75 MTD-710-0347
...
6
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528
...
7
Hex Washer Head Screw, 1/4-20 x .5 MTD-710-0599
...
8
Hex Washer Head Screw, 5/16-18 x .75 MTD-710-1260A
...
9
Hex Washer Head Screw, 5/16-12 x .75 MTD-710-0726
...
10
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
11
Hex Cap Screw, 3/8-16 x 1.25 MTD-710-3005
...
12
Hex Cap Screw, 5/16-18 x 1.75 MTD-710-3180
...
13
Grass-catcher Pin MTD-911-04069
...
14
Hex Insert Lock Nut, 1/4-20 MTD-712-0324
...
15
Hex Insert Flange Lock Nut, 1/4-20 MTD-712-04064
...
16
Hex Insert Flange Lock Nut, 3/8-16 MTD-712-04065
...
17
HEX NUT MTD-712-0417A
...
18
Hex Insert Lock, 5/16-18 MTD-712-0429
...
19
Hex Flange Nut 3/8-16 MTD-912-0431
...
20
Hex Nut, M16-1.5 MTD-712-0641
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Cotter Pin, 1/8 x 1.25 MTD-714-0470
...
23
Adjustment, Deck, Gear MTD-917-04074
...
24
WATER NOZZLE MTD-921-04041
...
25
Push Nut, .25 x .5 MTD-726-0233
...
26
CHUTE ASSEMBLY MTD-631-05229
...
27
Belt Cover MTD-731-2231B
...
28
COMPRESSION SPRING MTD-932-0306A
...
29
Spring, Extension, .94 Dia x 6.74 MTD-732-0459C
...
30
Deck Ball Wheel, 5.0 MTD-734-04155
...
31
LOCK WASHER 5/16 MTD-936-0119
...
32
Lock Washer MTD-736-0225
...
33
Flat Washer, .38 x .93 x .11 MTD-736-3072
...
34
DECK WASH NOZZLE MTD-737-04003D
...
35
Shoulder Spacer, .8840 x .190 MTD-738-04162C
...
36
Shoulder Screw, 1/2 Dia x 2.50 MTD-938-3056
...
37
Blade, 3 in 1, 21.23 MTD-942-0616A
...
38
Deck Hanger Rod MTD-747-1116
...
39
Belt (Deck Spindle) MTD-954-04137B
...
40
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
41
42" Deck Skirt MTD-753-0884
...
42
Spindle Shaft, 5.75 MTD-738-1010A
...
43
BALL BEARING MTD-741P0919B
...
44
Spacer, .820 x 1.15 x .73 MTD-748-0433
...
45
Spacer, .8 x 1.10 x 1.322 MTD-750-1000
...
46
Pulley, Deck, 6.3 Dia MTD-956-1227
...
47
Chute Deflector Order Ref. No. 26 MTD-NA
